- Part number
- 1SVR405613R3000
- Model no
- CR-M230AC4
Description
About the CR-M230AC4
About the CR-M230AC4

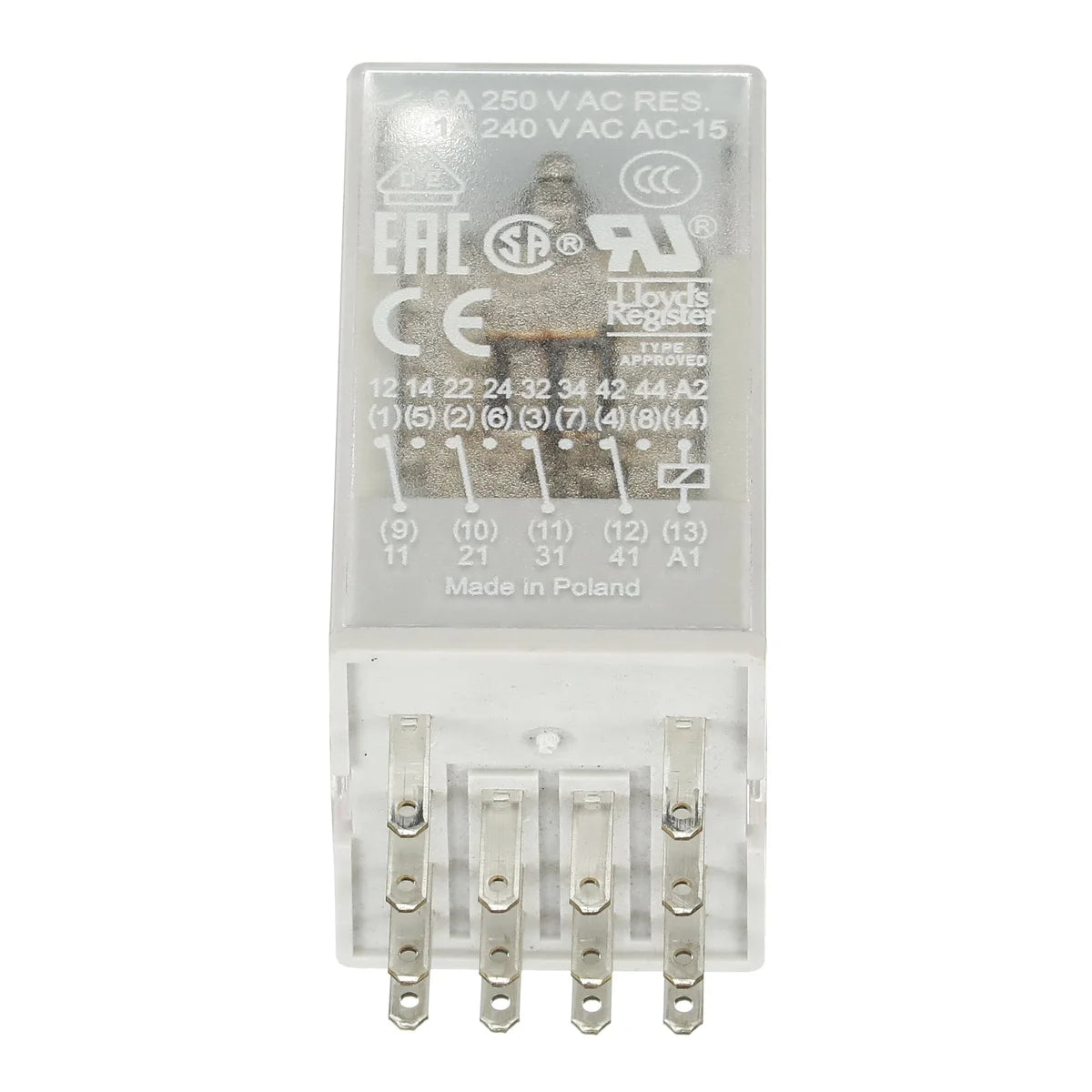

The ABB CR-M230AC4 (SKU: 1SVR405613R3000) is a pluggable interface switching relay from the CR-M series, featuring 4 changeover contacts rated at 250V/6A and a 230VAC coil for reliable signal switching in industrial control and automation panels. Designed for DIN rail mounting, the CR-M230AC4 offers a compact footprint of just 21.2 × 35.6 × 27.5 mm and a weight of only 33 g, making it an efficient solution for high-density panel layouts. Fully certified to international standards including UL 508, IEC/EN 61810-1, and CE, this relay is trusted by engineers worldwide for demanding automation applications.
Certifications & Standards
- CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
- IEC/EN 63000: Technical documentation for evaluation of electrical and electronic equipment with respect to hazardous substances
- IEC/EN 61810-1: Electromechanical elementary relays — general and safety requirements
- UL 508: UL standard for industrial control equipment (North America)
- EN 61810: European standard for electromechanical elementary relays
- CSA C22.2: Canadian Standards Association electrical safety certification
- CSA: Canadian Standards Association approval
- REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
- RoHS: Restriction of Hazardous Substances compliance (EU Directive)
- CCC: China Compulsory Certification for the Chinese market
- CE: European Conformity marking — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed marking for Great Britain market access
- EAC: Eurasian Conformity marking for the Eurasian Economic Union
- VDE: Verband der Elektrotechnik — German electrical engineering certification
Applications & Use Cases
- Signal switching and isolation in industrial control panels
- PLC and automation system interface relays
- Machine control and process automation cabinets
- Building management and HVAC control systems
- High-density DIN rail panel installations requiring compact relay solutions
- Applications requiring international compliance (UL, CE, VDE, CCC, EAC, UKCA)
Specification
Full specification
Dimensions 4
| Product Net Width | 21.2 mm |
|---|---|
| Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm |
| Product Net Weight | 0.033 kg |
Technical 16
| Function | Pluggable miniature interface relay CR-M |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 230 V AC |
| Rated Operational Voltage | 250 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Output | 4 C/O (SPDT) Contacts |
| Output Signal | 250 V / 6 A |
| Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A, (230 V) 1 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508 |
Technical UL/CSA 4
| Maximum Operating Voltage UL/CSA | 300 V AC |
|---|---|
| Contact Rating UL/CSA | B300 |
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB |
Show all 54 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405613R3000 |
|---|---|
| Type designation | CR-M230AC4 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614497759 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +55 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4005355 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 114 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 61 mm |
| Package Level 1 Gross Weight | 0.35 kg |
| Package Level 1 EAN | 4013614373565 |
| Shipping weight | 0.35 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405613R3000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- VDE
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61810-1
- UL 508
Quick answers
Questions about the CR-M230AC4
What is the rated current of CR-M230AC4?
The rated current of CR-M230AC4 is 6 A.
Which supply voltage is CR-M230AC4 rated for?
The rated operational voltage of CR-M230AC4 is 250 V AC.
What is the HS code of CR-M230AC4 for customs?
The tariff (HS) code on file for CR-M230AC4 is 85364900.
What is the EAN of CR-M230AC4?
The EAN (GTIN) of CR-M230AC4 is 4013614497759.
Where does CR-M230AC4 ship from, and how fast?
CR-M230AC4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
