- Part number
- 1SVR405613R1000
- Model no
- CR-M024DC4
Description
About the CR-M024DC4
About the CR-M024DC4

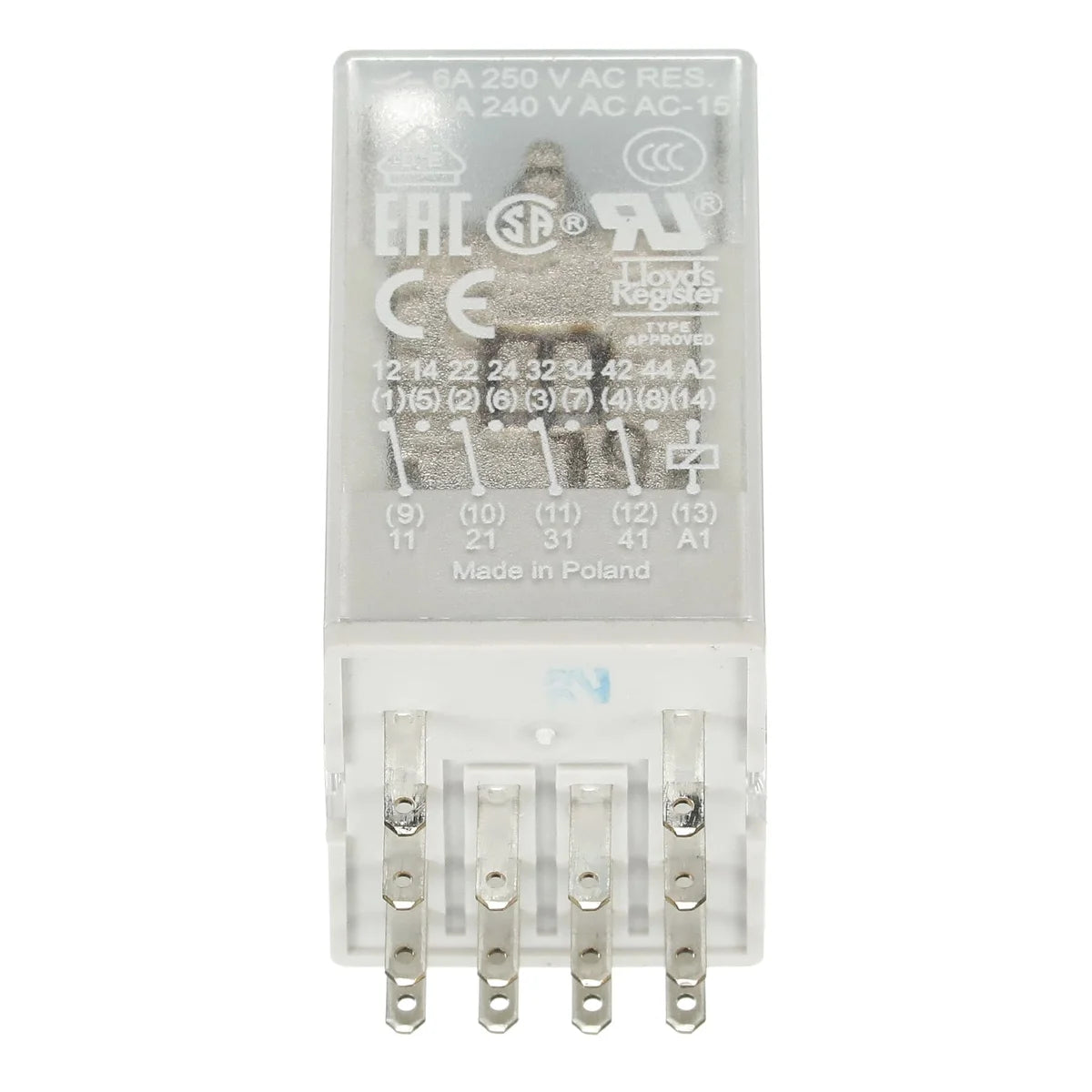

The ABB CR-M024DC4 (SKU: 1SVR405613R1000) is a pluggable interface switching relay from the CR-M series, featuring 4 changeover contacts rated at 250V/6A with a 24VDC control coil. Designed for DIN rail mounting, the CR-M024DC4 delivers reliable signal switching and interface functions in compact control panel installations. Its slim 21.2mm profile and pluggable design make it ideal for dense automation and industrial control applications.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliant for the UK market post-Brexit
- UL 508: UL Listed for industrial control equipment (North America)
- CAN/CSA C22.2 No.14: Canadian Standards Association standard for industrial control equipment
- CSA C22.2: CSA certification for electrical components used in Canada
- CSA: General CSA certification mark
- IEC/EN 61810-1: International standard for electromechanical elementary relays
- EN 61810: European standard for elementary relays
- IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
- VDE: Verband der Elektrotechnik — German electrical engineering certification
- EAC: Eurasian Conformity mark for Russia and Eurasian Economic Union countries
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU Regulation (EC) No 1907/2006 on chemical substances
Applications & Use Cases
- Signal interface and isolation between PLC outputs and field devices
- Control panel wiring in industrial automation systems
- Machine control and interlock circuits requiring 4-pole switching
- Building automation and HVAC control systems
- Motor control and auxiliary switching functions
- Process control and instrumentation panels
Frequently Asked Questions
What coil voltage does the CR-M024DC4 use?
The CR-M024DC4 operates on a 24VDC control coil, making it directly compatible with standard PLC output voltages.
How many contacts does the CR-M024DC4 have?
It features 4 changeover (4c/o) contacts, each rated at 250V/6A.
Is the CR-M024DC4 pluggable?
Yes — the CR-M series uses a pluggable design, allowing the relay module to be removed and replaced from its socket without rewiring the installation.
What DIN rail width is required?
The CR-M024DC4 mounts on standard 35mm DIN rail (EN 60715 TS35).
Specification
Full specification
Dimensions 4
| Product Net Width | 21.2 mm |
|---|---|
| Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm |
| Product Net Weight | 0.033 kg |
Technical 15
| Function | Pluggable miniature interface relay CR-M |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Voltage | 250 V AC |
| Output | 4 C/O (SPDT) Contacts |
| Output Signal | 250 V / 6 A |
| Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 1.5 A, (230 V) 1 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | 300 V AC |
|---|---|
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB |
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405613R1000 |
|---|---|
| Type designation | CR-M024DC4 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614497711 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4005352 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 114 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 61 mm |
| Package Level 1 Gross Weight | 0.35 kg |
| Package Level 1 EAN | 4013614373503 |
| Shipping weight | 0.35 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405613R1000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- VDE
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61810-1
- UL 508
Quick answers
Questions about the CR-M024DC4
What is the rated current of CR-M024DC4?
The rated current of CR-M024DC4 is 6 A.
Which supply voltage is CR-M024DC4 rated for?
The rated operational voltage of CR-M024DC4 is 250 V AC.
What is the HS code of CR-M024DC4 for customs?
The tariff (HS) code on file for CR-M024DC4 is 85364900.
What is the EAN of CR-M024DC4?
The EAN (GTIN) of CR-M024DC4 is 4013614497711.
Where does CR-M024DC4 ship from, and how fast?
CR-M024DC4 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB CR-M
- Brand
- ABB
- Series
- CR-M
