- Part number
- 1SVR405612R1000
- Model no
- CR-M024DC3
Description
About the CR-M024DC3
About the CR-M024DC3

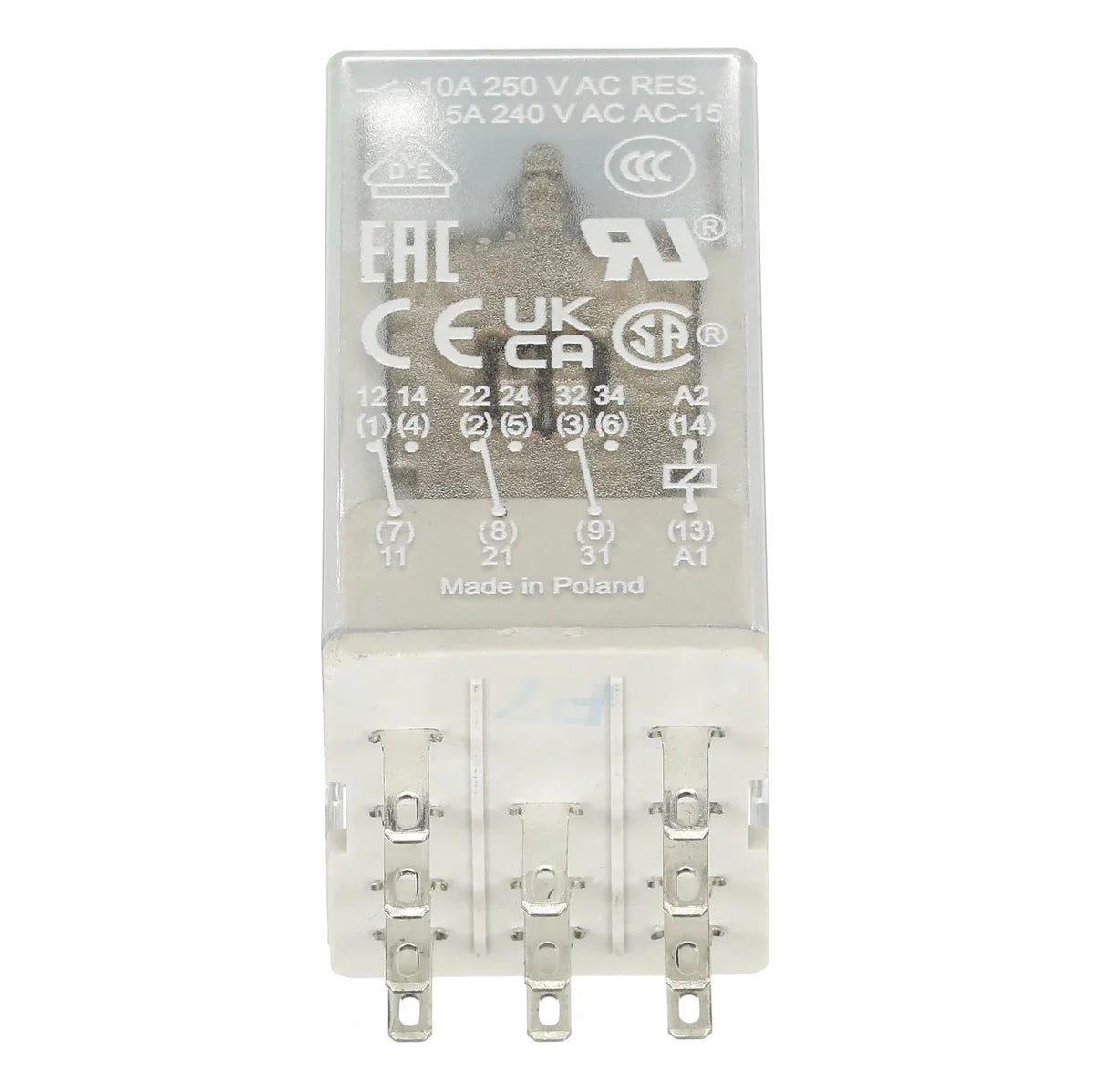

The ABB CR-M024DC3 (SKU: 1SVR405612R1000) is a pluggable interface switching relay from the CR-M series, featuring 3 changeover (C/O) contacts rated at 10A / 250V AC, with a 24VDC control coil. Designed for DIN rail mounting, the CR-M024DC3 delivers reliable signal isolation and load switching in control panels, PLC interfaces, and industrial automation systems. Its compact footprint of just 21.2 × 35.6 × 27.5 mm makes it an ideal choice for space-constrained enclosures.
Certifications & Standards
- CAN/CSA C22.2 No.14: Canadian Standards Association certification for industrial control equipment
- IEC/EN 63000: Technical documentation for RoHS compliance assessment
- IEC/EN 61810-1: Electromechanical elementary relays — general and safety requirements
- UL 508: UL standard for industrial control equipment (North American market)
- EN 61810: European standard for electromechanical elementary relays
- CSA C22.2: CSA standard for electrical equipment in industrial environments
- CSA: Canadian Standards Association approval
- REACH: EU regulation on registration, evaluation, authorisation and restriction of chemicals
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- CCC: China Compulsory Certification for the Chinese market
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — valid for Great Britain market post-Brexit
- EAC: Eurasian Conformity mark for Russia and EAEU member states
- VDE: Verband der Elektrotechnik — German electrical engineering safety certification
Applications & Use Cases
- PLC and automation controller output interface and signal isolation
- Industrial control panel relay switching for motors, solenoids, and actuators
- Building automation and HVAC control systems
- Machine safety interlock and status signalling circuits
- Process control and instrumentation switching in harsh industrial environments
Frequently Asked Questions
What does the CR-M024DC3 catalog number indicate?
The designation breaks down as: CR-M = pluggable interface relay series, 024 = 24V coil voltage, DC = direct current coil, 3 = 3 changeover contacts.
Is the CR-M024DC3 compatible with standard relay sockets?
Yes. The CR-M series is designed as a pluggable relay, meaning it can be inserted into and removed from a matching ABB CR-M socket base without tools, simplifying maintenance and replacement.
What is the maximum switching current?
The CR-M024DC3 is rated for 10A per contact at 250V AC, suitable for direct load switching of small motors, heating elements, and control circuits.
Specification
Full specification
Dimensions 4
| Product Net Width | 21.2 mm |
|---|---|
| Product Net Height | 35.6 mm |
| Product Net Depth / Length | 27.5 mm |
| Product Net Weight | 0.033 kg |
Technical 15
| Function | Pluggable miniature interface relay CR-M |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Voltage | 250 V AC |
| Output | 3 C/O (SPDT) Contacts |
| Output Signal | 250 V / 10 A |
| Terminal Type | Flat-Pin Connections |
| Rated Operational Current AC-12 (Ie) | (230 V) 10 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A, (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 10 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP40 |
| Mounting Position | 1 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, UL 508 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | 300 V AC |
|---|---|
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | HB |
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405612R1000 |
|---|---|
| Type designation | CR-M024DC3 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614497469 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4005341 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 114 mm |
| Package Level 1 Depth / Length | 50 mm |
| Package Level 1 Height | 61 mm |
| Package Level 1 Gross Weight | 0.35 kg |
| Package Level 1 EAN | 4013614373329 |
| Shipping weight | 0.35 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405612R1000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- VDE
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61810-1
- UL 508
Quick answers
Questions about the CR-M024DC3
What is the rated current of CR-M024DC3?
The rated current of CR-M024DC3 is 10 A.
Which supply voltage is CR-M024DC3 rated for?
The rated operational voltage of CR-M024DC3 is 250 V AC.
What is the HS code of CR-M024DC3 for customs?
The tariff (HS) code on file for CR-M024DC3 is 85364900.
What is the EAN of CR-M024DC3?
The EAN (GTIN) of CR-M024DC3 is 4013614497469.
Where does CR-M024DC3 ship from, and how fast?
CR-M024DC3 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
