- Part number
- 1SVR405601R1000
- Model no
- CR-P024DC2
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- RoHS
- VDE

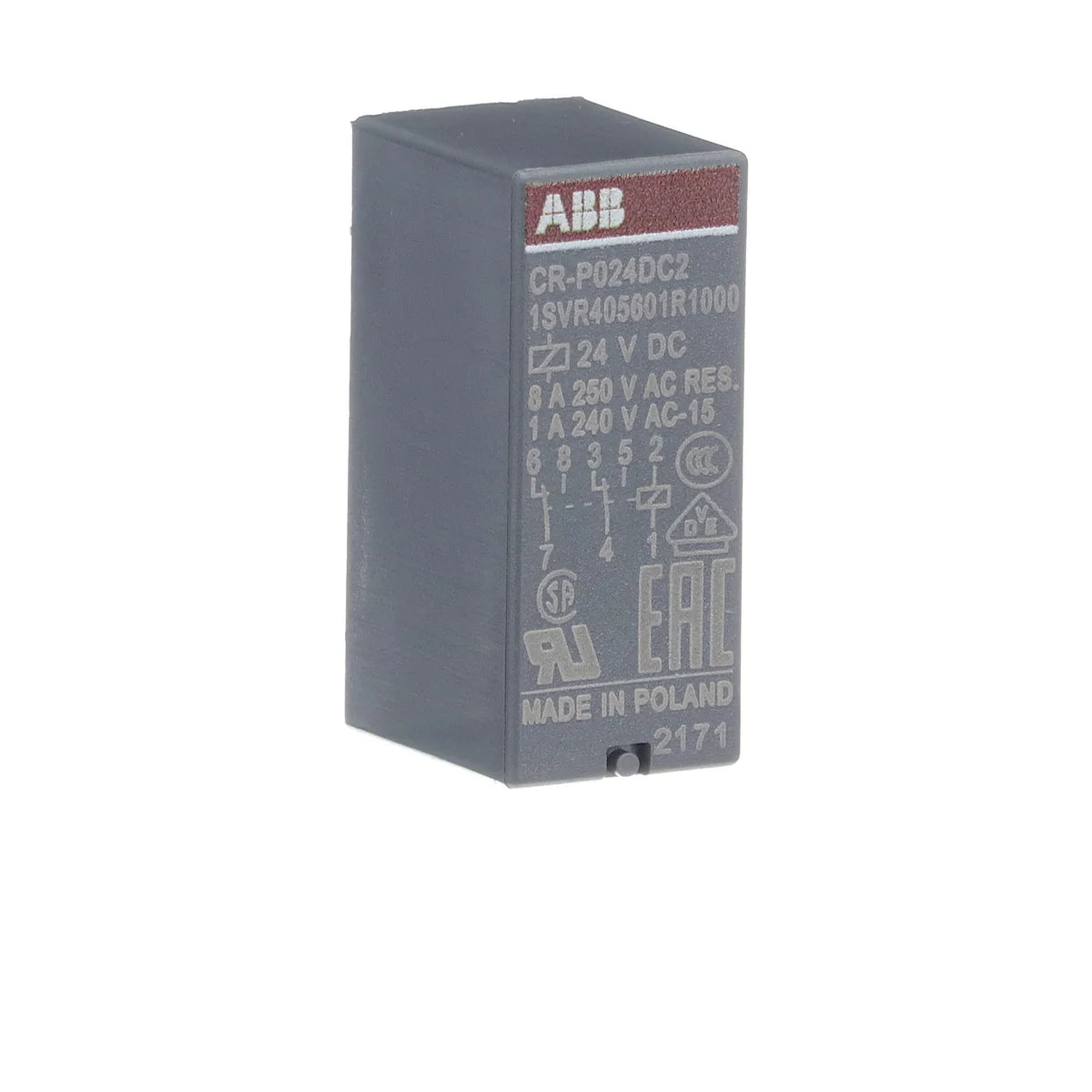

CR-PABB 1SVR405601R1000 CR-P024DC2 Pluggable Interface Switching Relay 2C/O 24VDC Coil 250V/8A
Description
About the CR-P024DC2
About the CR-P024DC2
The ABB CR-P024DC2 (SKU: 1SVR405601R1000) is a compact pluggable interface switching relay from the CR-P series, featuring 2 changeover (2C/O) contacts rated at 250V/8A with a 24VDC coil. Designed for industrial automation and control panel applications, the CR-P024DC2 mounts directly on a PCB or in a compatible socket, making it ideal for signal switching, machine control, and process automation tasks where reliable, space-saving relay performance is required.
Certifications & Standards
- IEC 61810-1: International standard for electromechanical elementary relays
- EN 61810-1: European harmonized standard for elementary relays
- IEC/EN 61810-1: Combined IEC and EN compliance for relay construction and performance
- CSA: Canadian Standards Association certification for North American markets
- REACH: EU regulation compliance for chemical substance safety
- RoHS: Restriction of Hazardous Substances directive compliance
- CCC: China Compulsory Certification for the Chinese market
- CE: European conformity marking for free movement within the EEA
- UKCA: UK Conformity Assessed marking for Great Britain market access
- EAC: Eurasian Conformity marking for the EAEU market
- VDE: German Association for Electrical, Electronic & Information Technologies approval
Applications & Use Cases
- Signal switching and isolation in control panels and machine cabinets
- PLC output amplification and interface relay applications
- Industrial automation and process control systems
- Building automation and HVAC control circuits
- Motor control and safety interlocking circuits
- General-purpose relay switching in OEM machinery
Specification
Full specification
Dimensions 4
| Product Net Width | 12.7 mm |
|---|---|
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.014 kg |
Technical 16
| Function | Pluggable pcb interface relay CR-P |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Rated Operational Voltage | 400 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Output | 2 C/O Contacts |
| Output Signal | 250 V / 8 A |
| Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 8 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A, (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 8 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 |
| Mounting Position | 1 |
| Standards | IEC/EN 61810-1 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | 300 V AC |
|---|---|
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 53 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405601R1000 |
|---|---|
| Type designation | CR-P024DC2 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614498237 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +85 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4005308 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 332 mm |
| Package Level 1 Depth / Length | 17 mm |
| Package Level 1 Height | 28 mm |
| Package Level 1 Gross Weight | 0.157 kg |
| Package Level 1 EAN | 4013614373008 |
| Shipping weight | 0.157 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405601R1000 13
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 2CDC110004C0210_05
Data Sheet, Technical Information 2CDC110004C0210_05
-
Manual
ProductDownload PDF: Instructions and Manuals 1SVC405600M9000
Instructions and Manuals 1SVC405600M9000
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 1SVD981001-4501
REACH Declaration 1SVD981001-4501
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 1SVD981001-4401
RoHS Declaration 1SVD981001-4401
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CCC 2020970303000496
Declaration of Conformity - CCC 2020970303000496
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 1SVD982031-0001
Declaration of Conformity - CE 1SVD982031-0001
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 1SVD982031-1000
Declaration of Conformity - UKCA 1SVD982031-1000
-
Certificate
ProductDownload PDF: CCC Certificate CCC_2007010303228779
CCC Certificate CCC_2007010303228779
-
Certificate
ProductDownload PDF: CSA Certificate CSA_1587291
CSA Certificate CSA_1587291
-
Certificate
ProductDownload PDF: cUR Certificate cUR_E244330
cUR Certificate cUR_E244330
-
Certificate
ProductDownload PDF: RMRS Certificate RMRS_1740019250
RMRS Certificate RMRS_1740019250
-
Certificate
ProductDownload PDF: UR Certificate UR_E244330
UR Certificate UR_E244330
-
Drawing
ProductDownload PDF: CAD Dimensional Drawing 2CDC001079B0201
CAD Dimensional Drawing 2CDC001079B0201
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- VDE
- IEC/EN 61810-1
Quick answers
Questions about the CR-P024DC2
What is the rated current of CR-P024DC2?
The rated current of CR-P024DC2 is 8 A.
Which supply voltage is CR-P024DC2 rated for?
The rated operational voltage of CR-P024DC2 is 250 V AC.
What is the HS code of CR-P024DC2 for customs?
The tariff (HS) code on file for CR-P024DC2 is 85364900.
What is the EAN of CR-P024DC2?
The EAN (GTIN) of CR-P024DC2 is 4013614498237.
Where does CR-P024DC2 ship from, and how fast?
CR-P024DC2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
