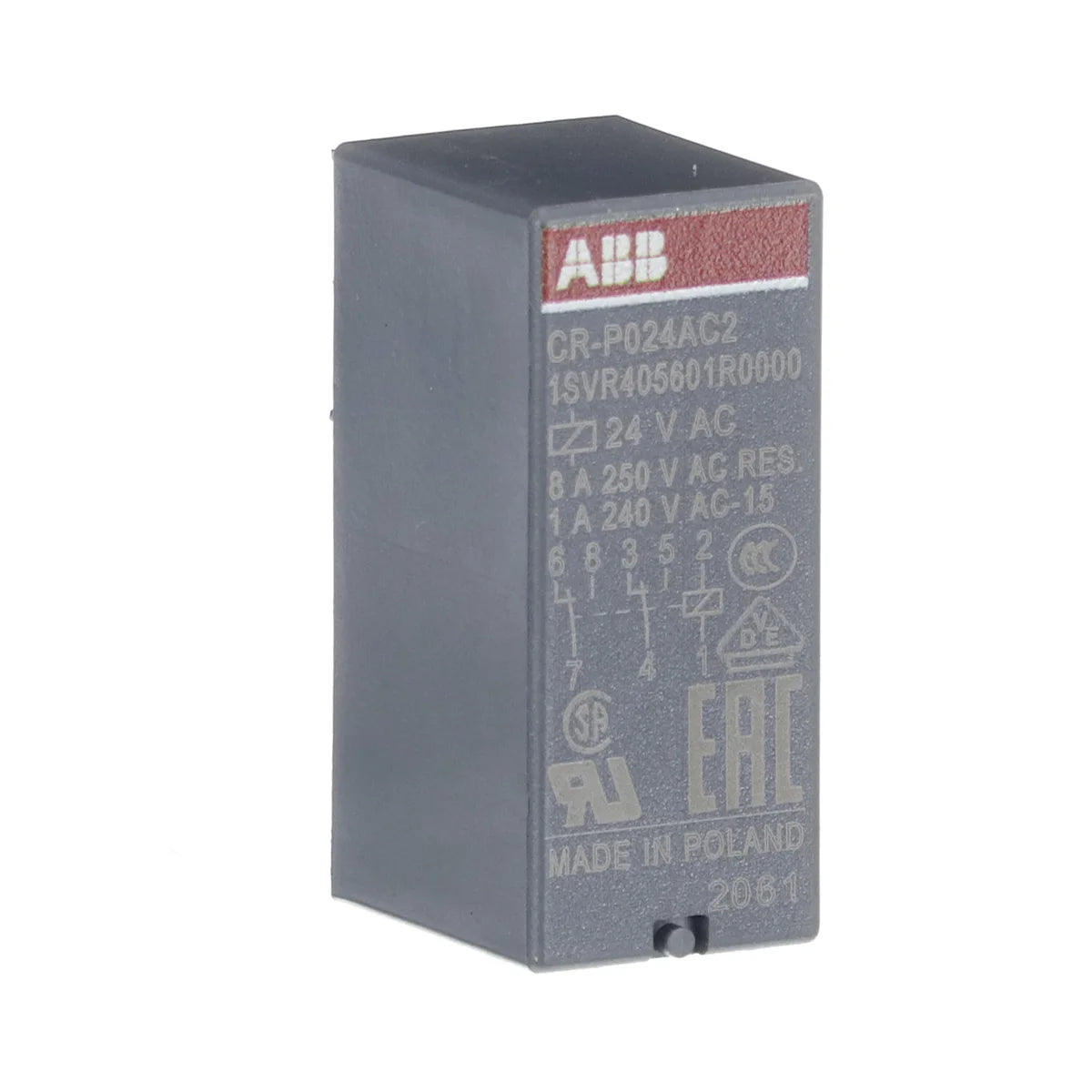

CR-PABB 1SVR405601R0000 CR-P024AC2 Pluggable Interface Switching Relay 2CO 24VAC 250V 8A
Description
About the CR-P024AC2
About the CR-P024AC2
The ABB CR-P024AC2 (SKU: 1SVR405601R0000) is a pluggable interface switching relay from the CR-P series, featuring 2 changeover (2CO) contacts rated at 250V/8A with a 24VAC coil voltage. Designed for compact DIN rail installations, the CR-P024AC2 delivers reliable signal switching and control isolation in industrial automation and control panel applications. Its slim 12.7mm width makes it ideal for space-constrained enclosures.
Certifications & Standards
- IEC 61810-1: International standard for elementary relays — electromechanical relays
- EN 61810-1: European harmonised standard equivalent to IEC 61810-1
- IEC/EN 61810-1: Combined IEC and EN compliance for elementary relays
- CSA: Canadian Standards Association certification for North American markets
- REACH: EU REACH regulation compliance — substance of very high concern (SVHC) assessed
- RoHS: EU Restriction of Hazardous Substances directive compliant
- CCC: China Compulsory Certification for the Chinese market
- CE: Conformité Européenne marking — meets all applicable EU directives
- UKCA: UK Conformity Assessed marking for the British market post-Brexit
- EAC: Eurasian Conformity marking for the Eurasian Economic Union
- VDE: Verband der Elektrotechnik certified — stringent German electrical safety standard
Applications & Use Cases
- Signal isolation and level shifting in PLC and automation systems
- Interface relay duty in industrial control panels and switchboards
- Machine control circuits requiring compact, space-saving relay solutions
- Building automation and HVAC control wiring
- General-purpose switching in 24VAC control circuits
Specification
Full specification
Dimensions 4
| Product Net Width | 12.7 mm |
|---|---|
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.014 kg |
Technical 16
| Function | Pluggable pcb interface relay CR-P |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 24 V AC |
| Rated Operational Voltage | 400 V AC |
| Rated Frequency (f) | 50 / 60 Hz |
| Output | 2 C/O Contacts |
| Output Signal | 250 V / 8 A |
| Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 8 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A, (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 8 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 |
| Mounting Position | 1 |
| Standards | IEC/EN 61810-1 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | 300 V AC |
|---|---|
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 53 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405601R0000 |
|---|---|
| Type designation | CR-P024AC2 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614498220 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4005307 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 332 mm |
| Package Level 1 Depth / Length | 17 mm |
| Package Level 1 Height | 28 mm |
| Package Level 1 Gross Weight | 0.157 kg |
| Package Level 1 EAN | 4013614372995 |
| Shipping weight | 0.157 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405601R0000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
- VDE
- IEC/EN 61810-1
Quick answers
Questions about the CR-P024AC2
What is the rated current of CR-P024AC2?
The rated current of CR-P024AC2 is 8 A.
Which supply voltage is CR-P024AC2 rated for?
The rated operational voltage of CR-P024AC2 is 250 V AC.
What is the HS code of CR-P024AC2 for customs?
The tariff (HS) code on file for CR-P024AC2 is 85364900.
What is the EAN of CR-P024AC2?
The EAN (GTIN) of CR-P024AC2 is 4013614498220.
Where does CR-P024AC2 ship from, and how fast?
CR-P024AC2 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
