- Part number
- 1SVR405600R3000
- Model no
- CR-P230AC1
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- RoHS
- VDE
CR-PABB 1SVR405600R3000 CR-P230AC1 1C/O 16A 250V 230VAC Coil Pluggable Interface Switching Relay
Description
About the CR-P230AC1
About the CR-P230AC1

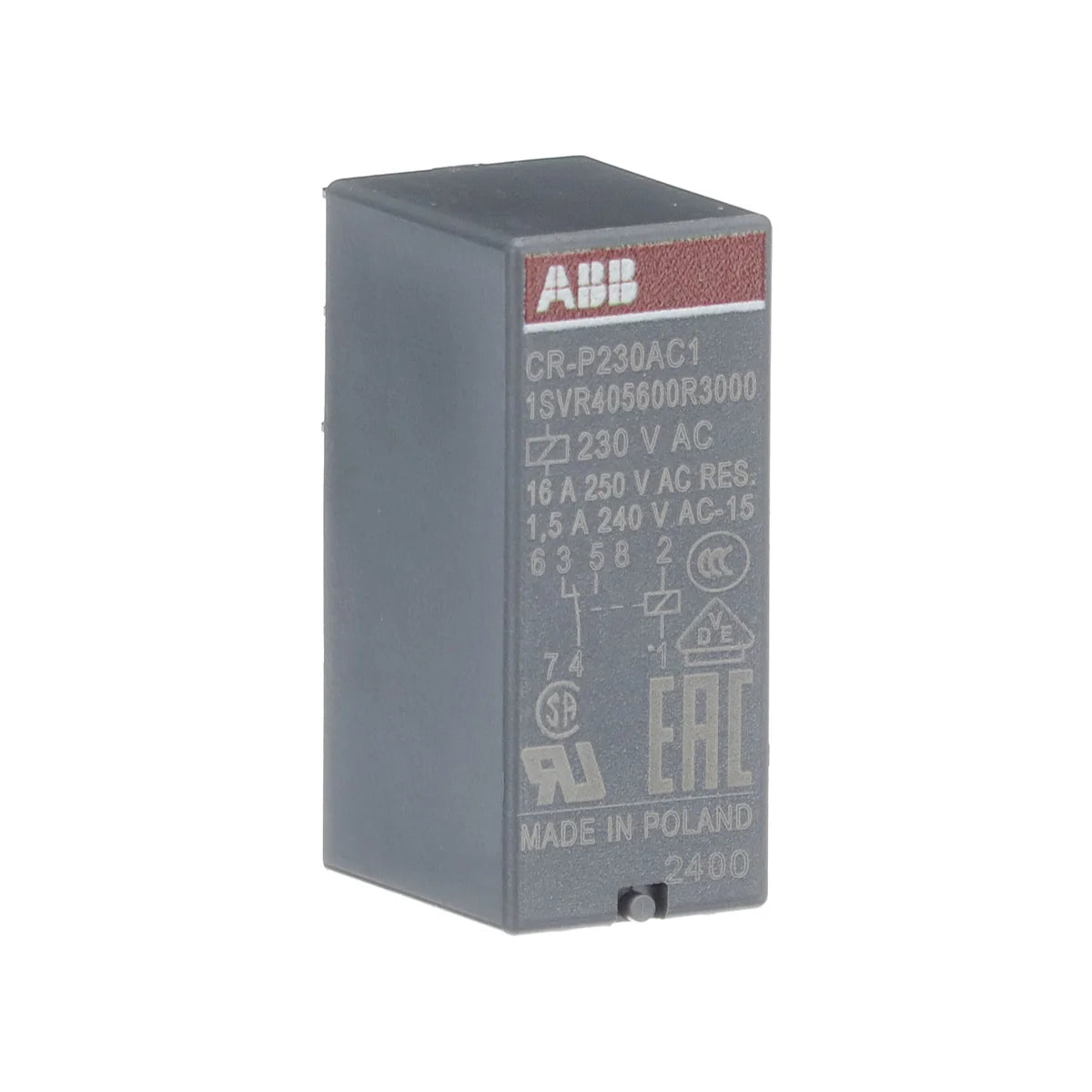

The ABB CR-P230AC1 (SKU: 1SVR405600R3000) is a pluggable interface switching relay from the CR-P series, featuring a single changeover (1C/O) contact rated at 16A/250V with a 230VAC coil voltage. Designed for compact control panel integration, the CR-P230AC1 supports both pluggable socket mounting and direct PCB mounting, making it a versatile solution for industrial automation and switching applications.
Certifications & Standards
- IEC 61810-1: International standard for electromechanical elementary relays
- EN 61810-1: European harmonised standard for elementary relays
- IEC/EN 61810-1: Combined IEC and EN compliance for elementary relays
- EN 61810-1: European standard compliance verification
- CSA: Canadian Standards Association certification for North American markets
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances — EU Directive compliant
- CCC: China Compulsory Certification for the Chinese market
- CE: European Conformity marking for EU market access
- UKCA: UK Conformity Assessed marking for the UK market post-Brexit
- EAC: Eurasian Conformity marking for Eurasian Economic Union markets
- VDE: Verband der Elektrotechnik — German electrical engineering certification
Applications & Use Cases
- Control panel signal switching and interface isolation in industrial automation
- PLC output buffering and load switching in manufacturing environments
- Building automation and HVAC control systems
- Machine tool and process control panels requiring compact relay footprints
- PCB-mounted switching applications where direct board integration is required
Specification
Full specification
Dimensions 4
| Product Net Width | 12.7 mm |
|---|---|
| Product Net Height | 15.7 mm |
| Product Net Depth / Length | 29 mm |
| Product Net Weight | 0.014 kg |
Technical 15
| Function | Pluggable pcb interface relay CR-P |
|---|---|
| Sub-Function | Relay w/o built in LED |
| Rated Control Supply Voltage (Us) | 230 V AC |
| Rated Operational Voltage | 400 V AC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 16 A |
| Terminal Type | Soldering Pins |
| Rated Operational Current AC-12 (Ie) | (230 V) 16 A |
| Rated Operational Current AC-15 (Ie) | (120 V) 3 A, (230 V) 1.5 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 16 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 2.5 A, (250 V) 0.1 A |
| Rated Insulation Voltage (Ui) | 400 V |
| Degree of Protection | IP67 |
| Mounting Position | 1 |
| Standards | IEC/EN 61810-1 |
Technical UL/CSA 3
| Maximum Operating Voltage UL/CSA | 300 V AC |
|---|---|
| Pilot Duty UL/CSA | B300 |
| Flammability According to UL94 | V-0 |
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405600R3000 |
|---|---|
| Type designation | CR-P230AC1 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614498169 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4005305 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 332 mm |
| Package Level 1 Depth / Length | 17 mm |
| Package Level 1 Height | 28 mm |
| Package Level 1 Gross Weight | 0.157 kg |
| Package Level 1 EAN | 4013614372971 |
| Shipping weight | 0.157 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405600R3000
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- VDE
- IEC/EN 61810-1
Quick answers
Questions about the CR-P230AC1
What is the rated current of CR-P230AC1?
The rated current of CR-P230AC1 is 16 A.
Which supply voltage is CR-P230AC1 rated for?
The rated operational voltage of CR-P230AC1 is 250 V AC.
What is the HS code of CR-P230AC1 for customs?
The tariff (HS) code on file for CR-P230AC1 is 85364900.
What is the EAN of CR-P230AC1?
The EAN (GTIN) of CR-P230AC1 is 4013614498169.
Where does CR-P230AC1 ship from, and how fast?
CR-P230AC1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
Reviews
Customer reviews
Series
ABB CR-P
- Brand
- ABB
- Series
- CR-P
