Part number
1SVR405600R1000
Model no
CR-P024DC1
$7.56 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-P

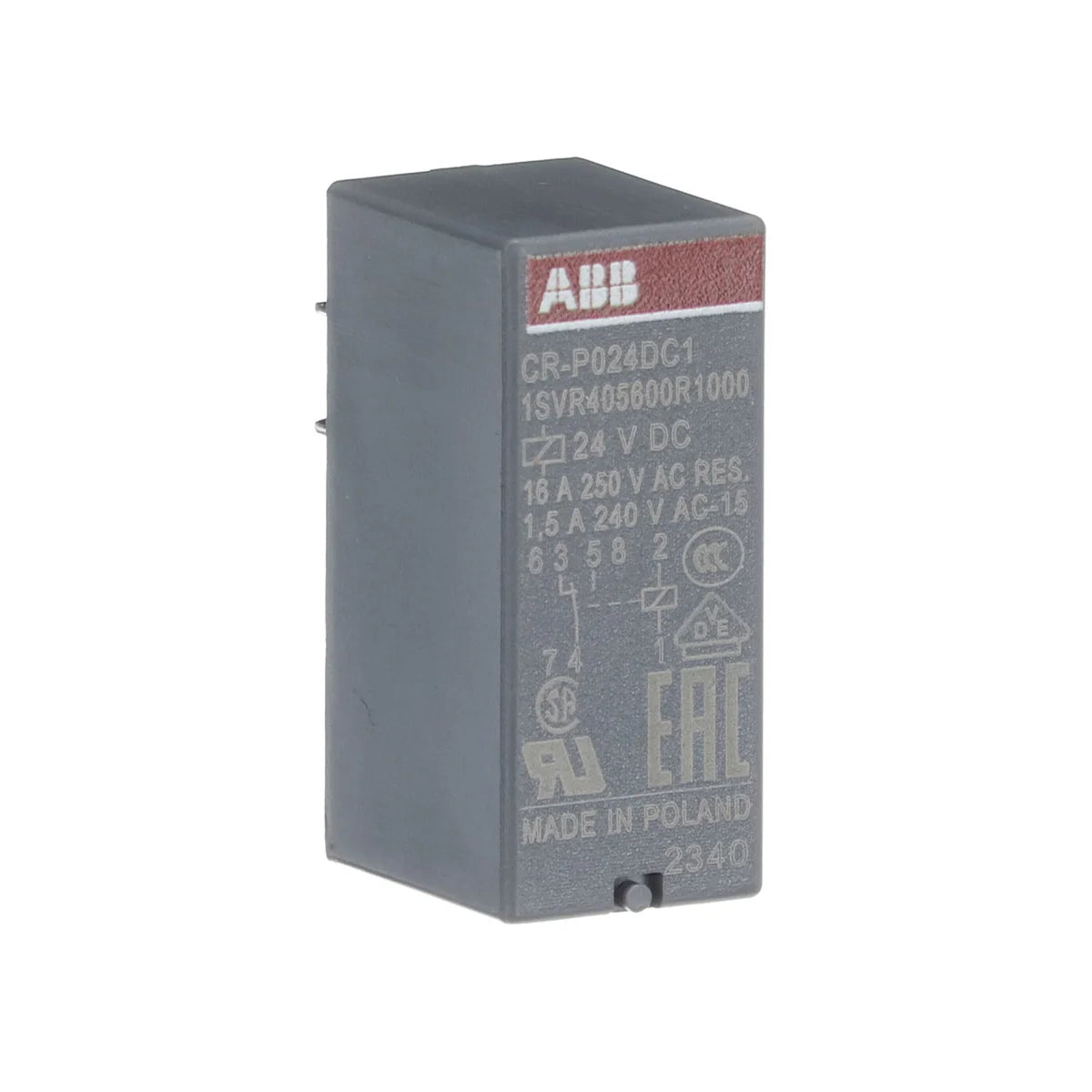

ABB 1SVR405600R1000 CR-P024DC1 1C/O 24VDC Coil 250V 16A Pluggable Interface Switching Relay

Rated current
16 A
Rated operational voltage
250 V AC
Poles
1P
Degree of protection
IP67
EAN
4013614498145
Description

About the CR-P024DC1

The ABB CR-P024DC1 (SKU: 1SVR405600R1000) is a pluggable interface switching relay from the CR-P series, featuring a single changeover contact (1C/O), a 24VDC coil, and a rated switching capacity of 250V/16A. Designed for industrial control panels and automation applications, the CR-P024DC1 delivers compact, reliable signal switching in a slim 12.7mm wide housing that mounts directly onto standard CR-M sockets.

Certifications & Standards

  • IEC 61810-1: International standard for elementary relays — general and safety requirements
  • EN 61810-1: European harmonised standard for elementary relays
  • IEC/EN 61810-1: Combined international/European relay standard compliance
  • CSA: Canadian Standards Association approval for North American markets
  • REACH: EU regulation compliance for chemical substance safety
  • RoHS: Restriction of Hazardous Substances directive compliance
  • CCC: China Compulsory Certification for the Chinese market
  • CE: European Conformity marking for EU market access
  • UKCA: UK Conformity Assessed marking for Great Britain market access
  • EAC: Eurasian Conformity mark for Russia/CIS markets
  • VDE: German electrical safety certification by VDE testing institute

Applications & Use Cases

  • PLC and controller output signal isolation and amplification
  • Industrial control panel interface and signal switching
  • Machine automation and process control systems
  • Building automation and HVAC control circuits
  • Motor starter auxiliary circuits and interlock wiring

Frequently Asked Questions

What socket does the CR-P024DC1 plug into?
The CR-P024DC1 is designed to plug into ABB CR-M series sockets, which are sold separately and provide screw or spring-clamp field wiring connections.

What does 1C/O mean?
1C/O stands for one changeover contact, meaning the relay has one common, one normally open (NO), and one normally closed (NC) contact — giving flexible switching options in a single unit.

Is the CR-P024DC1 suitable for 24VDC control circuits from a PLC output?
Yes. The 24VDC coil rating matches standard PLC 24VDC output supply voltages, making the CR-P024DC1 a direct-fit interface relay for PLC-driven control applications.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 12.7 mm
Product Net Height 15.7 mm
Product Net Depth / Length 29 mm
Product Net Weight 0.014 kg

Technical 15

Function Pluggable pcb interface relay CR-P
Sub-Function Relay w/o built in LED
Rated Control Supply Voltage (Us) 24 V DC
Rated Operational Voltage 400 V AC
Output 1 C/O (SPDT) Contact
Output Signal 250 V / 16 A
Terminal Type Soldering Pins
Rated Operational Current AC-12 (Ie) (230 V) 16 A
Rated Operational Current AC-15 (Ie) (120 V) 3 A, (230 V) 1.5 A
Rated Operational Current DC-12 (Ie) (24 V) 16 A
Rated Operational Current DC-13 (Ie) (24 V) 2.5 A, (250 V) 0.1 A
Rated Insulation Voltage (Ui) 400 V
Degree of Protection IP67
Mounting Position 1
Standards IEC/EN 61810-1

Technical UL/CSA 3

Maximum Operating Voltage UL/CSA 300 V AC
Pilot Duty UL/CSA B300
Flammability According to UL94 V-0
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405600R1000
Type designation CR-P024DC1
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614498145
eCl@ss 27371601
Minimum Order Quantity 10 piece
Customs Tariff Number 85364900

Environmental 2

Ambient Air Temperature Operation -40 ... +85 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001437 - Switching relay
eClass V11.0 : 27371601
UNSPSC 39122331
E-Number (Sweden) 4005301

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 332 mm
Package Level 1 Depth / Length 17 mm
Package Level 1 Height 28 mm
Package Level 1 Gross Weight 0.157 kg
Package Level 1 EAN 4013614372919
Shipping weight 0.157 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405600R1000

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • VDE
  • IEC/EN 61810-1
Quick answers

Questions about the CR-P024DC1

What is the rated current of CR-P024DC1?

The rated current of CR-P024DC1 is 16 A.

Which supply voltage is CR-P024DC1 rated for?

The rated operational voltage of CR-P024DC1 is 250 V AC.

What is the HS code of CR-P024DC1 for customs?

The tariff (HS) code on file for CR-P024DC1 is 85364900.

What is the EAN of CR-P024DC1?

The EAN (GTIN) of CR-P024DC1 is 4013614498145.

Where does CR-P024DC1 ship from, and how fast?

CR-P024DC1 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
