Part number
1SVR405541R7210
Model no
CR-S230VADC1CRZ
$14.12 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-S

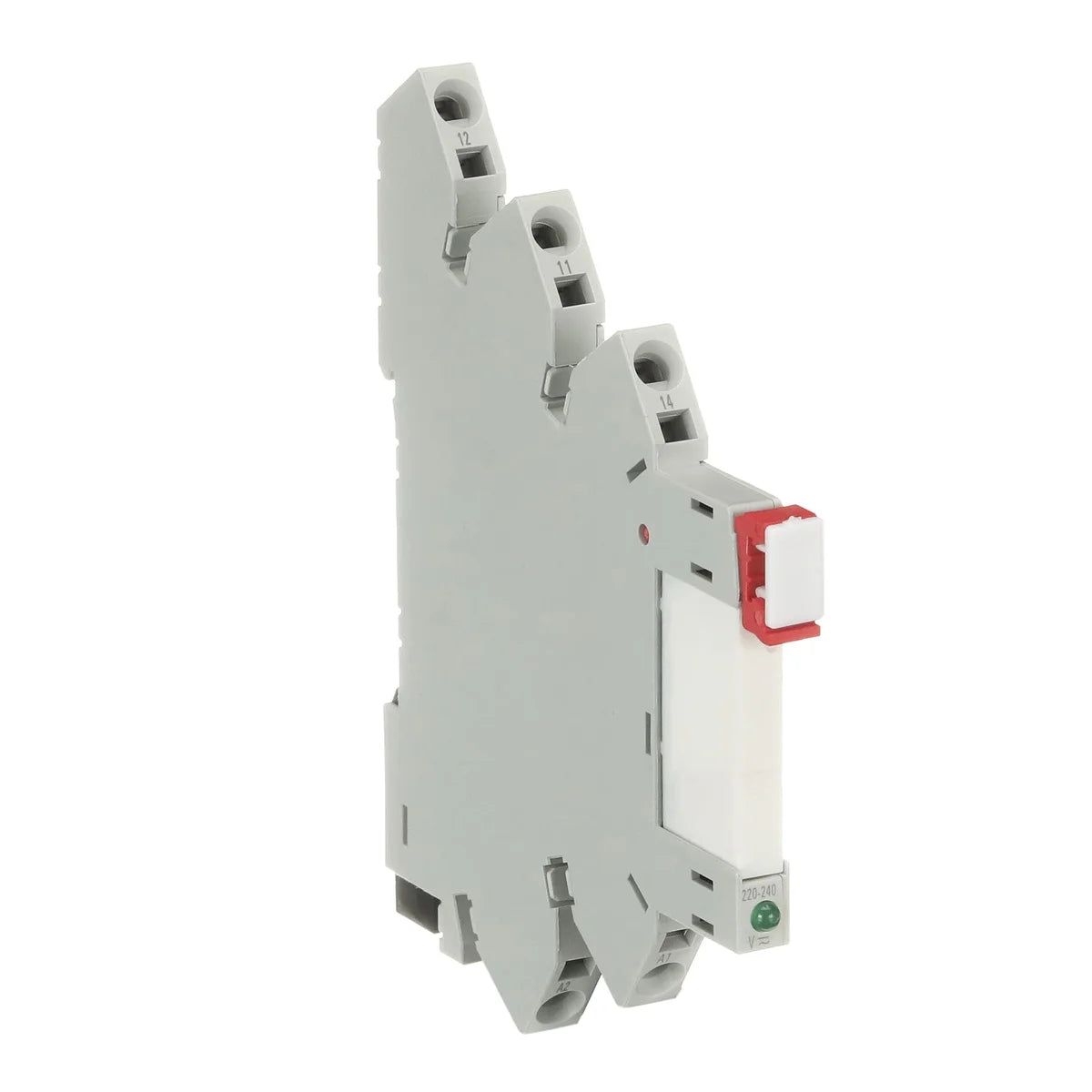

ABB 1SVR405541R7210 CR-S230VADC1CRZ 1C/O 6A 250VAC 230V AC/DC Coil Interface Switching Relay

Rated current
6 A
Rated operational voltage
230–DC V DC
Degree of protection
IP20
EAN
4013614499388
Description

About the CR-S230VADC1CRZ

The ABB CR-S230VADC1CRZ is a compact interface switching relay from the CR-S series, designed for control panel and industrial automation applications where reliable signal switching is essential. SKU 1SVR405541R7210 features a single changeover (1C/O) contact rated at 6A/250VAC and accepts a universal 230V AC/DC coil voltage, making it suitable for a wide range of control circuits across global installations.

Certifications & Standards

  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • CSA: Canadian Standards Association certification for North American market compliance
  • UKCA: UK Conformity Assessed marking for Great Britain market compliance
  • UL 508: UL standard for industrial control equipment
  • CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
  • IEC/EN 61810-1: Electromechanical elementary relays — general and safety requirements
  • IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
  • IEC/EN 61984: Connectors — safety requirements and tests
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardised mounting on rails
  • EN 61810: Electromechanical elementary relays
  • REACH: Compliance with EU REACH regulation on chemical substances
  • RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive

Applications & Use Cases

  • Signal isolation and interface between control circuits in industrial automation
  • PLC output expansion and signal conversion in control panels
  • Machine control and building automation systems
  • Interface between low-power control signals and higher-power load circuits
  • Applications requiring universal AC/DC coil voltage at 230V for simplified system design
Specification

Full specification

50 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 6.2 mm
Product Net Height 76.6 mm
Product Net Depth / Length 94.7 mm
Product Net Weight 0.03 kg

Technical 15

Function Fully assembled interface relay CR-S
Sub-Function Relay with standard contacts
Rated Control Supply Voltage (Us) 230 V AC/DC
Output 1 C/O (SPDT) Contact
Output Signal 250 V / 6 A
Terminal Type Spring Terminals
Rated Operational Current AC-12 (Ie) (230 V) 6 A
Rated Operational Current DC-12 (Ie) (24 V) 6 A
Rated Operational Current DC-13 (Ie) (24 V) 1 A
Degree of Protection Terminals IP20
Connecting Capacity Flexible 2.5 mm², Rigid 2.5 mm²
Tightening Torque 0.5 N·m
Wire Stripping Length 7 mm
Mounting on DIN Rail TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, IEC/EN 61984, UL 508

Technical UL/CSA 2

Connecting Capacity UL/CSA Flexible 14 AWG, Rigid 14 AWG
Tightening Torque UL/CSA 4.42 in·lb
Show all 50 specifications ↓ Show less ↑29 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405541R7210
Type designation CR-S230VADC1CRZ
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614499388
eCl@ss 27371601
Minimum Order Quantity 10 piece
Customs Tariff Number 85364900

Environmental 1

Ambient Air Temperature Operation -40 ... +55 °C, Storage 0 ... +40 °C

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001437 - Switching relay
eClass V11.0 : 27371601
UNSPSC 39122331
E-Number (Sweden) 4001410

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 93 mm
Package Level 1 Depth / Length 66 mm
Package Level 1 Height 81 mm
Package Level 1 Gross Weight 0.32 kg
Package Level 1 EAN 4013614486753
Shipping weight 0.32 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405541R7210

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61810-1
  • IEC/EN 61984
  • UL 508
Quick answers

Questions about the CR-S230VADC1CRZ

What is the rated current of CR-S230VADC1CRZ?

The rated current of CR-S230VADC1CRZ is 6 A.

Which supply voltage is CR-S230VADC1CRZ rated for?

The rated operational voltage of CR-S230VADC1CRZ is 230–DC V DC.

What is the HS code of CR-S230VADC1CRZ for customs?

The tariff (HS) code on file for CR-S230VADC1CRZ is 85364900.

What is the EAN of CR-S230VADC1CRZ?

The EAN (GTIN) of CR-S230VADC1CRZ is 4013614499388.

Where does CR-S230VADC1CRZ ship from, and how fast?

CR-S230VADC1CRZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
