- Part number
- 1SVR405541R6210
- Model no
- CR-S110VADC1CRZ
Description
About the CR-S110VADC1CRZ
About the CR-S110VADC1CRZ

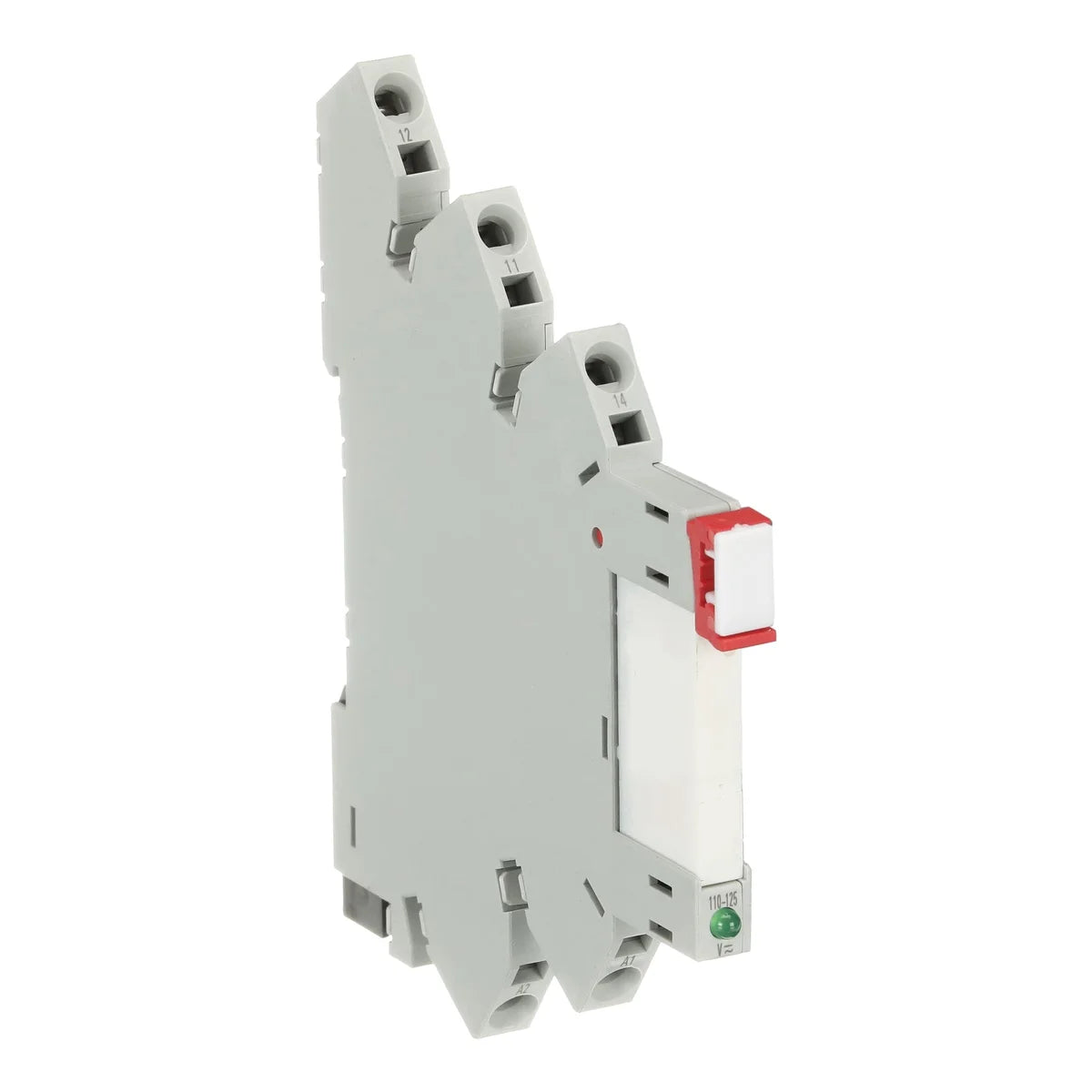

The ABB CR-S110VADC1CRZ (SKU: 1SVR405541R6210) is a complete interface switching relay from the CR-S series, featuring a 1C/O (SPDT) contact configuration rated at 6A/250VAC output and a universal 110VAC/DC coil voltage. Designed for control panel integration, the CR-S110VADC1CRZ provides reliable signal switching and interfacing between control systems and field devices in industrial automation applications. Its compact DIN-rail-mountable form factor — just 6.2 mm wide — makes it ideal for high-density panel layouts.
Certifications & Standards
- CE: Conforms to applicable European Union directives
- UKCA: UK Conformity Assessed — approved for the UK market
- CSA: Certified by the Canadian Standards Association
- CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
- UL 508: UL standard for industrial control equipment
- IEC/EN 61810-1: Electromechanical elementary relays — general and safety requirements
- IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to RoHS
- IEC/EN 61984: Connectors — safety requirements and tests
- IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardised mounting on rails
- EN 61810-1: European adoption of IEC 61810-1 for electromechanical relays
- EN 63000: European adoption of IEC 63000 for RoHS technical documentation
- EN 61984: European adoption of IEC 61984 for connectors safety
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances — free from restricted materials
Specification
Full specification
Dimensions 4
| Product Net Width | 6.2 mm |
|---|---|
| Product Net Height | 76.6 mm |
| Product Net Depth / Length | 94.7 mm |
| Product Net Weight | 0.03 kg |
Technical 15
| Function | Fully assembled interface relay CR-S |
|---|---|
| Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 110 V AC/DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm², Rigid 2.5 mm² |
| Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, IEC/EN 61984, UL 508 |
Technical UL/CSA 2
| Connecting Capacity UL/CSA | Flexible 14 AWG, Rigid 14 AWG |
|---|---|
| Tightening Torque UL/CSA | 4.42 in·lb |
Show all 50 specifications ↓ Show less ↑29 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405541R6210 |
|---|---|
| Type designation | CR-S110VADC1CRZ |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614499340 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 1
| Ambient Air Temperature | Operation -40 ... +55 °C, Storage 0 ... +40 °C |
|---|
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4001406 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 93 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 81 mm |
| Package Level 1 Gross Weight | 0.32 kg |
| Package Level 1 EAN | 4013614486715 |
| Shipping weight | 0.32 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405541R6210
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61810-1
- IEC/EN 61984
- UL 508
Quick answers
Questions about the CR-S110VADC1CRZ
What is the rated current of CR-S110VADC1CRZ?
The rated current of CR-S110VADC1CRZ is 6 A.
Which supply voltage is CR-S110VADC1CRZ rated for?
The rated operational voltage of CR-S110VADC1CRZ is 250 V AC.
What is the HS code of CR-S110VADC1CRZ for customs?
The tariff (HS) code on file for CR-S110VADC1CRZ is 85364900.
What is the EAN of CR-S110VADC1CRZ?
The EAN (GTIN) of CR-S110VADC1CRZ is 4013614499340.
Where does CR-S110VADC1CRZ ship from, and how fast?
CR-S110VADC1CRZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
