- Part number
- 1SVR405541R6110
- Model no
- CR-S110VADC1CRS
Description
About the CR-S110VADC1CRS
About the CR-S110VADC1CRS

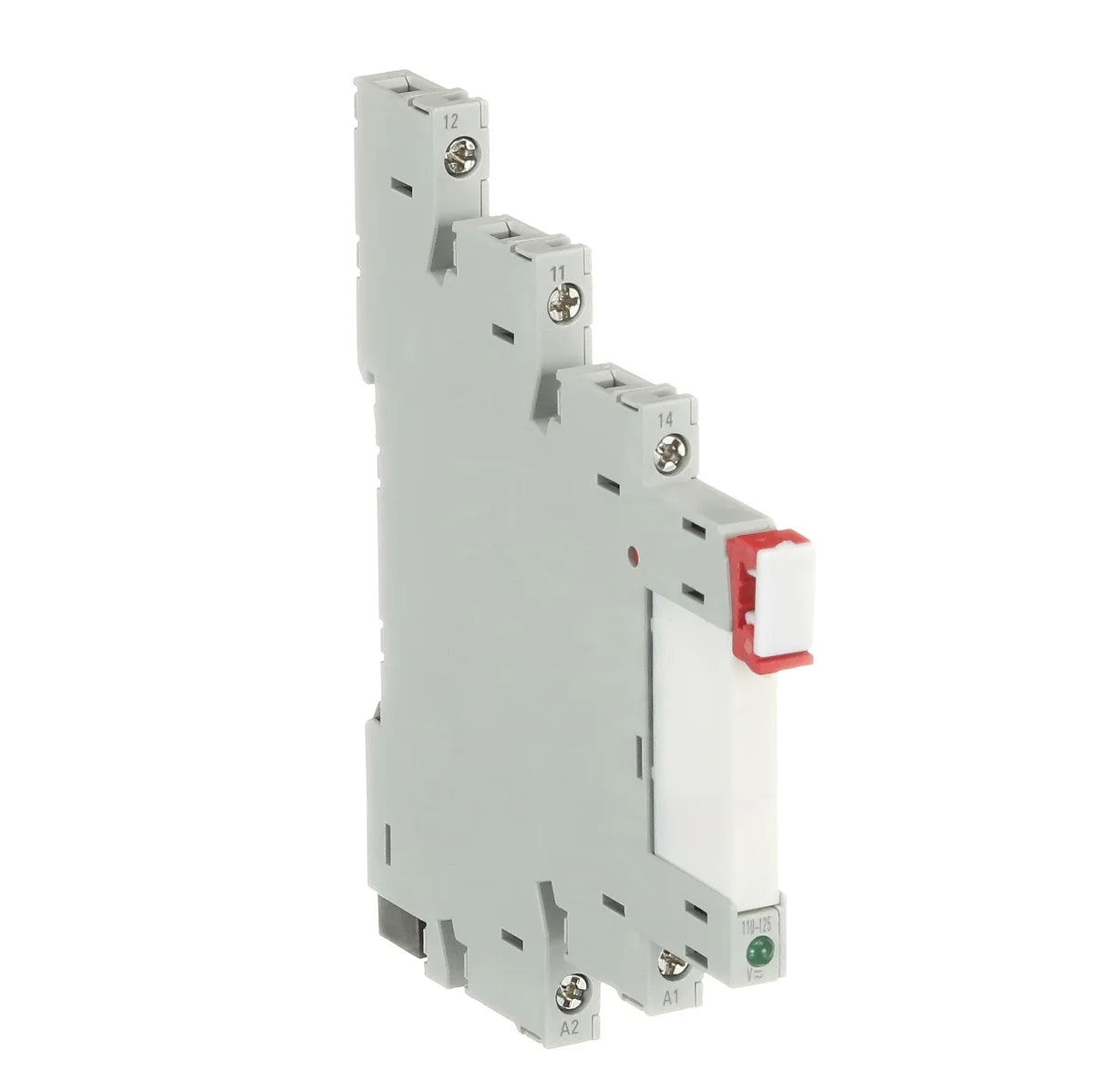

The ABB CR-S110VADC1CRS is a compact interface switching relay from the CR-S series, designed for seamless integration into industrial control panels and automation systems. SKU 1SVR405541R6110 features a 1C/O (SPDT) contact configuration rated at 6A/250VAC output, powered by a universal 110VAC/DC coil voltage — making it ideal for signal isolation, PLC output amplification, and machine control applications. Its slim 6.3 mm profile enables high-density DIN rail mounting in space-constrained enclosures.
Certifications & Standards
- CE: Conformité Européenne — meets EU safety, health, and environmental requirements
- UKCA: UK Conformity Assessed — compliant for the UK market post-Brexit
- UL 508: UL standard for industrial control equipment
- CSA: Canadian Standards Association certification
- CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
- IEC/EN 61810-1: Electromechanical elementary relays — general and safety requirements
- EN 61810-1: European harmonized relay standard
- IEC/EN 61984: Connectors — safety requirements and tests
- EN 61984: European harmonized connectors standard
- IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to RoHS
- EN 63000: European harmonized RoHS technical documentation standard
- IEC 60715: Dimensions of low-voltage switchgear and controlgear — DIN rail mounting
- REACH: Compliant with EU regulation on registration, evaluation, authorisation and restriction of chemicals
- RoHS: Restriction of Hazardous Substances — compliant with EU directive 2011/65/EU
Specification
Full specification
Dimensions 4
| Product Net Width | 6.3 mm |
|---|---|
| Product Net Height | 76.4 mm |
| Product Net Depth / Length | 88.5 mm |
| Product Net Weight | 0.03 kg |
Technical 15
| Function | Fully assembled interface relay CR-S |
|---|---|
| Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 110 V AC/DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Terminal Type | Screw Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm², Rigid 2.5 mm² |
| Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61810-1, IEC/EN 61984, UL 508 |
Technical UL/CSA 2
| Connecting Capacity UL/CSA | Flexible 14 AWG, Rigid 14 AWG |
|---|---|
| Tightening Torque UL/CSA | 4.42 in·lb |
Show all 50 specifications ↓ Show less ↑29 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405541R6110 |
|---|---|
| Type designation | CR-S110VADC1CRS |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614499326 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Environmental 1
| Ambient Air Temperature | Operation -40 ... +55 °C, Storage 0 ... +40 °C |
|---|
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4001404 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 93 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 81 mm |
| Package Level 1 Gross Weight | 0.32 kg |
| Package Level 1 EAN | 4013614486692 |
| Shipping weight | 0.32 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405541R6110
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61810-1
- IEC/EN 61984
- UL 508
Quick answers
Questions about the CR-S110VADC1CRS
What is the rated current of CR-S110VADC1CRS?
The rated current of CR-S110VADC1CRS is 6 A.
Which supply voltage is CR-S110VADC1CRS rated for?
The rated operational voltage of CR-S110VADC1CRS is 250 V AC.
What is the HS code of CR-S110VADC1CRS for customs?
The tariff (HS) code on file for CR-S110VADC1CRS is 85364900.
What is the EAN of CR-S110VADC1CRS?
The EAN (GTIN) of CR-S110VADC1CRS is 4013614499326.
Where does CR-S110VADC1CRS ship from, and how fast?
CR-S110VADC1CRS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
