- Part number
- 1SVR405521R7200
- Model no
- CR-S220/240VADC1SZ
Description
About the CR-S220/240VADC1SZ
About the CR-S220/240VADC1SZ

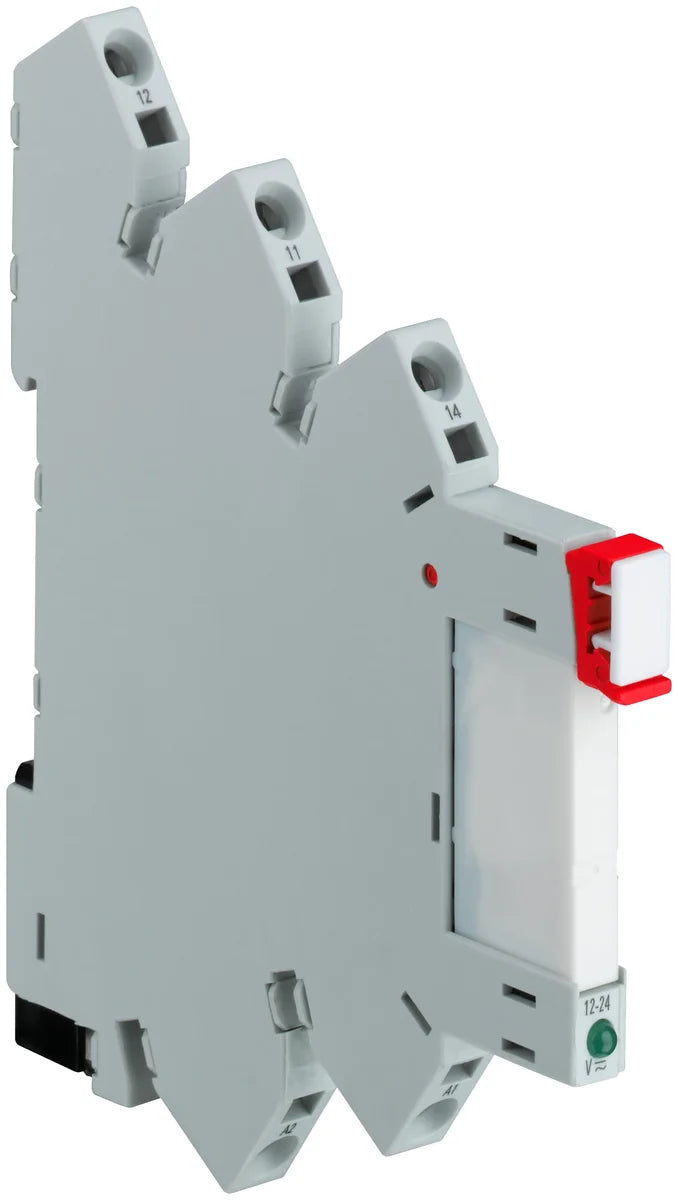

The ABB CR-S220/240VADC1SZ (SKU: 1SVR405521R7200) is a DIN rail-mounted relay socket from the CR-S series, designed to accept 1 changeover (1C/O) relay modules with a coil voltage of 220–240V AC/DC. Rated at 6A and 250V AC, the CR-S220/240VADC1SZ provides a robust, compact interface solution for industrial control panels, automation systems, and machine wiring — enabling fast relay replacement without disturbing field wiring.
Certifications & Standards
- CE: Complies with EU low-voltage and electromagnetic compatibility directives for European market use.
- UKCA: UK Conformity Assessed marking for Great Britain market compliance.
- UL 508: Listed to UL 508 for industrial control equipment — North American market acceptance.
- CAN/CSA C22.2 No.14: Certified to Canadian Standards Association requirements for industrial control equipment.
- IEC/EN 61984: Meets international standard for connectors — safety requirements and tests.
- IEC/EN 63000: Compliant with technical documentation standard for RoHS assessment of electrical and electronic equipment.
- IEC 60715: Dimensional standardization for DIN rail mounting (TH35-7.5 profile).
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU.
- REACH: Compliant with EU REACH regulation on chemical substance safety (EC No 1907/2006).
- CSA: Canadian Standards Association certified for electrical safety.
Applications & Use Cases
- Industrial automation and PLC output interfacing in control panels
- Machine wiring where relay modules require frequent maintenance or replacement
- Building automation systems requiring reliable 220–240V AC/DC switching
- Motor control centers and relay logic panels
- Process control and instrumentation cabinets
Specification
Full specification
Dimensions 4
| Product Net Width | 6.2 mm |
|---|---|
| Product Net Height | 76.6 mm |
| Product Net Depth / Length | 94.7 mm |
| Product Net Weight | 0.025 kg |
Technical 14
| Function | Accessory for interface relays CR-S |
|---|---|
| Sub-Function | Socket |
| Rated Control Supply Voltage (Us) | 220 ... 240 V AC/DC |
| Rated Operational Voltage | 250 V AC |
| Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP20, Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm², Rigid 2.5 mm² |
| Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508 |
Technical UL/CSA 4
| Connecting Capacity UL/CSA | Flexible 14 AWG, Rigid 14 AWG |
|---|---|
| Tightening Torque UL/CSA | 4.42 in·lb |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 20 ... 14 AWG, Rigid 2x 20-14 AWG, Stranded 20 ... 14 AWG |
| Flammability According to UL94 | V-0 |
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405521R7200 |
|---|---|
| Type designation | CR-S220/240VADC1SZ |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614499272 |
| eCl@ss | 27371603 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +55 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001456 - Relay socket |
|---|---|
| eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 |
| E-Number (Sweden) | 4001399 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 93 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 81 mm |
| Package Level 1 Gross Weight | 0.26 kg |
| Package Level 1 EAN | 4013614486401 |
| Shipping weight | 0.26 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405521R7200
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61984
- UL 508
Quick answers
Questions about the CR-S220/240VADC1SZ
What is the rated current of CR-S220/240VADC1SZ?
The rated current of CR-S220/240VADC1SZ is 6 A.
Which supply voltage is CR-S220/240VADC1SZ rated for?
The rated operational voltage of CR-S220/240VADC1SZ is 250 V AC.
What is the HS code of CR-S220/240VADC1SZ for customs?
The tariff (HS) code on file for CR-S220/240VADC1SZ is 85369010.
What is the EAN of CR-S220/240VADC1SZ?
The EAN (GTIN) of CR-S220/240VADC1SZ is 4013614499272.
Where does CR-S220/240VADC1SZ ship from, and how fast?
CR-S220/240VADC1SZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
