- Part number
- 1SVR405521R3200
- Model no
- CR-S012/024VADC1SZ
Description
About the CR-S012/024VADC1SZ
About the CR-S012/024VADC1SZ

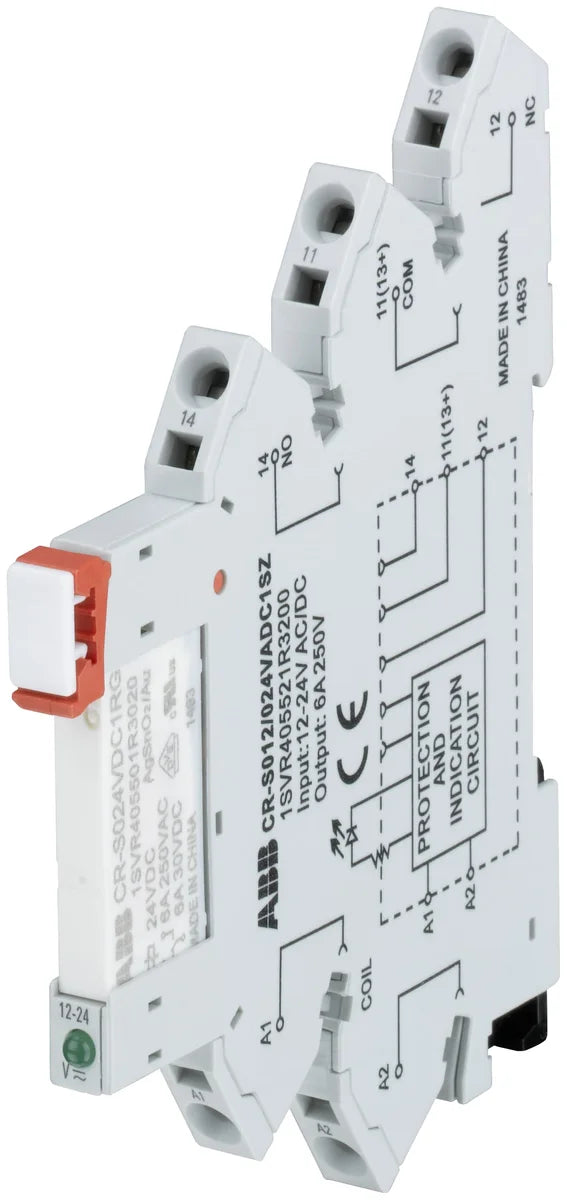

The ABB CR-S012/024VADC1SZ (SKU: 1SVR405521R3200) is a DIN rail-mounted relay socket from the CR-S series, designed to accept 1-changeover (1C/O) relay modules operating at coil voltages of 12–24V AC/DC with a rated contact voltage of 250V AC and 6A rated current. CR-S012/024VADC1SZ provides a compact, tool-free interface for industrial control panels, enabling reliable relay replacement without rewiring. Weighing only 25 g and measuring 6.2 × 76.6 × 94.7 mm, it mounts on standard TH35-7.5 DIN rail.
Certifications & Standards
- CE: Compliant with European Union directives for electrical equipment
- UKCA: UK Conformity Assessed marking for the Great Britain market
- UL 508: UL certified for industrial control equipment (USA)
- CAN/CSA C22.2 No.14: Canadian Standards Association certification for industrial control equipment
- IEC/EN 63000: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances
- IEC/EN 61984: International standard for connectors — safety requirements and tests
- IEC 60715: Standard for dimensions of low-voltage switchgear and controlgear — DIN rail mounting
- CSA: CSA Group certified for North American markets
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Restriction of Hazardous Substances compliant — lead-free, halogen-free
Applications & Use Cases
- Industrial control panels requiring plug-in relay interfaces
- Building automation and HVAC control systems
- Machine control and process automation wiring
- PLC output relay interfacing on TH35 DIN rail assemblies
- Any application requiring a 12–24V AC/DC coil, 1C/O, 250VAC/6A relay socket
Specification
Full specification
Dimensions 4
| Product Net Width | 6.2 mm |
|---|---|
| Product Net Height | 76.6 mm |
| Product Net Depth / Length | 94.7 mm |
| Product Net Weight | 0.025 kg |
Technical 14
| Function | Accessory for interface relays CR-S |
|---|---|
| Sub-Function | Socket |
| Rated Control Supply Voltage (Us) | 12 ... 24 V AC/DC |
| Rated Operational Voltage | 250 V AC |
| Terminal Type | Spring Terminals |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Insulation Voltage (Ui) | 250 V |
| Degree of Protection | IP20, Terminals IP20 |
| Connecting Capacity | Flexible 2.5 mm², Rigid 2.5 mm² |
| Tightening Torque | 0.5 N·m |
| Wire Stripping Length | 7 mm |
| Mounting Position | 1 |
| Mounting on DIN Rail | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508 |
Technical UL/CSA 4
| Connecting Capacity UL/CSA | Flexible 14 AWG, Rigid 14 AWG |
|---|---|
| Tightening Torque UL/CSA | 4.42 in·lb |
| Connecting Capacity Main Circuit UL/CSA | Flexible with Ferrule 20 ... 14 AWG, Rigid 2x 20-14 AWG, Stranded 20 ... 14 AWG |
| Flammability According to UL94 | V-0 |
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405521R3200 |
|---|---|
| Type designation | CR-S012/024VADC1SZ |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614499210 |
| eCl@ss | 27371603 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369010 |
Environmental 2
| Ambient Air Temperature | Operation -40 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001456 - Relay socket |
|---|---|
| eClass | V11.0 : 27371603 |
| UNSPSC | 39122335 |
| E-Number (Sweden) | 4001393 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 93 mm |
| Package Level 1 Depth / Length | 66 mm |
| Package Level 1 Height | 81 mm |
| Package Level 1 Gross Weight | 0.26 kg |
| Package Level 1 EAN | 4013614486340 |
| Shipping weight | 0.26 kg |
| Ships from | Türkiye |
| Dispatch | — |
| Stock | On request |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405521R3200
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CAN/CSA C22.2 No.14
- IEC/EN 63000
- IEC/EN 61984
- UL 508
Quick answers
Questions about the CR-S012/024VADC1SZ
What is the rated current of CR-S012/024VADC1SZ?
The rated current of CR-S012/024VADC1SZ is 6 A.
Which supply voltage is CR-S012/024VADC1SZ rated for?
The rated operational voltage of CR-S012/024VADC1SZ is 250 V AC.
What is the HS code of CR-S012/024VADC1SZ for customs?
The tariff (HS) code on file for CR-S012/024VADC1SZ is 85369010.
What is the EAN of CR-S012/024VADC1SZ?
The EAN (GTIN) of CR-S012/024VADC1SZ is 4013614499210.
Where does CR-S012/024VADC1SZ ship from, and how fast?
CR-S012/024VADC1SZ ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival.
