Part number
1SVR405521R3100
Model no
CR-S012/024VADC1SS
$7.10 In stock · 11 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-S

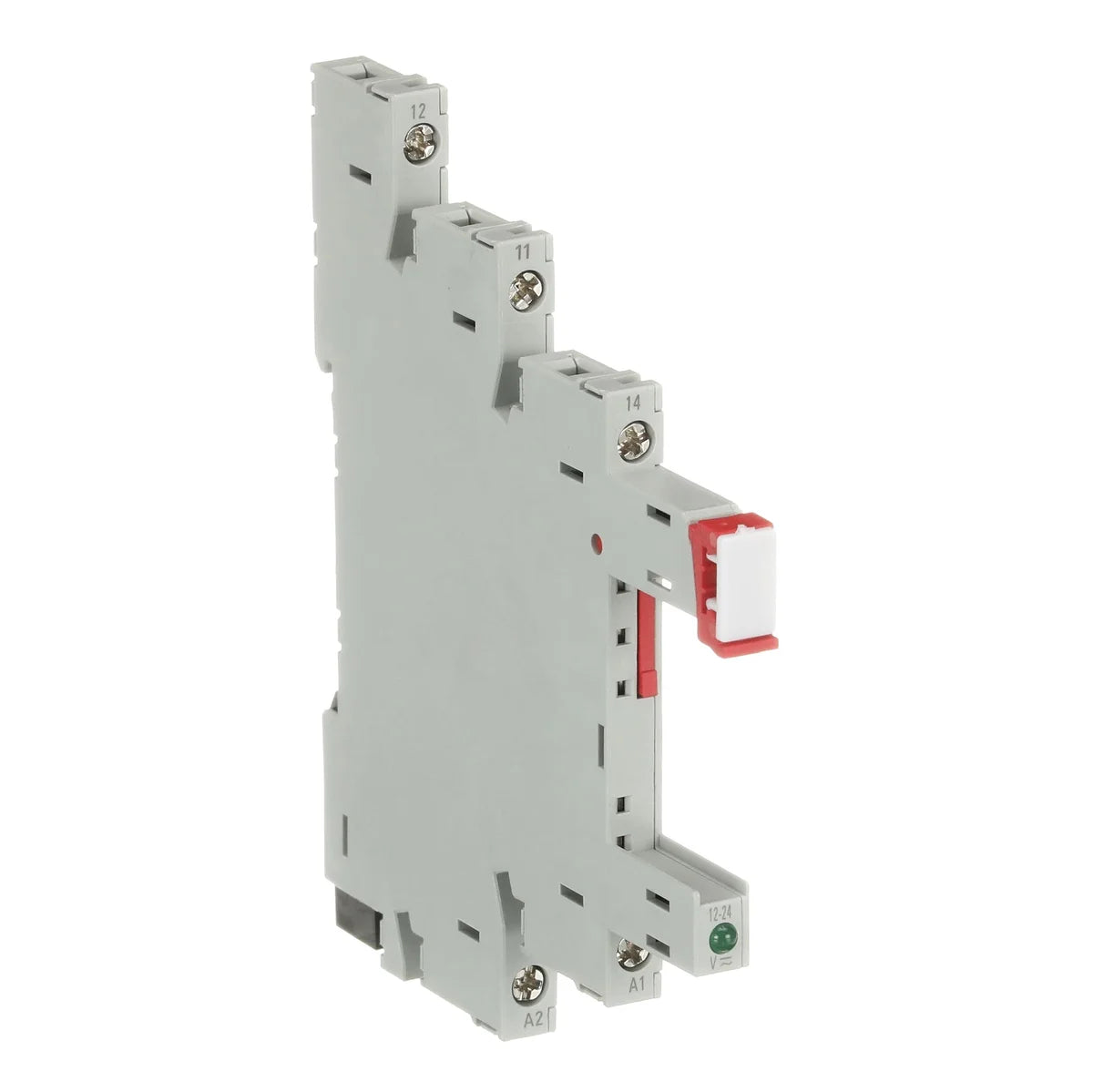

ABB 1SVR405521R3100 CR-S012/024VADC1SS 1C/O 6A 250VAC DIN Rail Relay Socket

Rated current
6 A
Rated operational voltage
250 V AC
Poles
1P
Degree of protection
IP20
EAN
4013614499203
Description

About the CR-S012/024VADC1SS

The ABB CR-S012/024VADC1SS (SKU: 1SVR405521R3100) is a DIN rail-mounted relay socket from the CR-S series, designed to accept 1 changeover (1C/O) relay modules with a coil voltage range of 12–24V AC/DC and a rated switching capacity of 6A at 250V AC. This compact socket measures just 6.3 × 76.4 × 88.5 mm and mounts directly onto standard TH35-7.5 DIN rail, making it ideal for space-efficient control panel builds in industrial automation and process control applications. With broad international certifications including CE, UL508, VDE, CSA, and RoHS compliance, the CR-S012/024VADC1SS is a globally accepted solution for relay interface wiring.

Certifications & Standards

  • CE: Complies with European Union directives for electrical equipment safety and EMC
  • UKCA: UK Conformity Assessed — meets Great Britain market requirements
  • UL508: Listed per UL standard for industrial control equipment (USA)
  • CSA: Canadian Standards Association certification for electrical safety
  • CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
  • IEC/EN 63000: Technical documentation standard for RoHS compliance assessment
  • IEC/EN 61984: Standard for connectors — safety requirements and tests
  • IEC 60715: Dimensional requirements for DIN rail mounting of electrical equipment
  • VDE: German electrical engineering association approval for safety and quality
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances

Applications & Use Cases

  • Relay interface wiring in industrial control panels and automation cabinets
  • PLC output signal switching via interposing relay sockets
  • Process control systems requiring compact DIN rail relay mounting
  • Machine building and OEM equipment with 12–24V AC/DC control circuits
  • Building automation and HVAC control panel assemblies
Specification

Full specification

52 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 6.3 mm
Product Net Height 76.4 mm
Product Net Depth / Length 88.5 mm
Product Net Weight 0.025 kg

Technical 14

Function Accessory for interface relays CR-S
Sub-Function Socket
Rated Control Supply Voltage (Us) 12 ... 24 V AC/DC
Rated Operational Voltage 250 V AC
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 6 A
Rated Insulation Voltage (Ui) 250 V
Degree of Protection IP20, Terminals IP20
Connecting Capacity Flexible 2.5 mm², Rigid 2.5 mm²
Tightening Torque 0.5 N·m
Wire Stripping Length 7 mm
Mounting Position 1
Mounting on DIN Rail TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508

Technical UL/CSA 4

Connecting Capacity UL/CSA Flexible 14 AWG, Rigid 14 AWG
Tightening Torque UL/CSA 4.42 in·lb
Connecting Capacity Main Circuit UL/CSA Flexible with Ferrule 2x 20 ... 18 AWG, Rigid 2x 20-16 AWG, Stranded 2 x 20-16 AWG
Flammability According to UL94 V-0
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405521R3100
Type designation CR-S012/024VADC1SS
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614499203
eCl@ss 27371603
Minimum Order Quantity 10 piece
Customs Tariff Number 85369010

Environmental 2

Ambient Air Temperature Operation -40 ... +70 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001456 - Relay socket
eClass V11.0 : 27371603
UNSPSC 39122335
E-Number (Sweden) 4001392

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 93 mm
Package Level 1 Depth / Length 66 mm
Package Level 1 Height 81 mm
Package Level 1 Gross Weight 0.26 kg
Package Level 1 EAN 4013614486333
Shipping weight 0.26 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405521R3100

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • VDE
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61984
  • UL 508
Quick answers

Questions about the CR-S012/024VADC1SS

What is the rated current of CR-S012/024VADC1SS?

The rated current of CR-S012/024VADC1SS is 6 A.

Which supply voltage is CR-S012/024VADC1SS rated for?

The rated operational voltage of CR-S012/024VADC1SS is 250 V AC.

What is the HS code of CR-S012/024VADC1SS for customs?

The tariff (HS) code on file for CR-S012/024VADC1SS is 85369010.

What is the EAN of CR-S012/024VADC1SS?

The EAN (GTIN) of CR-S012/024VADC1SS is 4013614499203.

Where does CR-S012/024VADC1SS ship from, and how fast?

CR-S012/024VADC1SS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
