Part number
1SVR405521R1100
Model no
CR-S006/024VDC1SS
$7.38 Critical stock Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
CR-S

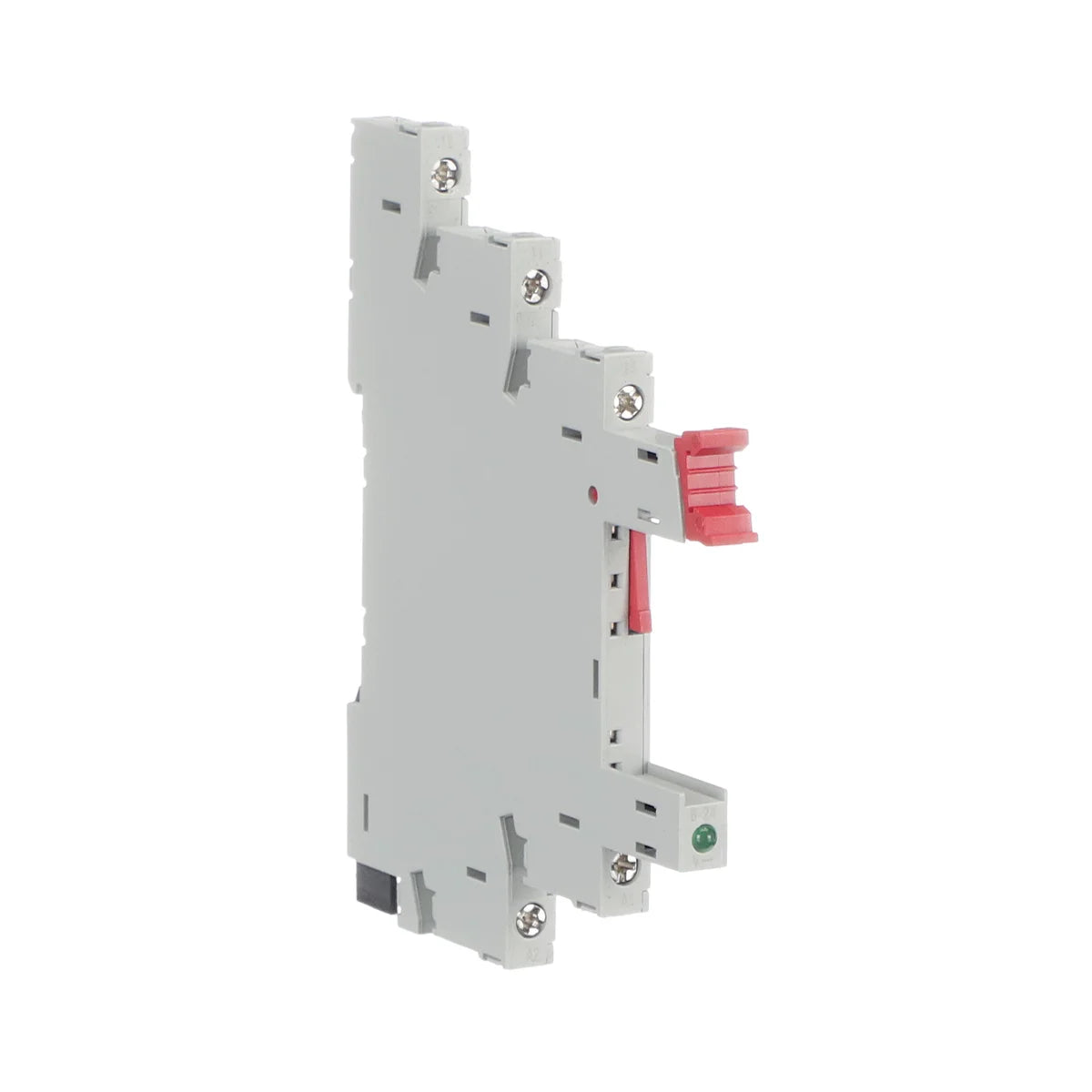

ABB 1SVR405521R1100 CR-S006/024VDC1SS 1CO 6A 250V AC DIN Rail Relay Socket

Rated current
6 A
Rated operational voltage
250 V AC
Poles
1P
Degree of protection
IP20
EAN
4013614499180
Description

About the CR-S006/024VDC1SS

The ABB CR-S006/024VDC1SS (SKU: 1SVR405521R1100) is a DIN rail-mounted relay socket from the CR-S series, designed to accommodate 6A single changeover (1CO) relay modules with a coil voltage range of 6–24V DC and a 250V AC rated switching voltage. Compact at just 6.3 mm wide, the CR-S006/024VDC1SS fits TH35-7.5 DIN rail installations and is ideally suited for control panel assemblies in industrial automation and building automation applications.

Certifications & Standards

  • CE: Compliant with European Union directives for electrical equipment
  • UKCA: UK Conformity Assessed marking for the Great Britain market
  • RoHS: Restriction of Hazardous Substances compliant
  • REACH: Compliant with EU REACH chemical safety regulation
  • VDE: Verified and certified by the German electrical engineering association
  • CSA / CAN/CSA C22.2 No.14: Canadian Standards Association certified for industrial control equipment
  • UL 508: Listed for industrial control equipment per UL508 (referenced under combined certification)
  • IEC/EN 63000: Technical documentation for evaluation of electrical and electronic equipment with respect to RoHS
  • IEC/EN 61984: Connectors — safety requirements and tests
  • IEC 60715: Dimensions of low-voltage switchgear and controlgear — standardized mounting on rails

Applications & Use Cases

  • Control panel relay switching in industrial automation systems
  • Building management and HVAC control circuits
  • PLC output interfacing where compact DIN rail footprint is required
  • Signal switching in machine control and process automation
  • General-purpose relay socket applications requiring 6–24V DC coil voltage

Frequently Asked Questions

Q: What relay types are compatible with the CR-S006/024VDC1SS socket?
A: The CR-S006/024VDC1SS is designed for ABB CR-S series relay modules with a 6–24V DC coil voltage and a 1CO contact configuration.

Q: What DIN rail size does this socket support?
A: The CR-S006/024VDC1SS mounts on TH35-7.5 DIN rail (35 mm wide, 7.5 mm deep), the most common standard in industrial control panels.

Q: Is this relay socket suitable for AC coil relays?
A: No. The CR-S006/024VDC1SS is specified for DC coil voltages in the 6–24V DC range. The 250V AC rating refers to the load switching voltage, not the coil supply.

Specification

Full specification

52 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 6.3 mm
Product Net Height 76.4 mm
Product Net Depth / Length 88.5 mm
Product Net Weight 0.025 kg

Technical 14

Function Accessory for interface relays CR-S
Sub-Function Socket
Rated Control Supply Voltage (Us) 6 ... 24 V DC
Rated Operational Voltage 250 V AC
Terminal Type Screw Terminals
Rated Operational Current AC-12 (Ie) (230 V) 6 A
Rated Insulation Voltage (Ui) 250 V
Degree of Protection IP20, Terminals IP20
Connecting Capacity Flexible 2.5 mm², Rigid 2.5 mm²
Tightening Torque 0.5 N·m
Wire Stripping Length 7 mm
Mounting Position 1
Mounting on DIN Rail TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Standards CAN/CSA C22.2 No.14, IEC/EN 63000, IEC/EN 61984, UL 508

Technical UL/CSA 4

Connecting Capacity UL/CSA Flexible 14 AWG, Rigid 14 AWG
Tightening Torque UL/CSA 4.42 in·lb
Connecting Capacity Main Circuit UL/CSA Flexible with Ferrule 2x 20 ... 18 AWG, Rigid 2x 20-16 AWG, Stranded 2 x 20-16 AWG
Flammability According to UL94 V-0
Show all 52 specifications ↓ Show less ↑30 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SVR405521R1100
Type designation CR-S006/024VDC1SS
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 4013614499180
eCl@ss 27371603
Minimum Order Quantity 10 piece
Customs Tariff Number 85369010

Environmental 2

Ambient Air Temperature Operation -40 ... +70 °C, Storage -40 ... +85 °C
Maximum Operating Altitude Permissible Without Derating 2000 m

Material Compliance 4

REACH Declaration 1SVD981001-4501
RoHS Declaration 1SVD981001-4401
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006536

External Classifications and Standards 4

ETIM 7 EC001456 - Relay socket
eClass V11.0 : 27371603
UNSPSC 39122335
E-Number (Sweden) 4001390

Logistics 10

Package Level 1 Units box 10 piece
Package Level 1 Width 93 mm
Package Level 1 Depth / Length 66 mm
Package Level 1 Height 81 mm
Package Level 1 Gross Weight 0.26 kg
Package Level 1 EAN 4013614486319
Shipping weight 0.26 kg
Ships from Türkiye
Dispatch 18 Nov
Stock Critical stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SVR405521R1100

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • VDE
  • CAN/CSA C22.2 No.14
  • IEC/EN 63000
  • IEC/EN 61984
  • UL 508
Quick answers

Questions about the CR-S006/024VDC1SS

What is the rated current of CR-S006/024VDC1SS?

The rated current of CR-S006/024VDC1SS is 6 A.

Which supply voltage is CR-S006/024VDC1SS rated for?

The rated operational voltage of CR-S006/024VDC1SS is 250 V AC.

What is the HS code of CR-S006/024VDC1SS for customs?

The tariff (HS) code on file for CR-S006/024VDC1SS is 85369010.

What is the EAN of CR-S006/024VDC1SS?

The EAN (GTIN) of CR-S006/024VDC1SS is 4013614499180.

Where does CR-S006/024VDC1SS ship from, and how fast?

CR-S006/024VDC1SS ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
