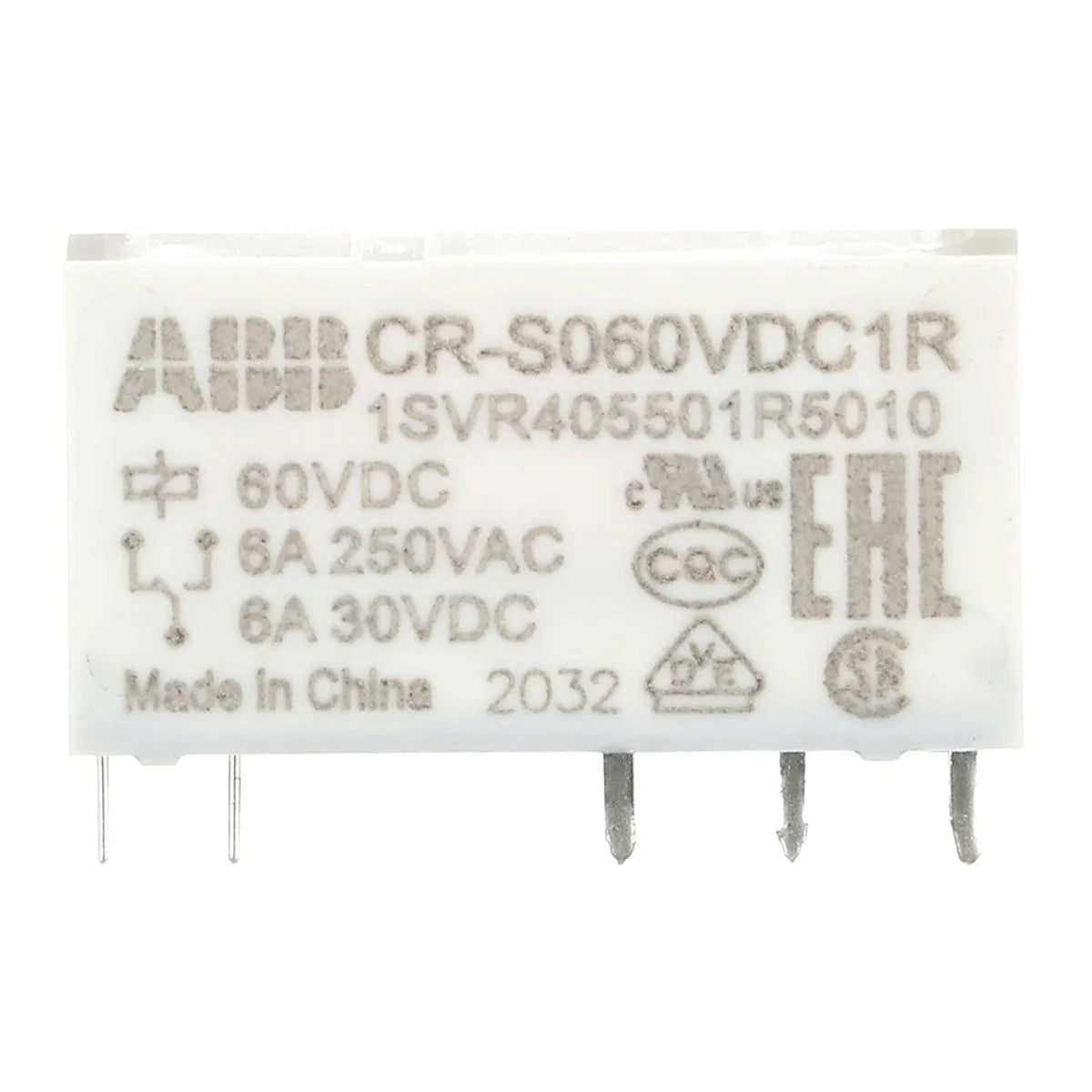

ABB 1SVR405501R5010 CR-S060VDC1R Pluggable Interface Switching Relay 1C/O 60VDC Coil 6A 250VAC Output

The ABB CR-S060VDC1R (SKU: 1SVR405501R5010) is a pluggable interface switching relay from the CR-S series, featuring a 60VDC coil voltage, a 1C/O (SPDT) contact configuration, and a rated output of 6A at 250VAC. Designed for DIN rail mounting via socket or direct PCB installation, the CR-S060VDC1R delivers reliable signal switching for control panels and industrial automation systems in a compact 5mm × 15mm × 28mm footprint.

Technical Specifications

Certifications & Standards

• CE: Conforms to European Union safety, health, and environmental protection requirements
• UL 508: Certified for industrial control equipment per Underwriters Laboratories standard
• UL 94-V0: Flame retardant material classification for plastics in electrical devices
• CSA: Canadian Standards Association approval for electrical safety
• CAN/CSA C22.2 No.14: Canadian standard for industrial control equipment
• IEC/EN 61810-1: Electromechanical elementary relays — general and safety requirements
• EN 61810-1: European harmonized standard for electromechanical elementary relays
• VDE: Verband der Elektrotechnik approval for electrical equipment safety (Germany)
• REACH: Compliant with EU REACH regulation on chemical substances
• RoHS: Restriction of Hazardous Substances compliant — free from restricted materials

Applications & Use Cases

• Signal-level switching in PLC and DCS control panels
• Interface between low-power control circuits and higher-load output devices
• Industrial automation and machine control systems
• Building automation and HVAC control panels
• Process control and instrumentation signal isolation

Frequently Asked Questions

Q: What coil voltage does the CR-S060VDC1R operate on?
A: The CR-S060VDC1R is energised by a 60V DC coil voltage.

Q: What is the maximum switching current and voltage?
A: The output contact is rated at 6A and 250V AC.

Q: How is this relay mounted?
A: The CR-S060VDC1R can be mounted on a DIN rail via a compatible socket or directly onto a PCB.

Q: Is the CR-S060VDC1R RoHS and CE compliant?
A: Yes, this relay carries both RoHS and CE certifications, along with UL 508, CSA, IEC/EN 61810-1, VDE, REACH, and UL 94-V0 approvals.
