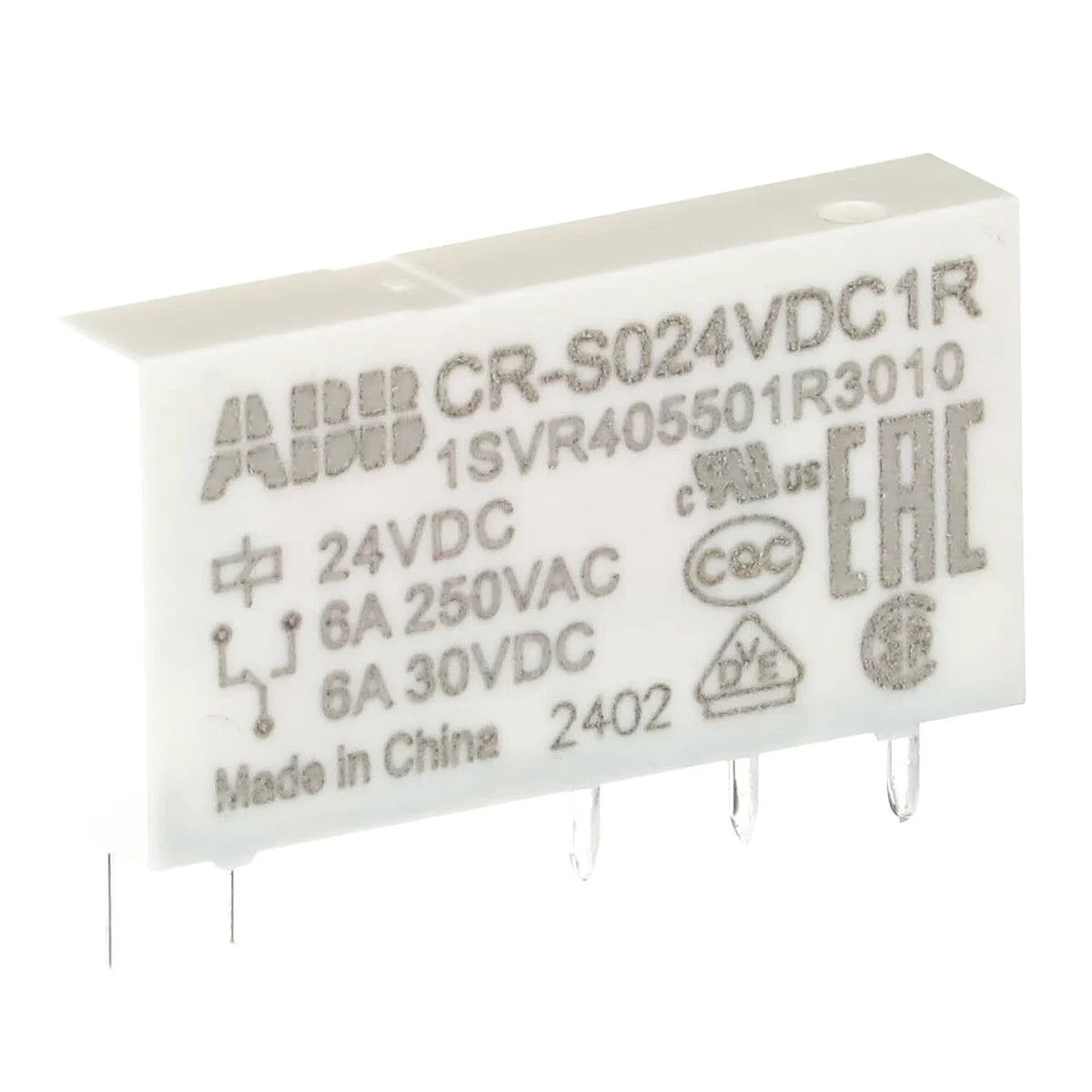

CR-SABB 1SVR405501R3010 CR-S024VDC1R Pluggable Interface Switching Relay 1C/O 24VDC Coil 6A 250VAC DIN Rail
Description
About the CR-S024VDC1R
About the CR-S024VDC1R
The ABB CR-S024VDC1R (SKU: 1SVR405501R3010) is a pluggable interface switching relay from the CR-S series, designed for reliable signal switching in industrial control panels and automation systems. Featuring a 1C/O (SPDT) contact configuration, a 24VDC coil, and a rated output of 6A at 250VAC, the CR-S024VDC1R delivers compact, dependable performance in a 5mm × 15mm × 28mm form factor suitable for DIN rail socket or direct PCB mounting.
Certifications & Standards
- CE: Compliant with European Union directives for electrical equipment
- UL 508: Listed for industrial control equipment (Underwriters Laboratories)
- UL 94-V0: Flame retardancy rating for enclosure and housing materials
- CSA: Canadian Standards Association certified for electrical safety
- CAN/CSA C22.2 No.14: CSA standard for industrial control equipment (Canada)
- UKCA: UK Conformity Assessed marking for the United Kingdom market
- IEC/EN 61810-1: International/European standard for electromechanical elementary relays
- EN 61810-1: European standard for elementary relays — general and safety requirements
- VDE: Certified by Verband der Elektrotechnik (German electrical engineering association)
- REACH: Compliant with EU REACH regulation on chemical substance safety
- RoHS: Restriction of Hazardous Substances compliant — free from restricted materials
Applications & Use Cases
- Signal interface and level shifting in industrial control panels
- PLC output isolation and load switching in automation systems
- Machine tool and process control circuits requiring compact relay switching
- Building automation, HVAC control, and facility management panels
- General-purpose switching in electrical cabinets where DIN rail or PCB mounting is required
Frequently Asked Questions
Q: What is the coil voltage of the CR-S024VDC1R?
A: The CR-S024VDC1R operates on a 24VDC coil voltage, making it compatible with standard PLC and control system outputs.
Q: Can the CR-S024VDC1R be mounted directly on a PCB?
A: Yes. The CR-S024VDC1R supports both DIN rail mounting via a compatible socket and direct PCB mounting, offering installation flexibility.
Q: What is the maximum switching current and voltage?
A: The relay is rated for 6A at 250VAC on its output contact.
Q: Is the CR-S024VDC1R RoHS and REACH compliant?
A: Yes. The ABB CR-S024VDC1R carries both RoHS and REACH compliance, confirming it meets EU environmental and chemical safety regulations.
Specification
Full specification
Dimensions 4
| Product Net Width | 5 mm |
|---|---|
| Product Net Height | 15 mm |
| Product Net Depth / Length | 28 mm |
| Product Net Weight | 0.005 kg |
Technical 12
| Function | Pluggable slim interface relay CR-S |
|---|---|
| Sub-Function | Relay with standard contacts |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Output | 1 C/O (SPDT) Contact |
| Output Signal | 250 V / 6 A |
| Rated Operational Current AC-12 (Ie) | (230 V) 6 A |
| Rated Operational Current DC-12 (Ie) | (24 V) 6 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 1 A |
| Degree of Protection | IP20 |
| Overvoltage Category | III |
| Pollution Degree | 2 |
| Standards | CAN/CSA C22.2 No.14, IEC/EN 61810-1, UL 508 |
Environmental 1
| Ambient Air Temperature | Operation -40 ... +85 °C, Storage 0 ... +40 °C |
|---|
Show all 45 specifications ↓ Show less ↑28 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SVR405501R3010 |
|---|---|
| Type designation | CR-S024VDC1R |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 4013614499128 |
| eCl@ss | 27371601 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85364900 |
Material Compliance 4
| REACH Declaration | 1SVD981001-4501 |
|---|---|
| RoHS Declaration | 1SVD981001-4401 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006536 |
External Classifications and Standards 4
| ETIM 7 | EC001437 - Switching relay |
|---|---|
| eClass | V11.0 : 27371601 |
| UNSPSC | 39122331 |
| E-Number (Sweden) | 4001384 |
Logistics 10
| Package Level 1 Units | box 10 piece |
|---|---|
| Package Level 1 Width | 300 mm |
| Package Level 1 Depth / Length | 7.4 mm |
| Package Level 1 Height | 23.7 mm |
| Package Level 1 Gross Weight | 0.06 kg |
| Package Level 1 EAN | 4013614486456 |
| Shipping weight | 0.06 kg |
| Ships from | Türkiye |
| Dispatch | 11 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SVR405501R3010
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- RoHS
- CAN/CSA C22.2 No.14
- IEC/EN 61810-1
- UL 508
Quick answers
Questions about the CR-S024VDC1R
Which supply voltage is CR-S024VDC1R rated for?
The rated operational voltage of CR-S024VDC1R is 250 V AC.
What is the HS code of CR-S024VDC1R for customs?
The tariff (HS) code on file for CR-S024VDC1R is 85364900.
What is the EAN of CR-S024VDC1R?
The EAN (GTIN) of CR-S024VDC1R is 4013614499128.
Where does CR-S024VDC1R ship from, and how fast?
CR-S024VDC1R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
