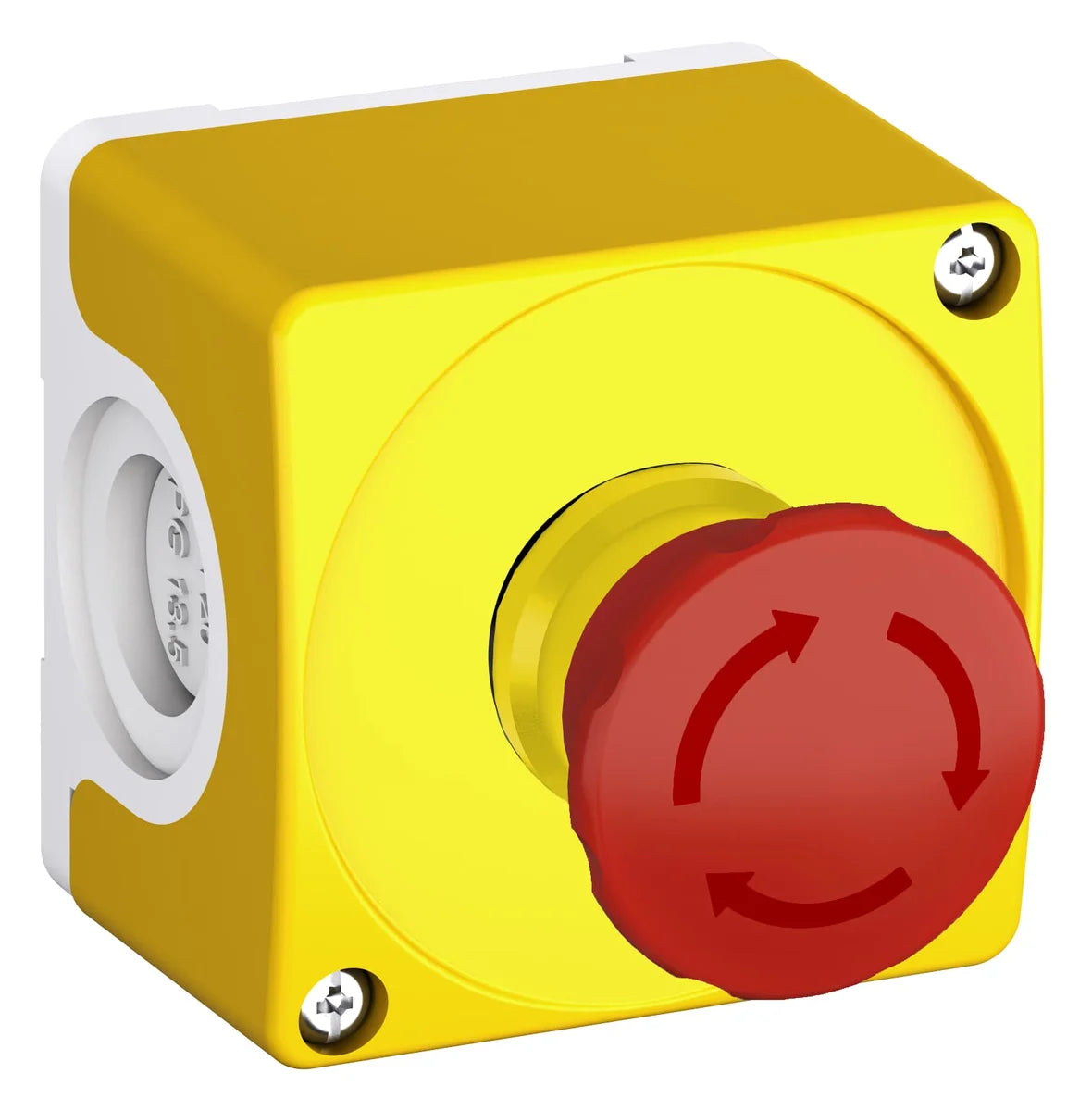

CEPY1ABB 1SFA619821R1001 CEPY1-1001 24-300V Horizontally Mounted Control Circuit Devices Combination in Enclosure
Description
About the CEPY1-1001
About the CEPY1-1001
The ABB CEPY1-1001 (SKU: 1SFA619821R1001) is a control circuit devices combination in enclosure designed for reliable integration of control circuit components in industrial automation and control panel applications. Rated for voltages from 24 to 300 V and horizontally mounted, the CEPY1-1001 provides a compact, versatile housing solution measuring 65 x 79 x 65 mm and weighing just 0.105 kg, making it suitable for space-conscious installations.
Certifications & Standards
- CE: Compliant with European Union directives for electrical equipment
- UKCA: UK Conformity Assessed — meets Great Britain market requirements
- CCC: China Compulsory Certification for the Chinese market
- RoHS: Restriction of Hazardous Substances — free from restricted materials
- REACH: Compliant with EU chemical safety regulations
- NEMA Type 1: Indoor use — protection against contact with enclosed equipment
- NEMA Type 12: Industrial use — protection against dust, dirt, and dripping non-corrosive liquids
- NEMA Type 13: Indoor use — protection against dust, spraying water, oil, and non-corrosive coolants
- NEMA Type 3R: Outdoor use — protection against falling rain, sleet, and ice formation
- NEMA Type 4: Indoor/outdoor — protection against windblown dust and rain, splashing water, and hose-directed water
- NEMA Type 4X: Indoor/outdoor — same as Type 4 plus corrosion resistance
- EAC: Eurasian Conformity — certified for the Eurasian Economic Union market
Applications & Use Cases
- Control panel assemblies requiring pre-wired, enclosed control circuit device combinations
- Industrial automation systems where compact, horizontally mounted enclosures are required
- Machine building and OEM applications needing broad voltage compatibility (24–300 V)
- Environments requiring NEMA-rated enclosures for protection against dust, moisture, and corrosion
- Global projects demanding multi-market certification (CE, UKCA, CCC, EAC)
Specification
Full specification
Dimensions 4
| Product Net Width | 65 mm |
|---|---|
| Product Net Depth / Length | 79 mm |
| Product Net Height | 65 mm |
| Product Net Weight | 0.105 kg |
Technical 7
| Accessory Type | Enclosure |
|---|---|
| Color | Yellow/Light grey |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Housing Material | Plastic |
| Number of Auxiliary Contacts NC | 2 |
| Power Loss | Maximum 1 W |
| Rated Operational Voltage | 24 ... 300 V |
Environmental 4
| Ambient Air Temperature | Operation -30 ... 70 °C, Storage -40 ... +85 °C |
|---|---|
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Housing IP69K, Housing IP66, Housing IP67, Terminals IP20 |
| Material | Plastic |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Show all 47 specifications ↓ Show less ↑32 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SFA619821R1001 |
|---|---|
| Type designation | CEPY1-1001 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500358108 |
| eCl@ss | 27371216 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85369001 |
| Product Main Type | CEPY1 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| eClass | V11.0 : 27371216 |
|---|---|
| E-Number (Sweden) | 3711610 |
| ETIM 6 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 7 | EC000225 - Control circuit devices combination in enclosure |
| UNSPSC | 39121326 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 100 mm |
| Package Level 1 Depth / Length | 100 mm |
| Package Level 1 Height | 78 mm |
| Package Level 1 Gross Weight | 0.138 kg |
| Package Level 1 EAN | 7320500358108 |
| Shipping weight | 0.138 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619821R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the CEPY1-1001
Which supply voltage is CEPY1-1001 rated for?
The rated operational voltage of CEPY1-1001 is 24–300 V AC.
What is the HS code of CEPY1-1001 for customs?
The tariff (HS) code on file for CEPY1-1001 is 85369001.
What is the EAN of CEPY1-1001?
The EAN (GTIN) of CEPY1-1001 is 7320500358108.
Where does CEPY1-1001 ship from, and how fast?
CEPY1-1001 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
