- Part number
- 1SFA619402R1008
- Model no
- CL-100C
Description
About the CL-100C
About the CL-100C

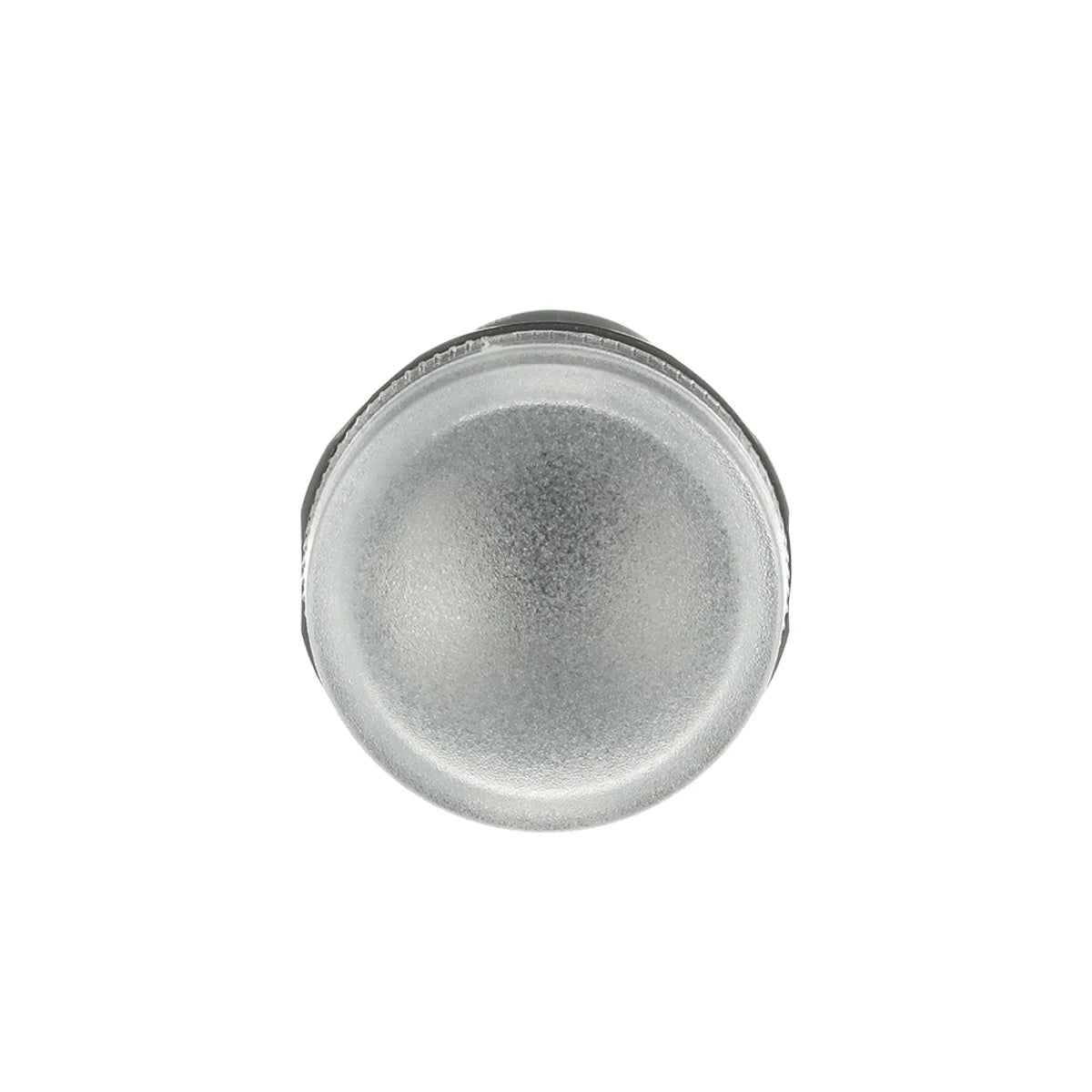

The ABB CL-100C (SKU: 1SFA619402R1008) is a Compact Series pilot light designed for reliable visual signalling in industrial control panels and automation systems. Rated at 240V, the CL-100C delivers clear status indication in demanding electrical environments. Compact in footprint — just 30 mm × 30 mm × 55 mm and weighing only 18 g — it integrates easily into panel builds with minimal space requirements.
Certifications & Standards
- CE: Meets European Union safety, health, and environmental protection requirements
- UKCA: UK Conformity Assessed — compliant for Great Britain market
- CCC: China Compulsory Certification for the Chinese market
- CSA: Canadian Standards Association certified for North American markets
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Waste Electrical and Electronic Equipment Directive compliant — supports responsible disposal and recycling
Applications & Use Cases
- Control panel status indication in industrial automation systems
- Machine operator interfaces requiring clear visual feedback
- Motor control centres (MCCs) and distribution boards
- Process control equipment and SCADA panel assemblies
- OEM panel builders requiring compact, certified pilot devices
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.018 kg |
Technical 17
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Clear |
| Illumination | Illuminated |
| Lamp Type | Ba9s |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Frequency (f) | Supply Circuit 50 60 Hz |
| Rated Operational Voltage | Maximum 240 V |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 1.5 A, (220 / 240 V) 1 A |
| Power Loss | Maximum 3.5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Suitable For | Bulb 3W max. |
| Suitable for Product Class | Pilot Devices |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 54 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619402R1008 |
|---|---|
| Type designation | CL-100C |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500555873 |
| eCl@ss | 27371223 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC000272 - Indicator light complete |
|---|---|
| ETIM 7 | EC000272 - Indicator light complete |
| eClass | V11.0 : 27371223 |
| UNSPSC | 39121534 |
| E-Number (Sweden) | 3711210 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 235 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.18 kg |
| Package Level 1 EAN | 7320500204160 |
| Shipping weight | 0.18 kg |
| Ships from | Türkiye |
| Dispatch | 18 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619402R1008
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
Quick answers
Questions about the CL-100C
Which supply voltage is CL-100C rated for?
The rated operational voltage of CL-100C is 240 V AC.
What is the HS code of CL-100C for customs?
The tariff (HS) code on file for CL-100C is 8536619090.
What is the EAN of CL-100C?
The EAN (GTIN) of CL-100C is 7320500555873.
Where does CL-100C ship from, and how fast?
CL-100C ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
