- Part number
- 1SFA619402R1005
- Model no
- CL-100W
Description
About the CL-100W
About the CL-100W

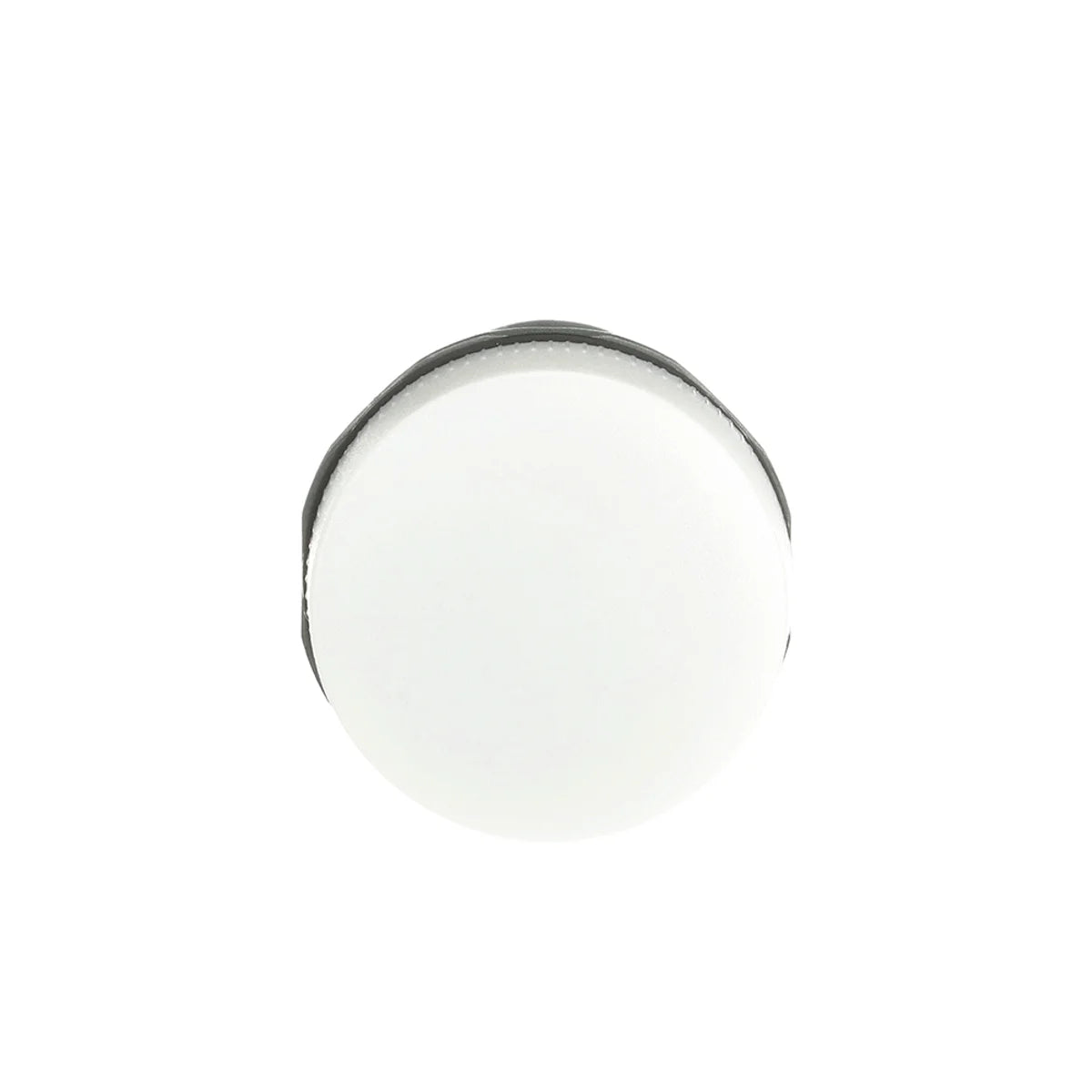

The ABB CL-100W pilot light (SKU: 1SFA619402R1005) is a 240V rated panel-mount indicator lamp from the ABB Compact Range, designed for reliable visual signalling in control panels, industrial automation systems, and machine interfaces. Compact and lightweight at just 18 g, the CL-100W delivers clear status indication where robust and certified performance is essential for industrial environments.
Certifications & Standards
- CE: Compliant with European Union safety, health, and environmental protection requirements
- UKCA: UK Conformity Assessed marking for Great Britain market compliance
- RoHS: Restriction of Hazardous Substances directive compliant — free from restricted hazardous materials
- REACH: Compliant with EU REACH regulation on chemical safety
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment directive for responsible end-of-life disposal
- CCC: China Compulsory Certification — approved for the Chinese market
- CSA: Canadian Standards Association certified for North American safety requirements
Applications & Use Cases
- Control panel status indication in industrial automation and manufacturing environments
- Machine interface panels requiring reliable visual signalling at 240V AC supply
- Process control cabinets in oil & gas, water treatment, and utilities sectors
- Building automation and HVAC control boards
- Motor control centres (MCCs) and switchgear assemblies
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.018 kg |
Technical 17
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | White |
| Illumination | Illuminated |
| Lamp Type | Ba9s |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Frequency (f) | Supply Circuit 60 50 Hz |
| Rated Operational Voltage | Maximum 240 V |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 1.5 A, (220 / 240 V) 1 A |
| Power Loss | Maximum 3.5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Suitable For | Bulb 3W max. |
| Suitable for Product Class | Pilot Devices |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 54 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619402R1005 |
|---|---|
| Type designation | CL-100W |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500555866 |
| eCl@ss | 27371223 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC000272 - Indicator light complete |
|---|---|
| ETIM 7 | EC000272 - Indicator light complete |
| eClass | V11.0 : 27371223 |
| UNSPSC | 39121534 |
| E-Number (Sweden) | 3711208 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 235 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.18 kg |
| Package Level 1 EAN | 7320500204153 |
| Shipping weight | 0.18 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619402R1005
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
Quick answers
Questions about the CL-100W
Which supply voltage is CL-100W rated for?
The rated operational voltage of CL-100W is 240 V AC.
What is the HS code of CL-100W for customs?
The tariff (HS) code on file for CL-100W is 8536619090.
What is the EAN of CL-100W?
The EAN (GTIN) of CL-100W is 7320500555866.
Where does CL-100W ship from, and how fast?
CL-100W ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
