- Part number
- 1SFA619402R1004
- Model no
- CL-100L
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- CSA
- RoHS
- UKCA
- CCC

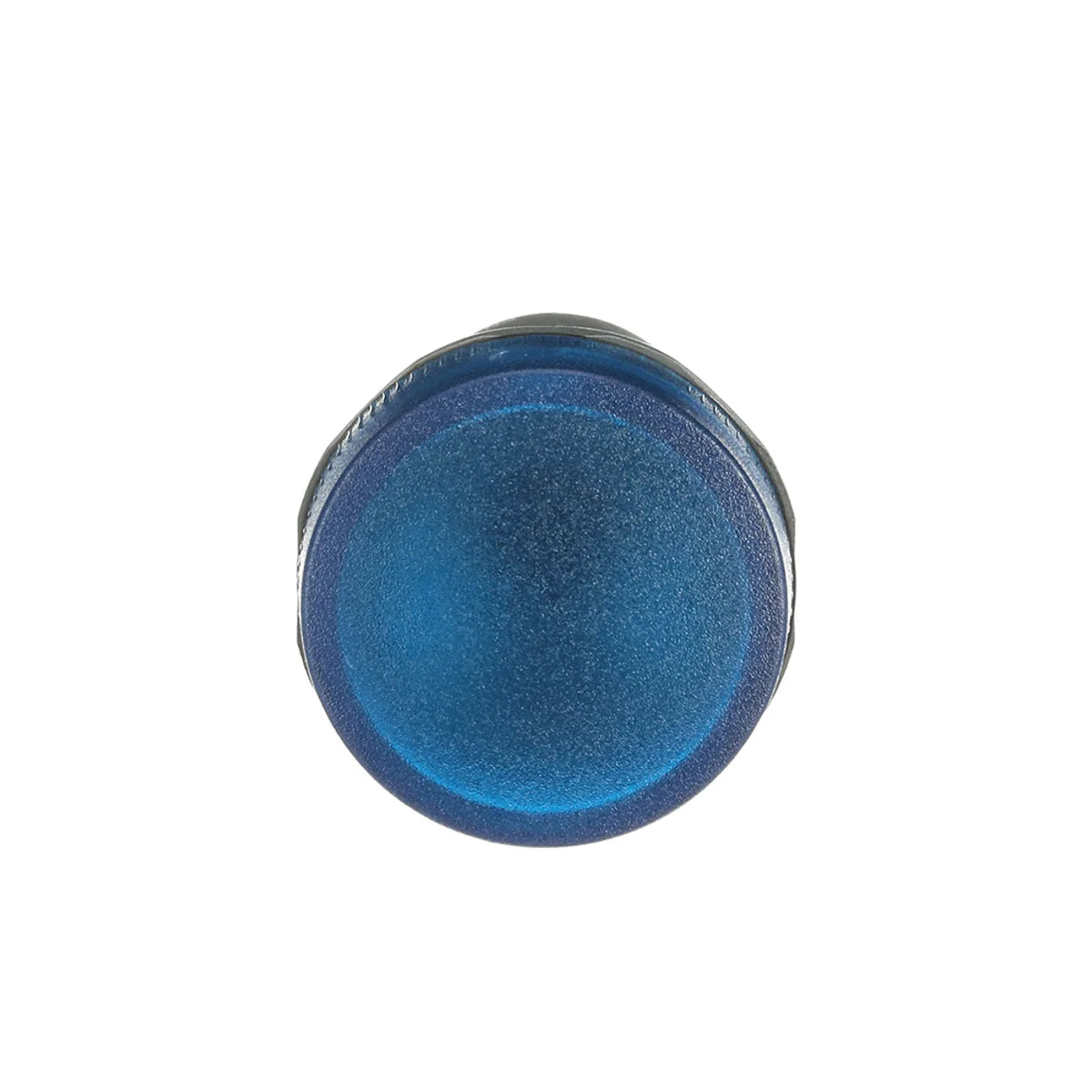

Compact RangeABB 1SFA619402R1004 CL-100L Pilot Light 240V Compact Range
Description
About the CL-100L
About the CL-100L
The ABB CL-100L Pilot Light (SKU: 1SFA619402R1004) is a compact, 240V rated indicating light from ABB's Compact Range, designed for reliable visual signalling in control panels and industrial automation systems. The CL-100L delivers consistent status indication across a wide range of industrial environments and is built to demanding international standards. Its slim 30 × 30 × 55 mm form factor and lightweight 18 g construction make it ideal for space-constrained panel designs.
Certifications & Standards
- CE: Compliant with EU directives for safety, health, and environmental protection
- UKCA: UK Conformity Assessed — meets Great Britain market requirements
- RoHS: Restriction of Hazardous Substances — free from restricted materials per EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with Waste Electrical and Electronic Equipment Directive for responsible disposal
- CCC: China Compulsory Certification — approved for the Chinese market
- CSA: Certified by the Canadian Standards Association for North American markets
Applications & Use Cases
- Machine control panels requiring compact pilot light indicators
- Industrial automation systems for status and fault signalling
- Motor control centres (MCCs) and switchgear panels
- Building automation and HVAC control boards
- Process control equipment in manufacturing environments
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.018 kg |
Technical 17
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Blue |
| Illumination | Illuminated |
| Lamp Type | Ba9s |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Frequency (f) | Supply Circuit 60 50 Hz |
| Rated Operational Voltage | Maximum 240 V |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 1.5 A, (220 / 240 V) 1 A |
| Power Loss | Maximum 3.5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Suitable For | Bulb 3W max. |
| Suitable for Product Class | Pilot Devices |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 54 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619402R1004 |
|---|---|
| Type designation | CL-100L |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500555859 |
| eCl@ss | 27371223 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC000272 - Indicator light complete |
|---|---|
| ETIM 7 | EC000272 - Indicator light complete |
| eClass | V11.0 : 27371223 |
| UNSPSC | 39121534 |
| E-Number (Sweden) | 3711206 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 235 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.18 kg |
| Package Level 1 EAN | 7320500204146 |
| Shipping weight | 0.18 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619402R1004
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
Quick answers
Questions about the CL-100L
Which supply voltage is CL-100L rated for?
The rated operational voltage of CL-100L is 240 V AC.
What is the HS code of CL-100L for customs?
The tariff (HS) code on file for CL-100L is 8536619090.
What is the EAN of CL-100L?
The EAN (GTIN) of CL-100L is 7320500555859.
Where does CL-100L ship from, and how fast?
CL-100L ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
