- Part number
- 1SFA619402R1003
- Model no
- CL-100Y
- CE
- CSA
- RoHS
- UKCA
- CCC
Description
About the CL-100Y
About the CL-100Y

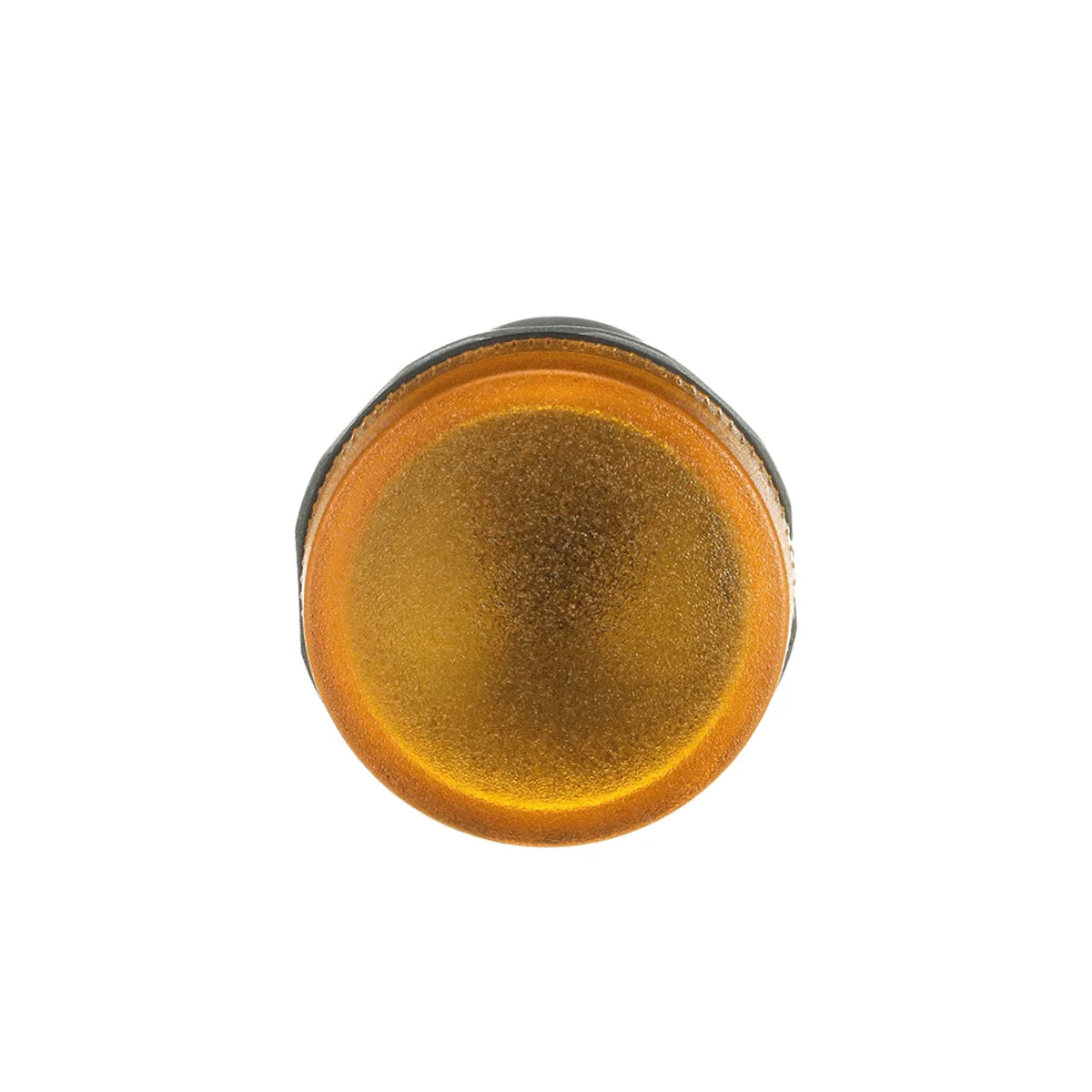

The ABB CL-100Y (SKU: 1SFA619402R1003) is a 240V pilot light from ABB's Compact Range, designed for clear visual indication in industrial control panels and automation systems. The CL-100Y features a compact 30 x 30 x 55 mm form factor and weighs just 18 g, making it easy to integrate into densely populated panel layouts. Built to international standards, it carries certifications including CE, RoHS, CCC, and UKCA, ensuring suitability for global deployments.
Certifications & Standards
- CE: Complies with European Union safety, health, and environmental protection requirements
- UKCA: UK Conformity Assessed marking for products placed on the Great Britain market
- CCC: China Compulsory Certification for market access in China
- CSA: Canadian Standards Association certification for North American markets
- RoHS: Restriction of Hazardous Substances — free from restricted hazardous materials
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with Waste Electrical and Electronic Equipment directive for responsible disposal
Applications & Use Cases
The ABB CL-100Y pilot light is widely used across industrial and commercial electrical installations. Typical applications include:
- Control panel status indication (power-on, fault, run/stop states)
- Machine tool and manufacturing automation panels
- Motor control centres (MCCs) requiring compact indicator devices
- Building automation and HVAC control boards
- Process control cabinets in food, chemical, and water treatment industries
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 55 mm |
| Product Net Weight | 0.018 kg |
Technical 17
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Yellow |
| Illumination | Illuminated |
| Lamp Type | Ba9s |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Pollution Degree | 3 |
| Rated Frequency (f) | Supply Circuit 60 50 Hz |
| Rated Operational Voltage | Maximum 240 V |
| Rated Operational Current AC-15 (Ie) | (24 / 127 V) 1.5 A, (220 / 240 V) 1 A |
| Power Loss | Maximum 3.5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Suitable For | Bulb 3W max. |
| Suitable for Product Class | Pilot Devices |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 54 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA619402R1003 |
|---|---|
| Type designation | CL-100Y |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500555842 |
| eCl@ss | 27371223 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
Environmental 1
| Degree of Protection | Front IP66, Front IP67, Front IP69K, Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC000272 - Indicator light complete |
|---|---|
| ETIM 7 | EC000272 - Indicator light complete |
| eClass | V11.0 : 27371223 |
| UNSPSC | 39121534 |
| E-Number (Sweden) | 3711204 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 235 mm |
| Package Level 1 Depth / Length | 125 mm |
| Package Level 1 Height | 35 mm |
| Package Level 1 Gross Weight | 0.18 kg |
| Package Level 1 EAN | 7320500204139 |
| Shipping weight | 0.18 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA619402R1003 11
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 1SFC151007C02__
Data Sheet, Technical Information 1SFC151007C02__
-
Manual
ProductDownload PDF: Instructions and Manuals 1SFC151011M0201
Instructions and Manuals 1SFC151011M0201
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 2CMT2022-006479
REACH Declaration 2CMT2022-006479
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 2CMT2022-006498
RoHS Declaration 2CMT2022-006498
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 2CMT2015-005451
Declaration of Conformity - CE 2CMT2015-005451
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 2CMT2020-006121
Declaration of Conformity - UKCA 2CMT2020-006121
-
Certificate
ProductDownload PDF: CB Certificate CQC_CN_CN50749
CB Certificate CQC_CN_CN50749
-
Certificate
ProductDownload PDF: CCC Certificate 2024010305654692
CCC Certificate 2024010305654692
-
Certificate
ProductDownload PDF: CQC Certificate CQC2003010305054693
CQC Certificate CQC2003010305054693
-
Certificate
ProductDownload PDF: cURus Certificate UL_E496500-20171020
cURus Certificate UL_E496500-20171020
-
Certificate
ProductDownload PDF: DNV GL Certificate 9AKK107046A3749
DNV GL Certificate 9AKK107046A3749
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
Quick answers
Questions about the CL-100Y
Which supply voltage is CL-100Y rated for?
The rated operational voltage of CL-100Y is 240 V AC.
What is the HS code of CL-100Y for customs?
The tariff (HS) code on file for CL-100Y is 8536619090.
What is the EAN of CL-100Y?
The EAN (GTIN) of CL-100Y is 7320500555842.
Where does CL-100Y ship from, and how fast?
CL-100Y ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
