Part number
1SFA619402R1001
Model no
CL-100R
$6.73 In stock · 30 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Compact Range

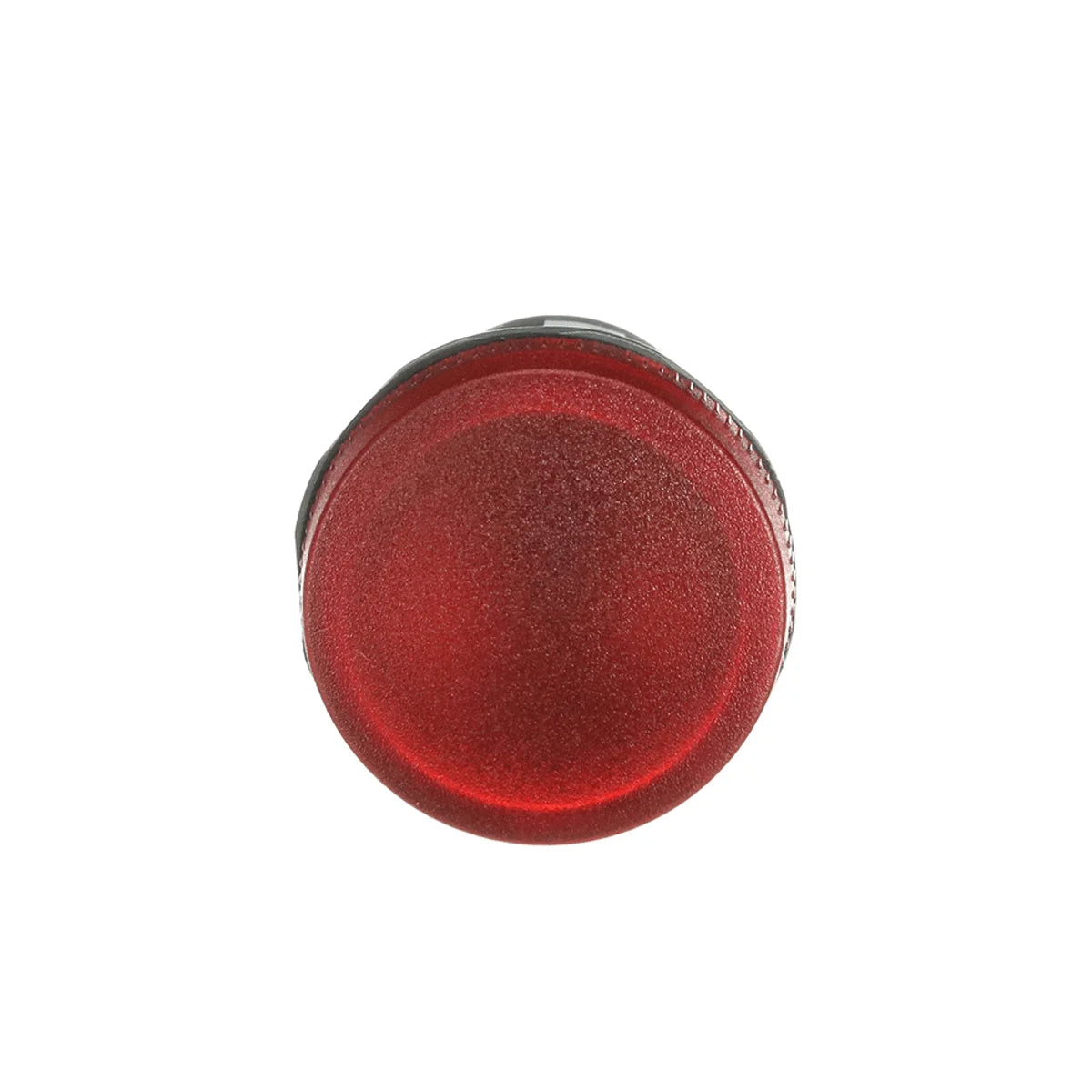

ABB 1SFA619402R1001 CL-100R Pilot Light 240V 30x30mm Compact Range Indicator

Rated current
1.5 A
Rated operational voltage
240 ma×imum V AC
EAN
7320500555828
Description

About the CL-100R

The ABB CL-100R (SKU: 1SFA619402R1001) is a compact pilot light from ABB's Compact Range series, designed for visual status indication in industrial control panels and automation systems. Rated up to 240V maximum with a current rating of 1.5A at 24–127V and 1A at 220–240V, this 30×30×55mm indicator delivers reliable, clear signaling in space-constrained installations. Weighing just 18g, the CL-100R is engineered for easy panel integration and long-term service in demanding industrial environments.

Certifications & Standards

  • CE: Conforms to European Union health, safety, and environmental protection standards.
  • CSA: Certified by the Canadian Standards Association for electrical safety in North American markets.
  • UKCA: UK Conformity Assessed marking — meets Great Britain regulatory requirements post-Brexit.
  • CCC: China Compulsory Certification — approved for sale in the Chinese market.
  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive (2011/65/EU).
  • REACH: Conforms to EU REACH regulation (EC No 1907/2006) on chemical substances.
  • WEEE: Registered under the EU Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal.

Applications & Use Cases

  • Status and fault indication on industrial control panels and switchgear doors
  • Machine and process automation HMI indicator lighting
  • Motor control centers (MCCs) for run/stop/fault signaling
  • Building automation and HVAC control panels
  • OEM equipment requiring compact 30×30mm panel-mount indicators

Frequently Asked Questions

What is the maximum operating voltage of the CL-100R?
The ABB CL-100R is rated for a maximum voltage of 240V AC.

What current does the CL-100R draw?
The rated current is 1.5A at 24–127V and 1A at 220–240V.

What are the panel cutout dimensions?
The CL-100R body measures 30×30×55mm (W×H×D). Refer to the ABB Compact Range datasheet for exact cutout dimensions.

Is the CL-100R RoHS compliant?
Yes, the CL-100R holds RoHS, REACH, CE, CSA, UKCA, CCC, and WEEE certifications, making it suitable for global industrial applications.

Specification

Full specification

54 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 30 mm
Product Net Height 30 mm
Product Net Depth / Length 55 mm
Product Net Weight 0.018 kg

Technical 17

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Red
Illumination Illuminated
Lamp Type Ba9s
Enclosure Type NEMA Type1, Type12, Type13, Type3R, Type4, Type4X
Pollution Degree 3
Rated Frequency (f) Supply Circuit 60 50 Hz
Rated Operational Voltage Maximum 240 V
Rated Operational Current AC-15 (Ie) (24 / 127 V) 1.5 A, (220 / 240 V) 1 A
Power Loss Maximum 3 W
Connecting Capacity Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.9 N·m
Wire Stripping Length 8 mm
Suitable For Bulb 3W max.
Suitable for Product Class Pilot Devices

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 18...14 AWG, 2x 18...14 AWG
Show all 54 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA619402R1001
Type designation CL-100R
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500555828
eCl@ss 27371223
Minimum Order Quantity 10 piece
Customs Tariff Number 8536619090

Environmental 1

Degree of Protection Front IP66, Front IP67, Front IP69K, Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC000272 - Indicator light complete
ETIM 7 EC000272 - Indicator light complete
eClass V11.0 : 27371223
UNSPSC 39121534
E-Number (Sweden) 3711200

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 235 mm
Package Level 1 Depth / Length 125 mm
Package Level 1 Height 35 mm
Package Level 1 Gross Weight 0.18 kg
Package Level 1 EAN 7320500204115
Shipping weight 0.18 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA619402R1001

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
Quick answers

Questions about the CL-100R

What is the rated current of CL-100R?

The rated current of CL-100R is 1.5 A.

Which supply voltage is CL-100R rated for?

The rated operational voltage of CL-100R is 240 ma×imum V AC.

What is the HS code of CL-100R for customs?

The tariff (HS) code on file for CL-100R is 8536619090.

What is the EAN of CL-100R?

The EAN (GTIN) of CL-100R is 7320500555828.

Where does CL-100R ship from, and how fast?

CL-100R ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
