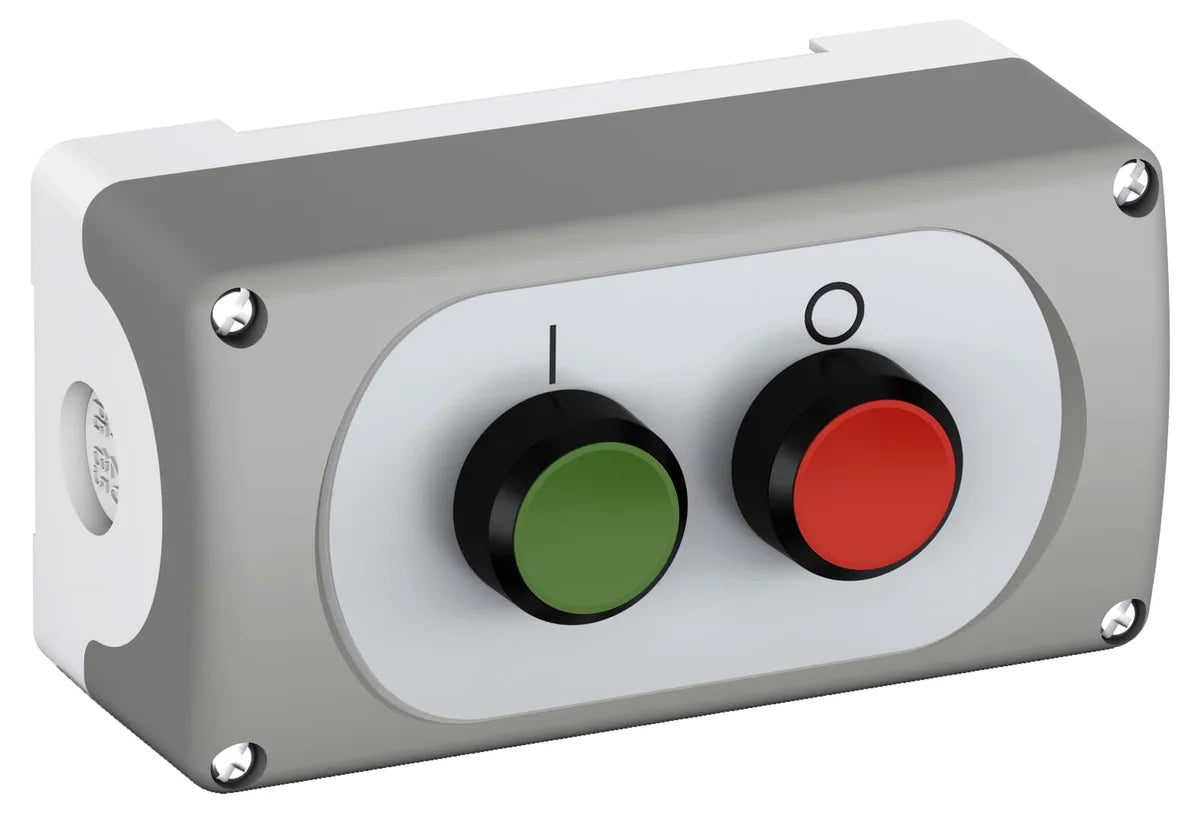

MEP2ABB 1SFA611812R1001 MEP2-1001 24-690V AC/DC Control Circuit Devices Combination in Enclosure
Description
About the MEP2-1001
About the MEP2-1001
The ABB MEP2-1001 (SKU: 1SFA611812R1001) is a control circuit devices combination in enclosure, designed for industrial automation and control panel applications with a wide rated voltage range of 24 to 690 V AC/DC. The MEP2-1001 enclosure measures 141 x 75 x 75 mm (W x D x H) and weighs just 0.079 kg, offering a compact yet robust housing for control circuit device combinations across a broad spectrum of industrial installations.
Certifications & Standards
- CE: Complies with applicable European Union directives for electrical equipment safety and electromagnetic compatibility.
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU and Amendment 2015/863, restricting use of hazardous materials in electrical equipment.
- REACH: Compliant with EU REACH regulation (EC No 1907/2006) governing chemicals used in manufacturing.
- EU Directive 2011/65/EU & Amendment 2015/863: Full compliance with the EU RoHS recast directive and its amendment covering additional restricted substances.
- WEEE: Compliant with the Waste Electrical and Electronic Equipment directive for proper end-of-life disposal and recycling.
- cULus: Listed by Underwriters Laboratories for both US (UL) and Canadian (cUL) safety standards.
- CCC: China Compulsory Certification, meeting mandatory safety requirements for the Chinese market.
- UKCA: UK Conformity Assessed marking, confirming compliance with Great Britain product safety requirements post-Brexit.
- EAC: Eurasian Conformity marking, certifying compliance with the technical regulations of the Eurasian Economic Union.
Applications & Use Cases
- Control panel assemblies in industrial automation environments requiring a wide voltage range (24–690 V AC/DC).
- Machine control stations and operator interface enclosures in manufacturing and process industries.
- Compact control circuit device groupings in switchgear and motor control centres.
- Industrial installations demanding globally recognised certifications (CE, cULus, CCC, UKCA, EAC) for multi-market compliance.
Specification
Full specification
Dimensions 4
| Product Net Width | 141 mm |
|---|---|
| Product Net Depth / Length | 75 mm |
| Product Net Height | 75 mm |
| Product Net Weight | 0.079 kg |
Technical 8
| Accessory Type | Enclosure |
|---|---|
| Color | Dark grey/Light grey |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Housing Material | Plastic |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 1 |
| Power Loss | Maximum 5 W |
| Rated Operational Voltage | 24 ... 690 V AC/DC |
Environmental 4
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Degree of Protection | Front IP66, Housing IP66, Terminals IP20 |
| Material | Plastic |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Show all 48 specifications ↓ Show less ↑32 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SFA611812R1001 |
|---|---|
| Type designation | MEP2-1001 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500312643 |
| eCl@ss | 27371216 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | MEP2 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| eClass | V11.0 : 27371216 |
|---|---|
| E-Number (Sweden) | 3717040 |
| ETIM 6 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 7 | EC000225 - Control circuit devices combination in enclosure |
| UNSPSC | 39121326 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 180 mm |
| Package Level 1 Height | 75 mm |
| Package Level 1 Gross Weight | 0.079 kg |
| Package Level 1 EAN | 7320500312643 |
| Shipping weight | 0.079 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611812R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the MEP2-1001
Which supply voltage is MEP2-1001 rated for?
The rated operational voltage of MEP2-1001 is 24–690–DC V DC.
What is the HS code of MEP2-1001 for customs?
The tariff (HS) code on file for MEP2-1001 is 8538909999.
What is the EAN of MEP2-1001?
The EAN (GTIN) of MEP2-1001 is 7320500312643.
Where does MEP2-1001 ship from, and how fast?
MEP2-1001 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
