- Part number
- 1SFA611811R1001
- Model no
- MEP1-1001
Low stock
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
- CE
- RoHS
- UKCA
- CCC

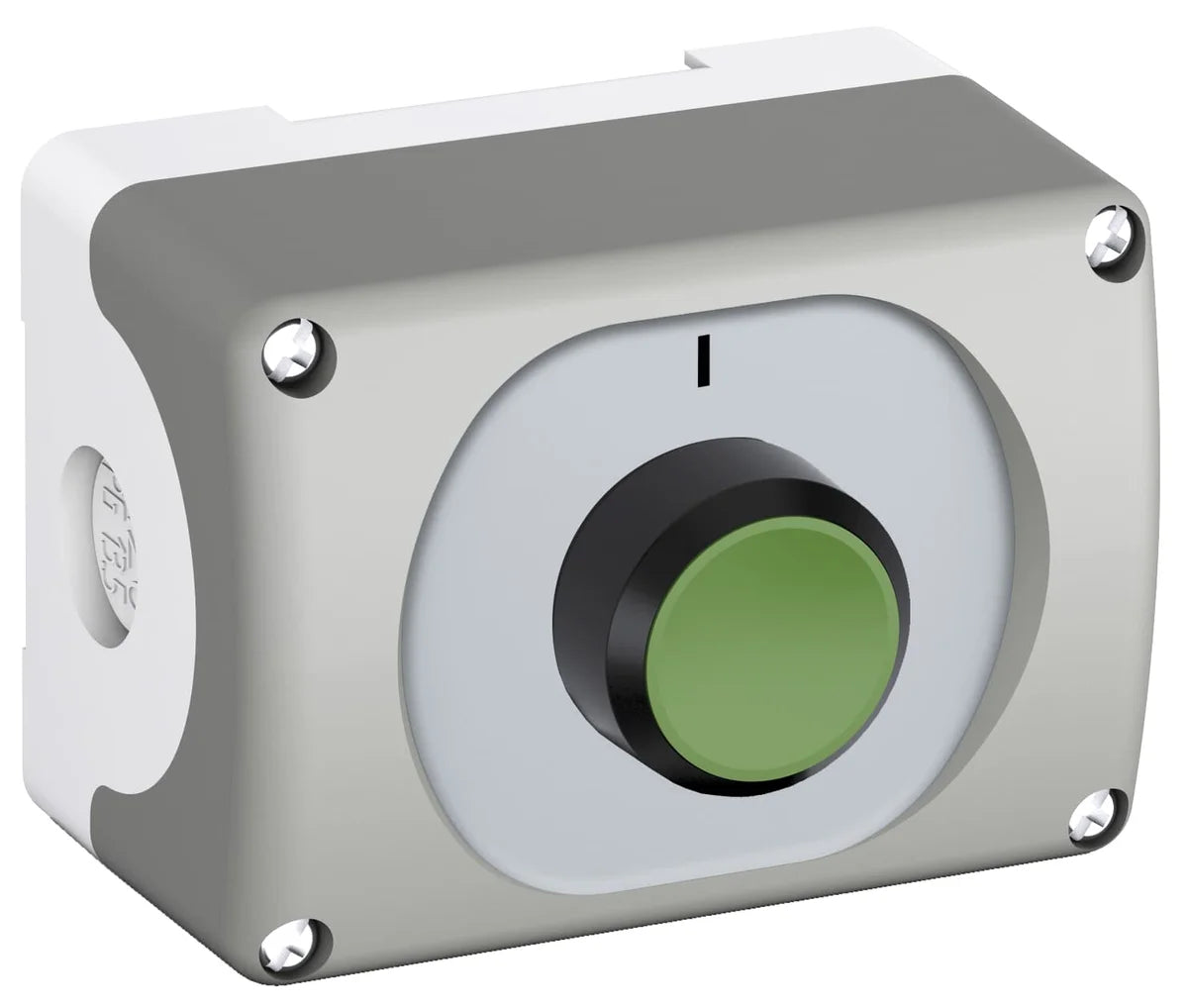

MEP1ABB 1SFA611811R1001 MEP1-1001 24-690V AC/DC 101x75x75mm Control Circuit Devices Combination in Enclosure
Description
About the MEP1-1001
About the MEP1-1001
The ABB MEP1-1001 (SKU: 1SFA611811R1001) is a control circuit devices combination in enclosure rated for 24–690 V AC/DC, designed for industrial automation and control panel applications. This compact enclosure measures 101 x 75 x 75 mm (W x D x H) and weighs just 45 g, making the MEP1-1001 an efficient solution for integrating control circuit components in confined panel spaces.
Certifications & Standards
- CE: Compliant with European CE marking requirements for electrical equipment
- RoHS: Compliant with RoHS Directive, restricting hazardous substances in electrical and electronic equipment
- RoHS (EU Directive 2011/65/EU): Following EU Directive 2011/65/EU and Amendment 2015/863, effective July 22, 2019
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
- cULus: Listed by Underwriters Laboratories for both US and Canadian markets
- CCC: China Compulsory Certification for the Chinese market
- UKCA: UK Conformity Assessed marking for the United Kingdom market
- EAC: Eurasian Conformity mark for the Eurasian Economic Union
Specification
Full specification
Dimensions 4
| Product Net Width | 101 mm |
|---|---|
| Product Net Depth / Length | 75 mm |
| Product Net Height | 75 mm |
| Product Net Weight | 0.045 kg |
Technical 7
| Accessory Type | Enclosure |
|---|---|
| Color | Dark grey/Light grey |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
| Housing Material | Plastic |
| Number of Auxiliary Contacts NO | 1 |
| Power Loss | Maximum 2.5 W |
| Rated Operational Voltage | 24 ... 690 V AC/DC |
Environmental 4
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Degree of Protection | Front IP66, Housing IP66, Terminals IP20 |
| Material | Plastic |
| Maximum Operating Altitude Permissible | Without Derating 2000 m |
Show all 47 specifications ↓ Show less ↑32 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 11
| Part number | 1SFA611811R1001 |
|---|---|
| Type designation | MEP1-1001 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500312513 |
| eCl@ss | 27371216 |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | MEP1 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| eClass | V11.0 : 27371216 |
|---|---|
| E-Number (Sweden) | 3717022 |
| ETIM 6 | EC000225 - Control circuit devices combination in enclosure |
| ETIM 7 | EC000225 - Control circuit devices combination in enclosure |
| UNSPSC | 39121326 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 75 mm |
| Package Level 1 Gross Weight | 0.045 kg |
| Package Level 1 EAN | 7320500312513 |
| Shipping weight | 0.045 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | Low stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611811R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MEP1-1001
Which supply voltage is MEP1-1001 rated for?
The rated operational voltage of MEP1-1001 is 24–690–DC V DC.
What is the HS code of MEP1-1001 for customs?
The tariff (HS) code on file for MEP1-1001 is 8538909999.
What is the EAN of MEP1-1001?
The EAN (GTIN) of MEP1-1001 is 7320500312513.
Where does MEP1-1001 ship from, and how fast?
MEP1-1001 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
