Part number
1SFA611621R1072
Model no
MLBL-07G
$7.51 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Modular Plastic Range

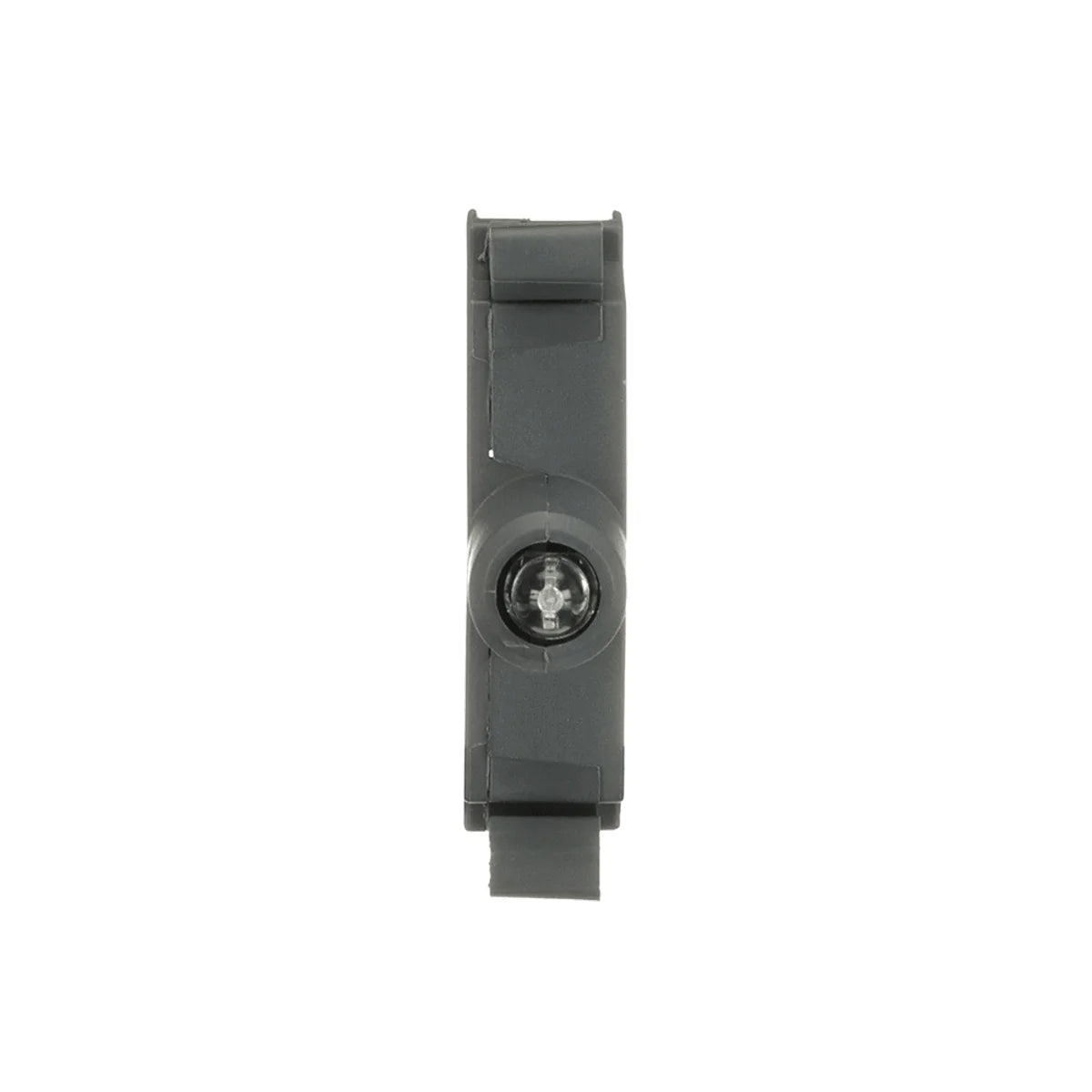

ABB 1SFA611621R1072 MLBL-07G LED Block 230V Front Mount Modular Plastic Range

Rated operational voltage
230 V AC
EAN
7320500544877
Description

About the MLBL-07G

The ABB MLBL-07G (SKU: 1SFA611621R1072) is a 230V LED Block from ABB's Modular Plastic Range, designed for front-mount installation in industrial control panels and automation systems. The MLBL-07G provides clear visual indication and is engineered for reliable, long-service-life signalling in demanding industrial environments. Its compact, lightweight design (10 g) ensures straightforward integration into modular pilot device assemblies.

Certifications & Standards

  • CE: Conforms to European Union safety, health, and environmental protection requirements.
  • UKCA: UK Conformity Assessed marking for products placed on the Great Britain market.
  • CCC: China Compulsory Certification for products sold in the Chinese market.
  • CSA: Certified to Canadian Standards Association requirements for North American markets.
  • EAC: Eurasian Conformity mark for products distributed in the Eurasian Economic Union.
  • RoHS: Compliant with the Restriction of Hazardous Substances Directive — restricts use of harmful materials in electrical equipment.
  • REACH: Compliant with EU REACH regulation on registration, evaluation, and restriction of chemicals.
  • WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life recycling.
Specification

Full specification

52 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 10 mm
Product Net Height 44 mm
Product Net Depth / Length 42 mm
Product Net Weight 0.01 kg

Technical 15

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Green
Illumination Illuminated
Lamp Type 230 V AC, integrated LED
Mounting Type Front mounting
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage 230 V AC
Power Loss Maximum 0.4 W
Connecting Capacity Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.9 N·m
Wire Stripping Length 8 mm
Suitable For MCBH-00, MCBH5-00, MP1, MP2, MP3, MP4, MPMT3, MPMP3, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, MPM1
Suitable for Product Class Pilot Devices

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 18...14 AWG, 2x 18...14 AWG
Show all 52 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611621R1072
Type designation MLBL-07G
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500544877
eCl@ss 27371209
Minimum Order Quantity 10 piece
Customs Tariff Number 85369001

Environmental 1

Degree of Protection Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC000204 - Lamp holder block for control circuit devices
ETIM 7 EC000204 - Lamp holder block for control circuit devices
eClass V11.0 : 27371209
UNSPSC 39122221
E-Number (Sweden) 3705068

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 135 mm
Package Level 1 Depth / Length 155 mm
Package Level 1 Height 25 mm
Package Level 1 Gross Weight 0.11 kg
Package Level 1 EAN 7320500372951
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611621R1072

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the MLBL-07G

Which supply voltage is MLBL-07G rated for?

The rated operational voltage of MLBL-07G is 230 V AC.

What is the HS code of MLBL-07G for customs?

The tariff (HS) code on file for MLBL-07G is 85369001.

What is the EAN of MLBL-07G?

The EAN (GTIN) of MLBL-07G is 7320500544877.

Where does MLBL-07G ship from, and how fast?

MLBL-07G ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
