- Part number
- 1SFA611621R1014
- Model no
- MLBL-01L
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Description
About the MLBL-01L
About the MLBL-01L

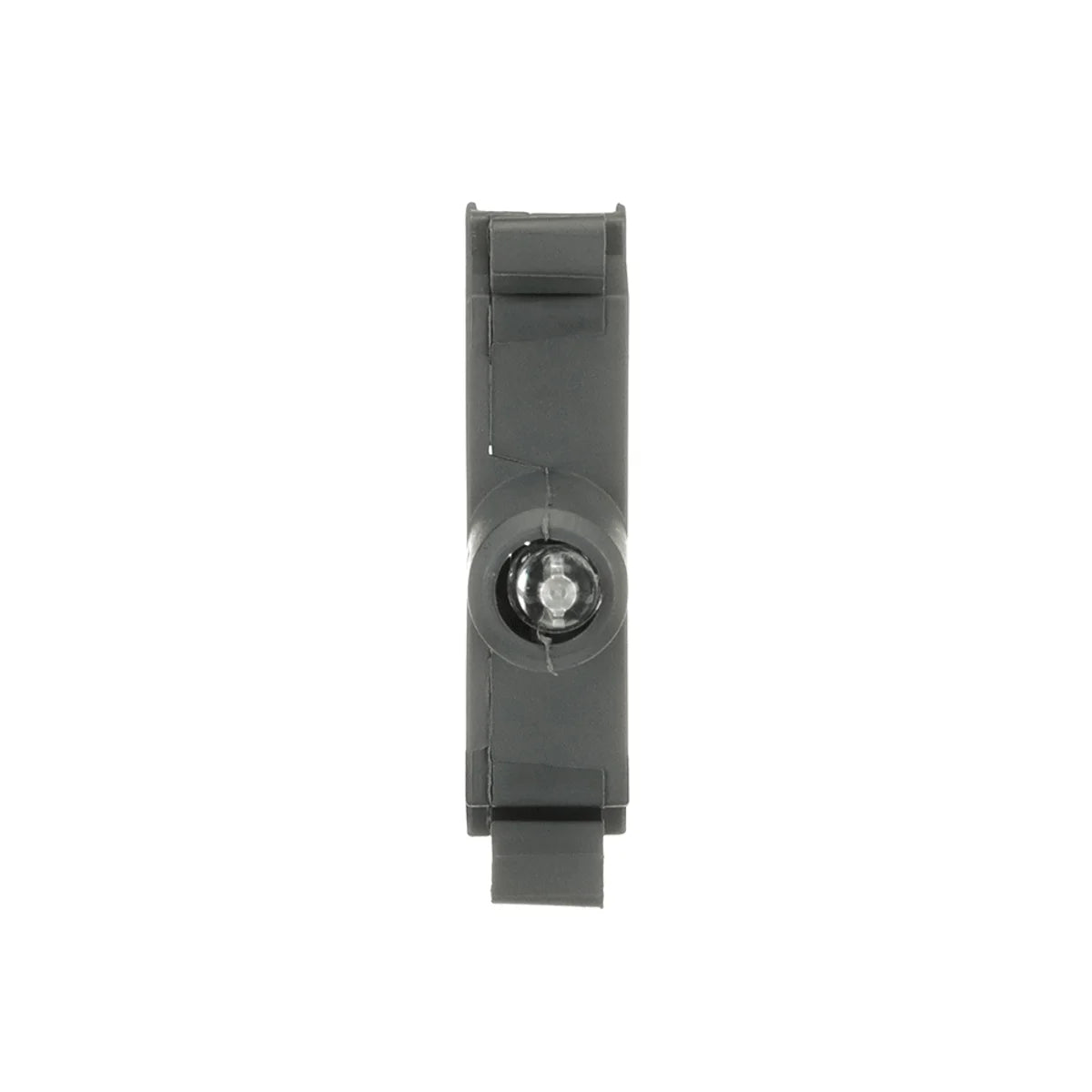

The ABB MLBL-01L (SKU: 1SFA611621R1014) is a 24V LED block designed for front mounting in control panels and industrial automation applications. Part of ABB's Modular Plastic Range, the MLBL-01L provides reliable, energy-efficient status indication for switchgear, machinery, and process control systems. Its compact, lightweight design (10 g) makes it ideal for high-density panel layouts where clear visual signalling is essential.
Certifications & Standards
- CE: Complies with European Union directives for safety, health, and environmental protection
- UKCA: UK Conformity Assessed marking for Great Britain market compliance
- RoHS: Restriction of Hazardous Substances — free from restricted materials including lead, mercury, and cadmium
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Registered under Waste Electrical and Electronic Equipment directive for responsible disposal
- CCC: China Compulsory Certification for sale and use in the Chinese market
- CSA: Canadian Standards Association certified for North American markets
- EAC: Eurasian Conformity mark for Russia, Kazakhstan, Belarus, and related markets
Applications & Use Cases
- Control panel status and indication lighting
- Industrial automation and process control systems
- Machine tool and manufacturing equipment panels
- Switchgear and motor control centre (MCC) assemblies
- Building automation and facility management systems
Specification
Full specification
Dimensions 4
| Product Net Width | 10 mm |
|---|---|
| Product Net Height | 44 mm |
| Product Net Depth / Length | 42 mm |
| Product Net Weight | 0.01 kg |
Technical 15
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Blue |
| Illumination | Illuminated |
| Lamp Type | 24V AC / DC, integrated LED |
| Mounting Type | Front mounting |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | 24 V AC/DC |
| Power Loss | Maximum 0.3 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.9 N·m |
| Wire Stripping Length | 8 mm |
| Suitable For | MCBH-00, MCBH5-00, MP1, MP2, MP3, MP4, MPMT3, MPMP3, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, MPM1 |
| Suitable for Product Class | Pilot Devices |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 18...14 AWG, 2x 18...14 AWG |
|---|
Show all 52 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611621R1014 |
|---|---|
| Type designation | MLBL-01L |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500544594 |
| eCl@ss | 27371209 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85369001 |
Environmental 1
| Degree of Protection | Terminals IP20 |
|---|
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC000204 - Lamp holder block for control circuit devices |
|---|---|
| ETIM 7 | EC000204 - Lamp holder block for control circuit devices |
| eClass | V11.0 : 27371209 |
| UNSPSC | 39122221 |
| E-Number (Sweden) | 3705088 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 135 mm |
| Package Level 1 Depth / Length | 155 mm |
| Package Level 1 Height | 25 mm |
| Package Level 1 Gross Weight | 0.11 kg |
| Package Level 1 EAN | 7320500373200 |
| Shipping weight | 0.11 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611621R1014 11
-
Datasheet
ProductDownload PDF: Data Sheet, Technical Information 1SFC151007C02__
Data Sheet, Technical Information 1SFC151007C02__
-
Manual
ProductDownload PDF: Instructions and Manuals 1SFC151011M0201
Instructions and Manuals 1SFC151011M0201
-
Declaration of conformity
ProductDownload PDF: REACH Declaration 2CMT2022-006479
REACH Declaration 2CMT2022-006479
-
Declaration of conformity
ProductDownload PDF: RoHS Declaration 2CMT2022-006498
RoHS Declaration 2CMT2022-006498
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CCC 2020980305001106
Declaration of Conformity - CCC 2020980305001106
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - CE 2CMT2015-005452
Declaration of Conformity - CE 2CMT2015-005452
-
Declaration of conformity
ProductDownload PDF: Declaration of Conformity - UKCA 2CMT2020-006121
Declaration of Conformity - UKCA 2CMT2020-006121
-
Certificate
ProductDownload PDF: CQC Certificate CQC2008010305274953
CQC Certificate CQC2008010305274953
-
Certificate
ProductDownload PDF: cULus Certificate 9AKK107046A9925
cULus Certificate 9AKK107046A9925
-
Certificate
ProductDownload PDF: DNV GL Certificate E-14107
DNV GL Certificate E-14107
-
Certificate
ProductDownload PDF: EAC Certificate 1SFC150017D1101
EAC Certificate 1SFC150017D1101
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
- EAC
Quick answers
Questions about the MLBL-01L
Which supply voltage is MLBL-01L rated for?
The rated operational voltage of MLBL-01L is 24 V AC.
What is the HS code of MLBL-01L for customs?
The tariff (HS) code on file for MLBL-01L is 85369001.
What is the EAN of MLBL-01L?
The EAN (GTIN) of MLBL-01L is 7320500544594.
Where does MLBL-01L ship from, and how fast?
MLBL-01L ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
