Part number
1SFA611621R1013
Model no
MLBL-01Y
$7.51 In stock · 13 Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye
Modular Plastic Range

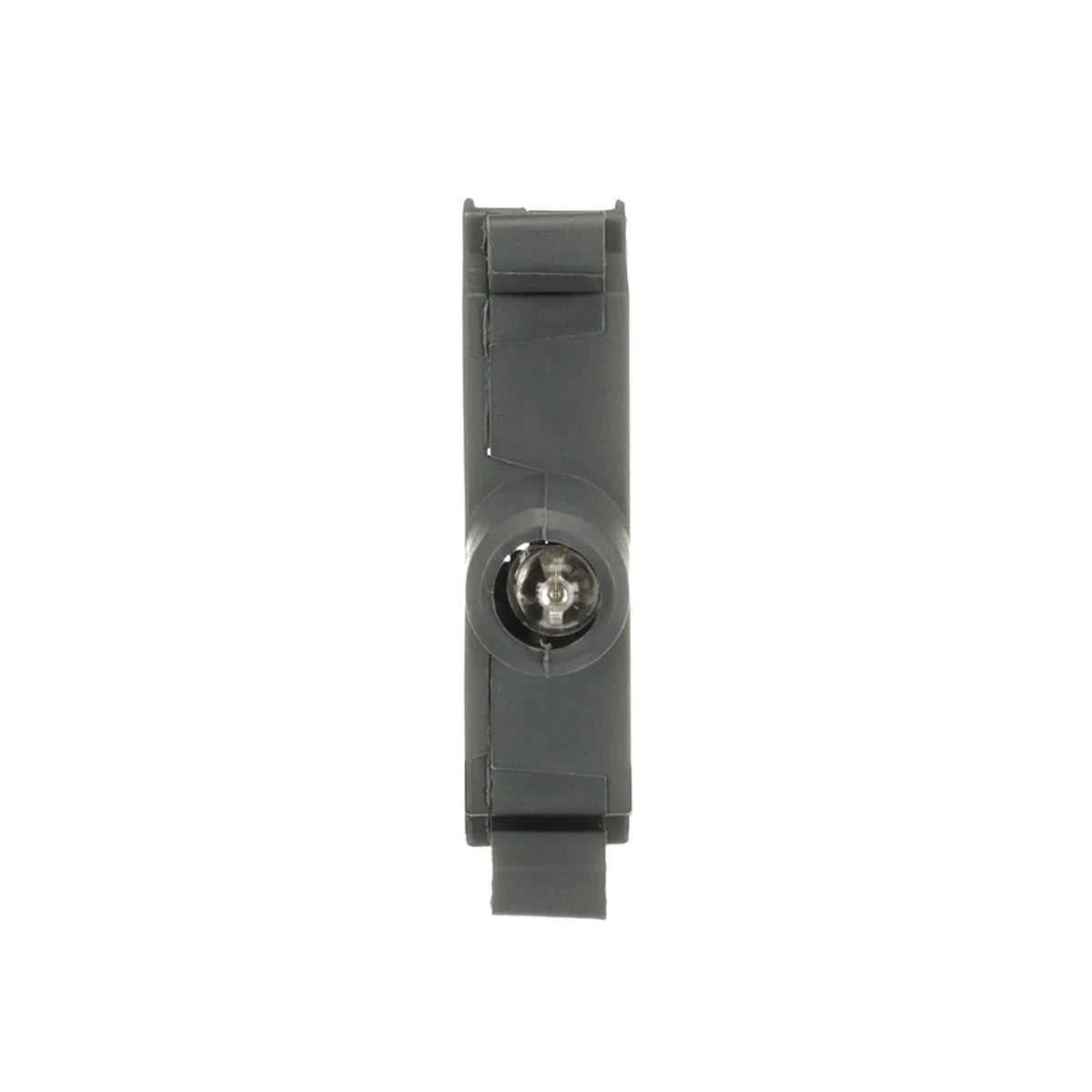

ABB 1SFA611621R1013 MLBL-01Y LED Block 24V Front Mount Modular Plastic Range

Rated operational voltage
24 V AC
EAN
7320500544587
Description

About the MLBL-01Y

The ABB MLBL-01Y (SKU: 1SFA611621R1013) is a 24V LED Block from the ABB Modular Plastic Range, designed for front-mounting applications in control panels and industrial automation systems. This compact LED block provides reliable visual indication and is built to meet the demanding requirements of industrial environments. Weighing just 0.01 kg, it integrates seamlessly into modular pilot device assemblies.

Certifications & Standards

  • CE: Complies with EU directives for electrical equipment safety and electromagnetic compatibility
  • UKCA: UK Conformity Assessed marking for the Great Britain market
  • RoHS: Restriction of Hazardous Substances — free from restricted substances per EU Directive 2011/65/EU
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive for proper end-of-life disposal
  • CCC: China Compulsory Certification — approved for the Chinese market
  • CSA: Certified by the Canadian Standards Association for North American markets
  • EAC: Eurasian Conformity mark for the Eurasian Economic Union markets
Specification

Full specification

52 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 10 mm
Product Net Height 44 mm
Product Net Depth / Length 42 mm
Product Net Weight 0.01 kg

Technical 15

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Color Yellow
Illumination Illuminated
Lamp Type 24V AC / DC, integrated LED
Mounting Type Front mounting
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage 24 V AC/DC
Power Loss Maximum 0.3 W
Connecting Capacity Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.9 N·m
Wire Stripping Length 8 mm
Suitable For MCBH-00, MCBH5-00, MP1, MP2, MP3, MP4, MPMT3, MPMP3, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, MPM1
Suitable for Product Class Pilot Devices

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 18...14 AWG, 2x 18...14 AWG
Show all 52 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611621R1013
Type designation MLBL-01Y
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500544587
eCl@ss 27371209
Minimum Order Quantity 10 piece
Customs Tariff Number 85369001

Environmental 1

Degree of Protection Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC000204 - Lamp holder block for control circuit devices
ETIM 7 EC000204 - Lamp holder block for control circuit devices
eClass V11.0 : 27371209
UNSPSC 39122221
E-Number (Sweden) 3705056

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 135 mm
Package Level 1 Depth / Length 155 mm
Package Level 1 Height 25 mm
Package Level 1 Gross Weight 0.11 kg
Package Level 1 EAN 7320500373101
Shipping weight 0.11 kg
Ships from Türkiye
Dispatch 18 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611621R1013

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
  • EAC
Quick answers

Questions about the MLBL-01Y

Which supply voltage is MLBL-01Y rated for?

The rated operational voltage of MLBL-01Y is 24 V AC.

What is the HS code of MLBL-01Y for customs?

The tariff (HS) code on file for MLBL-01Y is 85369001.

What is the EAN of MLBL-01Y?

The EAN (GTIN) of MLBL-01Y is 7320500544587.

Where does MLBL-01Y ship from, and how fast?

MLBL-01Y ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
