Part number
1SFA611612R1010
Model no
MCBL-10
$15.70 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

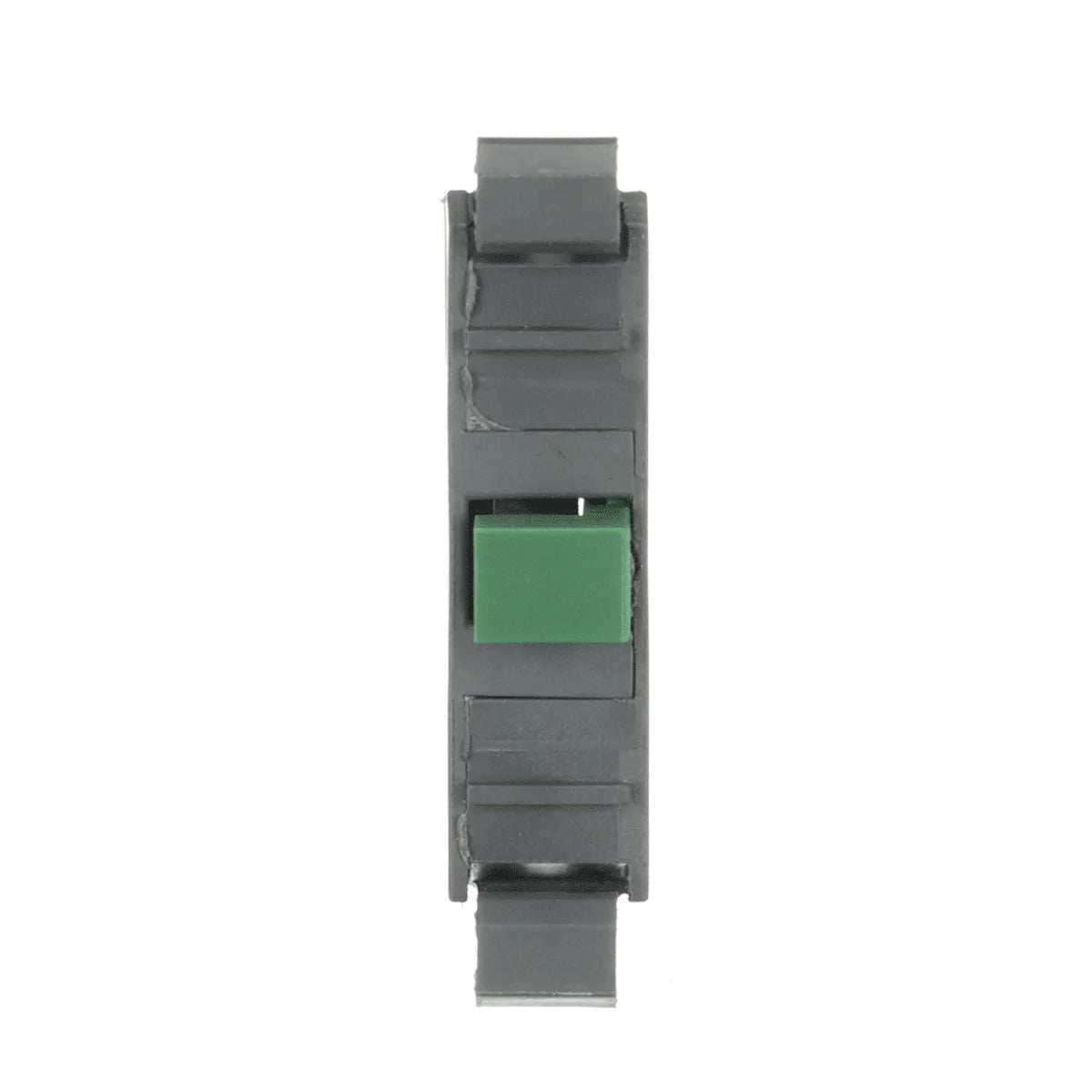

ABB 1SFA611612R1010 MCBL-10 Contact Block 125V Front Mounting

Rated operational voltage
125 V AC
EAN
7320500544501
Description

About the MCBL-10

The ABB MCBL-10 contact block (SKU: 1SFA611612R1010) is a front-mounting electrical contact block rated at 125V, designed for reliable switching in industrial automation and control panel applications. Engineered to ABB's precision standards, the MCBL-10 delivers consistent performance in demanding environments, making it a trusted component for engineers and system integrators working with pilot devices and control circuits.

Certifications & Standards

  • CCC: China Compulsory Certification — approved for the Chinese market
  • CSA: Canadian Standards Association — certified for use in Canada
  • REACH: EU chemicals regulation compliance, ensuring substance safety
  • RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
  • WEEE: Waste Electrical and Electronic Equipment Directive compliance
  • cULus: Dual-listed UL and cUL mark for the US and Canadian markets
  • CE: Conformité Européenne — meets EU safety, health, and environmental requirements
  • UKCA: UK Conformity Assessed — compliant for Great Britain market access
Specification

Full specification

55 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 10 mm
Product Net Height 44 mm
Product Net Depth / Length 15 mm
Product Net Weight 0.01 kg

Technical 19

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Illumination Non-illuminated
Function Without holder
Mounting Type Front mounting
Number of Auxiliary Contacts NC 0
Number of Auxiliary Contacts NO 1
Pollution Degree 3
Rated Insulation Voltage (Ui) 125 V
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage Maximum 125 V
Rated Operational Current DC-13 (Ie) (24 V) 0.3 A
Power Loss Maximum 0.5 W
Connecting Capacity Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.8 N·m
Wire Stripping Length 6 mm
Suitable For MP1, MP2, MP3, MP4, MPD1, MPD2, MPD3, MPD4, MPD5, MPD11, MPD12, MPD13, MPD14, MPD15, MPD16, MPM1, MPM2, KP6, MPET3, MPEP3, MPEK3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, M3SSC1, M3SSC2, M3SSC3, M3SSC4, M3SSC5, M3SSC6, M3SSC7, M3SSC8, M2SSK1, M2SSK2, M2SSK3, M3SSK1, M3SSK2, M3SSK3, MTS1, MTS2, MTS3, MJS1, MJS2, MJS5, MJS6, MJS7, MJS8, MJS11, MJS12
Suitable for Product Class Pilot Devices

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 22...14 AWG, 2x 22...14 AWG
Show all 55 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611612R1010
Type designation MCBL-10
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500544501
eCl@ss 27371302
Minimum Order Quantity 10 piece
Customs Tariff Number 8536901000

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC000041 - Auxiliary contact block
ETIM 7 EC000041 - Auxiliary contact block
eClass V11.0 : 27371302
UNSPSC 39122221
E-Number (Sweden) 3705013

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 110 mm
Package Level 1 Depth / Length 150 mm
Package Level 1 Height 10 mm
Package Level 1 Gross Weight 0.1 kg
Package Level 1 EAN 7320500359921
Shipping weight 0.1 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611612R1010

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • CSA
  • RoHS
  • UKCA
  • CCC
Quick answers

Questions about the MCBL-10

Which supply voltage is MCBL-10 rated for?

The rated operational voltage of MCBL-10 is 125 V AC.

What is the HS code of MCBL-10 for customs?

The tariff (HS) code on file for MCBL-10 is 8536901000.

What is the EAN of MCBL-10?

The EAN (GTIN) of MCBL-10 is 7320500544501.

Where does MCBL-10 ship from, and how fast?

MCBL-10 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
