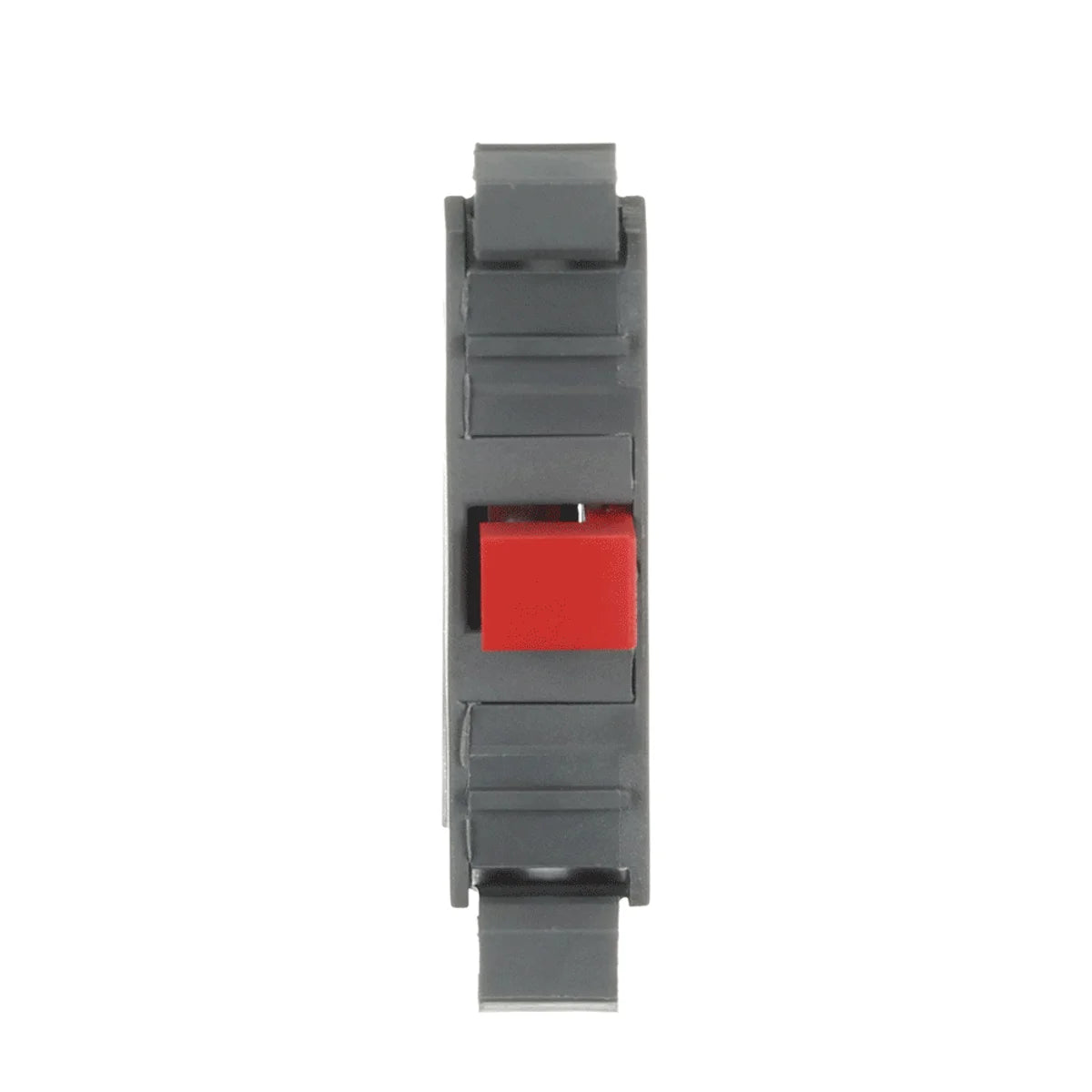

ABB 1SFA611612R1001 MCBL-01 Front Mount 125V Contact Block
Description
About the MCBL-01
About the MCBL-01
The ABB MCBL-01 (SKU: 1SFA611612R1001) is a front-mount contact block rated at 125 V, designed for reliable signal switching in industrial control panels and pilot device assemblies. The MCBL-01 delivers compact, dependable performance in automation and control applications where precise auxiliary contact operation is essential.
Certifications & Standards
- CE: Compliant with European Union safety, health, and environmental protection requirements
- UKCA: UK Conformity Assessed marking for Great Britain market compliance
- cULus: Listed by Underwriters Laboratories for both US and Canadian market safety standards
- CSA: Certified by the Canadian Standards Association for North American markets
- CCC: China Compulsory Certification for sale in the Chinese market
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
Applications & Use Cases
- Front-mount auxiliary contact extension for pushbuttons and pilot devices in control panels
- Industrial automation systems requiring compact signal-level switching
- Machine control cabinets where panel space is limited
- OEM equipment assemblies demanding globally certified electrical components
Specification
Full specification
Dimensions 4
| Product Net Width | 10 mm |
|---|---|
| Product Net Height | 44 mm |
| Product Net Depth / Length | 15 mm |
| Product Net Weight | 0.01 kg |
Technical 19
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Illumination | Non-illuminated |
| Function | Without holder |
| Mounting Type | Front mounting |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 0 |
| Pollution Degree | 3 |
| Rated Insulation Voltage (Ui) | 125 V |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Operational Voltage | Maximum 125 V |
| Rated Operational Current DC-13 (Ie) | (24 V) 0.3 A |
| Power Loss | Maximum 0.5 W |
| Connecting Capacity | Flexible with Ferrule 1 x 0.5...1.5 mm², Flexible with Ferrule 2 x 0.5...1.5 mm², Flexible with Insulated Ferrule 1 x 0.5...1.5 mm², Flexible with Insulated Ferrule 2 x 0.5...1.5 mm², Flexible 1 x 0.5 ...1.5 mm², Flexible 2 x 0.5 ...1.5 mm², Solid 1 x 0.5...1.5 mm², Solid 2 x 0.5...1.5 mm² |
| Connection Type | Screw Clamp |
| Terminal Type | Screw Terminals |
| Tightening Torque | 0.8 N·m |
| Wire Stripping Length | 6 mm |
| Suitable For | MP1, MP2, MP3, MP4, MPD1, MPD2, MPD3, MPD4, MPD5, MPD11, MPD12, MPD13, MPD14, MPD15, MPD16, MPM1, MPM2, KP6, MPET3, MPEP3, MPEK3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, M3SSC1, M3SSC2, M3SSC3, M3SSC4, M3SSC5, M3SSC6, M3SSC7, M3SSC8, M2SSK1, M2SSK2, M2SSK3, M3SSK1, M3SSK2, M3SSK3, MTS1, MTS2, MTS3, MJS1, MJS2, MJS5, MJS6, MJS7, MJS8, MJS11, MJS12 |
| Suitable for Product Class | Pilot Devices |
Technical UL/CSA 1
| Connecting Capacity UL/CSA | 1x 22...14 AWG, 2x 22...14 AWG |
|---|
Show all 55 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611612R1001 |
|---|---|
| Type designation | MCBL-01 |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500544495 |
| eCl@ss | 27371302 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536901000 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
External Classifications and Standards 5
| ETIM 6 | EC000041 - Auxiliary contact block |
|---|---|
| ETIM 7 | EC000041 - Auxiliary contact block |
| eClass | V11.0 : 27371302 |
| UNSPSC | 39122221 |
| E-Number (Sweden) | 3705014 |
Logistics 10
| Package Level 1 Units | bag 10 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 10 mm |
| Package Level 1 Gross Weight | 0.1 kg |
| Package Level 1 EAN | 7320500359938 |
| Shipping weight | 0.1 kg |
| Ships from | Türkiye |
| Dispatch | 16 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611612R1001
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- CSA
- RoHS
- UKCA
- CCC
Quick answers
Questions about the MCBL-01
Which supply voltage is MCBL-01 rated for?
The rated operational voltage of MCBL-01 is 125 V AC.
What is the HS code of MCBL-01 for customs?
The tariff (HS) code on file for MCBL-01 is 8536901000.
What is the EAN of MCBL-01?
The EAN (GTIN) of MCBL-01 is 7320500544495.
Where does MCBL-01 ship from, and how fast?
MCBL-01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
