Part number
1SFA611610R1010
Model no
MCB-01
$6.35 In stock · 50+ Dispatch Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days. · From Türkiye

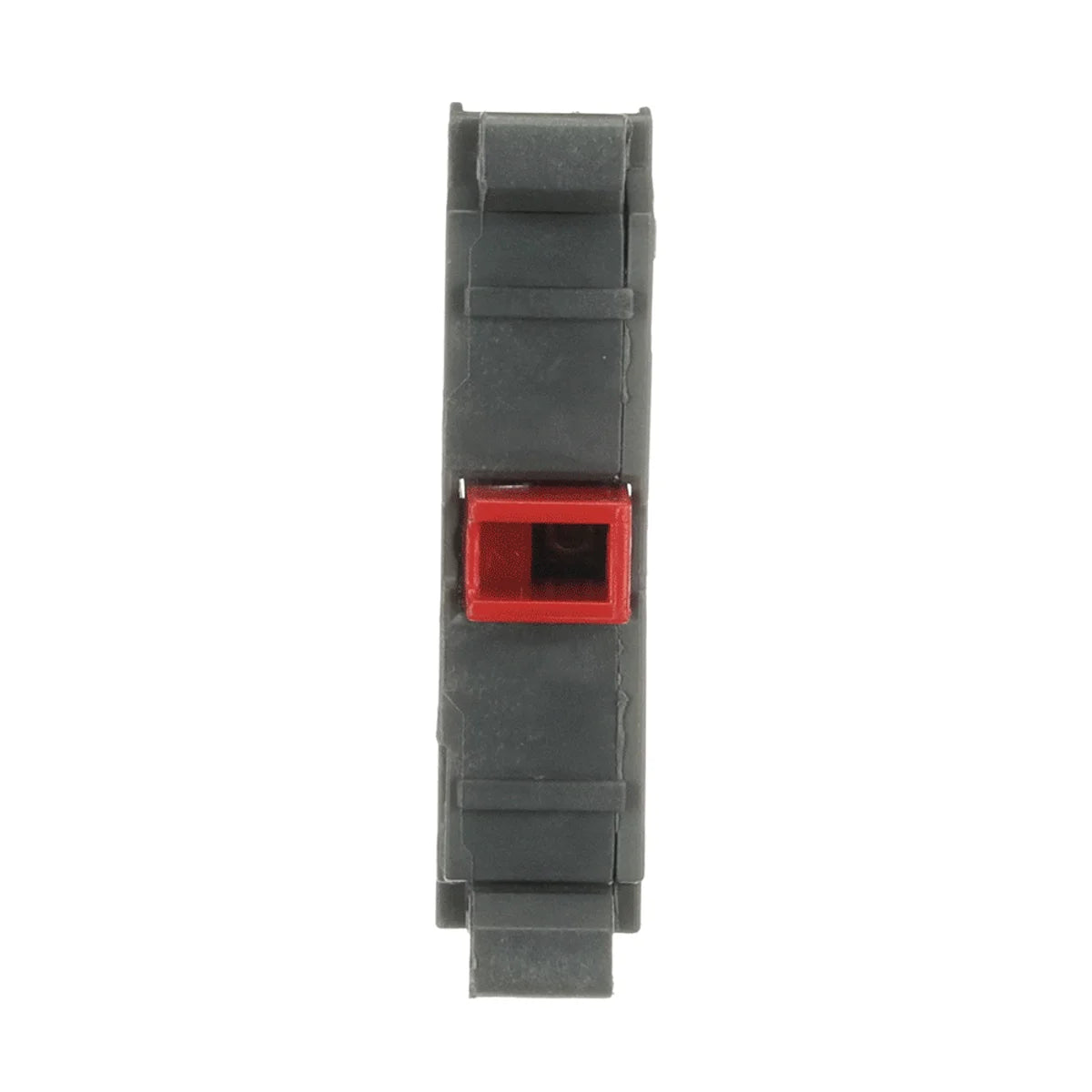

ABB 1SFA611610R1010 MCB-01 Contact Block 690V Front Mounting

Rated operational voltage
690 V AC
EAN
7320500544341
Description

About the MCB-01

The ABB MCB-01 Contact Block (SKU 1SFA611610R1010) is a front-mounting contact block rated up to 690 V, designed for use in industrial automation, control panels, and pilot device assemblies. Weighing just 0.013 kg, the MCB-01 is a compact and reliable electrical component suitable for demanding industrial environments where certified quality and safety compliance are essential.

Certifications & Standards

  • CE: Meets European conformity requirements for electrical equipment safety and EMC
  • UKCA: UK Conformity Assessed — compliant for sale and use in Great Britain
  • cULus: Listed by Underwriters Laboratories for both Canadian and US markets
  • CCC: China Compulsory Certification — approved for the Chinese market
  • RoHS: Compliant with EU Restriction of Hazardous Substances Directive
  • REACH: Compliant with EU REACH regulation on chemical substances
  • WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

  • Control panel push-button and selector switch assemblies
  • Industrial automation machinery and pilot device circuits
  • Motor control centers and operator interface stations
  • Process control and manufacturing line electrical systems
Specification

Full specification

58 values · Last verified 30 Oct 2026

Dimensions 4

Product Net Width 10 mm
Product Net Height 44 mm
Product Net Depth / Length 28 mm
Product Net Weight 0.013 kg

Technical 21

Ambient Air Temperature Operation -25 ... +70 °C, Storage -40 ... +85 °C
Illumination Non-illuminated
Mounting Type Front mounting
Number of Auxiliary Contacts NC 1
Number of Auxiliary Contacts NO 0
Pollution Degree 3
Rated Insulation Voltage (Ui) 690 V
Rated Impulse Withstand Voltage (Uimp) 6 kV
Rated Frequency (f) 50 / 60 Hz
Rated Operational Voltage Maximum 690 V
Rated Operational Current DC-13 (Ie) (24 V) 5 A, (125 V) 0.55 A
Rated Operational Current AC-15 (Ie) (230 V AC) 6 A, (120 V) 8 A
Power Loss Maximum 2.5 W
Mechanical Durability 10 million
Connecting Capacity Flexible with Ferrule 1 x 0.75...2.5 mm², Flexible with Ferrule 2 x 0.75...2.5 mm², Flexible with Insulated Ferrule 1 x 0.75...2.5 mm², Flexible with Insulated Ferrule 2 x 0.75...2.5 mm², Flexible 1 x 0.75 ... 2.5 mm², Flexible 2 x 0.75 ... 2.5 mm², Solid 1 x 0.75...2.5 mm², Solid 2 x 0.75...2.5 mm²
Connection Type Screw Clamp
Terminal Type Screw Terminals
Tightening Torque 0.9 N·m
Wire Stripping Length 8 mm
Suitable For MP1, MP2, MP3, MP4, MPD1, MPD2, MPD3, MPD4, MPD5, MPD11, MPD12, MPD13, MPD14, MPD15, MPD16, MPM1, MPM2, KP6, MPET3, MPEP3, MPEK3, MPET4, MPEP4, MPEK4, MPMT3, MPMT4, MPMP3, MPMP4, M2SS1, M2SS2, M2SS3, M2SS4, M2SS5, M2SS6, M3SS1, M3SS2, M3SS3, M3SS4, M3SS5, M3SS6, M3SS7, M3SS8, M3SSC1, M3SSC2, M3SSC3, M3SSC4, M3SSC5, M3SSC6, M3SSC7, M3SSC8, M2SSK1, M2SSK2, M2SSK3, M3SSK1, M3SSK2, M3SSK3, MTS1, MTS2, MTS3, MJS1, MJS2, MJS5, MJS6, MJS7, MJS8, MJS11, MJS12
Suitable for Product Class Pilot Devices

Technical UL/CSA 1

Connecting Capacity UL/CSA 1x 18...14 AWG, 2x 18...14 AWG
Show all 58 specifications ↓ Show less ↑32 more values in Identification, Environmental, Material Compliance, External Classifications and Standards, Logistics.

Identification 10

Part number 1SFA611610R1010
Type designation MCB-01
Brand ABB
Condition New, factory sealed
Source ABB and its authorised distributors
Warranty Manufacturer warranty
EAN 7320500544341
eCl@ss 27371302
Minimum Order Quantity 10 piece
Customs Tariff Number 8536508000

Environmental 1

Degree of Protection Terminals IP20

Material Compliance 6

REACH Declaration 2CMT2022-006479
RoHS Declaration 2CMT2022-006498
RoHS Information Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA 2CMT2023-006523
WEEE B2C / B2B Business To Business
WEEE Category 5. Small Equipment (No External Dimension More Than 50 cm)

External Classifications and Standards 5

ETIM 6 EC000041 - Auxiliary contact block
ETIM 7 EC000041 - Auxiliary contact block
eClass V11.0 : 27371302
UNSPSC 39122221
E-Number (Sweden) 3714006

Logistics 10

Package Level 1 Units bag 10 piece
Package Level 1 Width 110 mm
Package Level 1 Depth / Length 150 mm
Package Level 1 Height 10 mm
Package Level 1 Gross Weight 0.13 kg
Package Level 1 EAN 7320500307762
Shipping weight 0.4 kg
Ships from Türkiye
Dispatch 17 Nov
Stock In stock

Source: manufacturer data · Last verified: 30 Oct 2026

Documents

Documents for 1SFA611610R1010

No documents are on file for this part yet.

Ask us for the datasheet
Certifications

Certifications and standards

  • CE
  • RoHS
  • UKCA
  • CCC
Quick answers

Questions about the MCB-01

Which supply voltage is MCB-01 rated for?

The rated operational voltage of MCB-01 is 690 V AC.

What is the HS code of MCB-01 for customs?

The tariff (HS) code on file for MCB-01 is 8536508090.

What is the EAN of MCB-01?

The EAN (GTIN) of MCB-01 is 7320500544341.

Where does MCB-01 ship from, and how fast?

MCB-01 ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
