- Part number
- 1SFA611400R1005
- Model no
- ML1-100W
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
Description
About the ML1-100W
About the ML1-100W

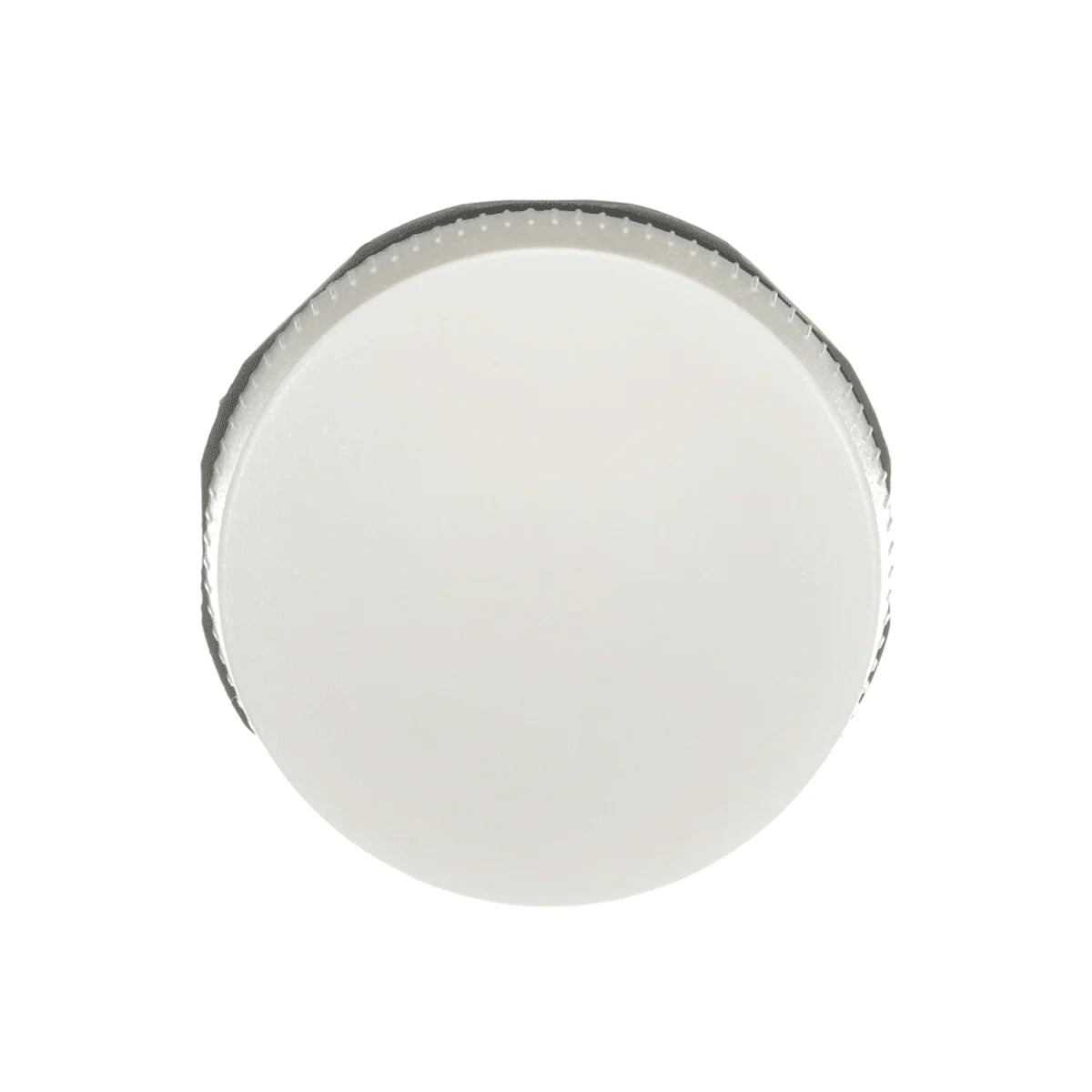

The ABB ML1-100W (SKU: 1SFA611400R1005) is a white pilot light from the ABB ML1 series, designed for clear visual status indication on industrial control panels and automation equipment. Engineered for reliable, long-service operation in demanding environments, the ML1-100W delivers consistent performance and complies with major international safety and environmental standards.
Certifications & Standards
- CE: Complies with European Union safety, health, and environmental protection requirements
- cULus: Listed by Underwriters Laboratories for both Canadian and US markets
- RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
- REACH: Compliant with EU REACH regulation on chemical substances
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
- UKCA: UK Conformity Assessed — meets Great Britain market requirements post-Brexit
- DNV/GL: Approved by DNV GL for marine and offshore applications
Applications & Use Cases
- Control panel status indication in manufacturing and process automation
- Machine tool operator interfaces and HMI panels
- Marine and offshore control systems (DNV/GL approved)
- Building automation and HVAC control cabinets
- Motor control centers (MCCs) and switchgear panels
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Weight | 0.018 kg |
Technical 4
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | White |
| Illumination | Illuminated |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 40 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611400R1005 |
|---|---|
| Type designation | ML1-100W |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500306192 |
| eCl@ss | 27371211 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000223 - Front element for indicator light |
|---|---|
| ETIM 7 | EC000223 - Front element for indicator light |
| eClass | V11.0 : 27371211 |
| UNSPSC | 39121534 |
| E-Number (Sweden) | 3716205 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.018 kg |
| Package Level 1 EAN | 7320500306192 |
| Shipping weight | 0.018 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611400R1005
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the ML1-100W
What is the HS code of ML1-100W for customs?
The tariff (HS) code on file for ML1-100W is 8536619090.
What is the EAN of ML1-100W?
The EAN (GTIN) of ML1-100W is 7320500306192.
Where does ML1-100W ship from, and how fast?
ML1-100W ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
