- Part number
- 1SFA611400R1003
- Model no
- ML1-100Y
In stock · 50+
Dispatch
Planned dispatch date. We aim to ship within 1 business day. Depending on warehouse workload it can take 2–3 business days.
· From Türkiye
0
Description
About the ML1-100Y
About the ML1-100Y

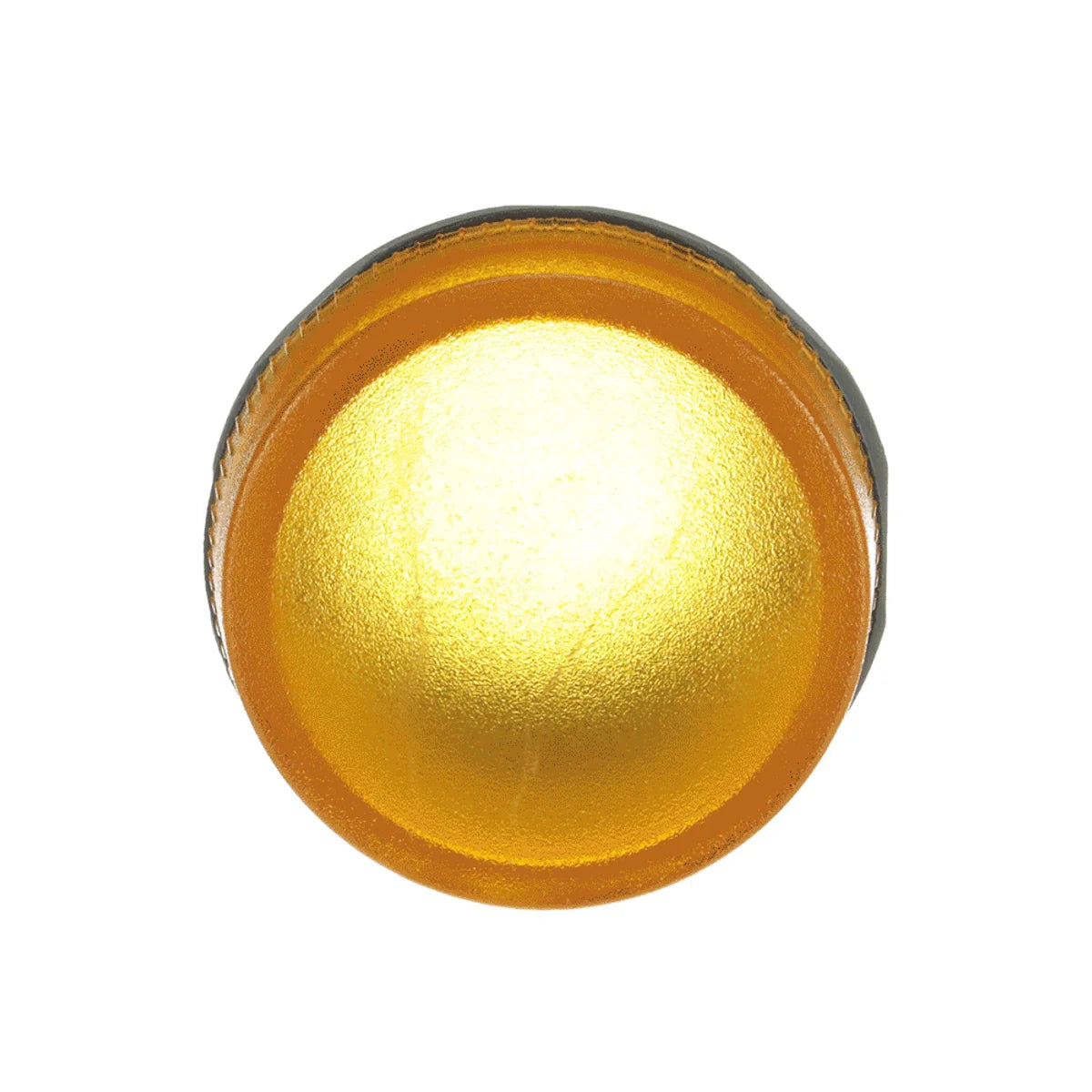

The ABB ML1-100Y (SKU: 1SFA611400R1003) is a Yellow Pilot Light from the ML1 series, designed for visual signal indication in control panels, switchgear, and industrial automation systems. The ML1-100Y delivers reliable, high-visibility status indication and is built to ABB's exacting quality standards, making it a trusted choice for engineers and panel builders worldwide.
Certifications & Standards
- DNV/GL: Approved for marine and offshore applications to Det Norske Veritas / Germanischer Lloyd standards
- REACH: Compliant with EU REACH regulation on chemical substances
- RoHS: Compliant with EU Restriction of Hazardous Substances Directive
- WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive
- cULus: Listed to Canadian and US safety standards by Underwriters Laboratories
- CE: Meets European conformity requirements for electrical equipment
- UKCA: UK Conformity Assessed — approved for sale in Great Britain post-Brexit
Applications & Use Cases
- Control panel status indication in industrial machinery and automation systems
- Switchgear and motor control centres (MCC) for operational status signalling
- Marine and offshore control systems (DNV/GL approved)
- Process plants, HVAC systems, and building automation panels
- OEM machine builders requiring compact, certified pilot devices
Specification
Full specification
Dimensions 4
| Product Net Width | 30 mm |
|---|---|
| Product Net Height | 30 mm |
| Product Net Depth / Length | 33 mm |
| Product Net Weight | 0.018 kg |
Technical 4
| Ambient Air Temperature | Operation -25 ... +70 °C, Storage -40 ... +85 °C |
|---|---|
| Color | Yellow |
| Illumination | Illuminated |
| Enclosure Type NEMA | Type1, Type12, Type13, Type3R, Type4, Type4X |
Environmental 1
| Degree of Protection | Front IP66 |
|---|
Show all 40 specifications ↓ Show less ↑31 more values in Identification, Material Compliance, External Classifications and Standards, Logistics.
Identification 10
| Part number | 1SFA611400R1003 |
|---|---|
| Type designation | ML1-100Y |
| Brand | ABB |
| Condition | New, factory sealed |
| Source | ABB and its authorised distributors |
| Warranty | Manufacturer warranty |
| EAN | 7320500306178 |
| eCl@ss | 27371211 |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 8536619090 |
Material Compliance 6
| REACH Declaration | 2CMT2022-006479 |
|---|---|
| RoHS Declaration | 2CMT2022-006498 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006523 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | Product Not in WEEE Scope |
External Classifications and Standards 5
| ETIM 6 | EC000223 - Front element for indicator light |
|---|---|
| ETIM 7 | EC000223 - Front element for indicator light |
| eClass | V11.0 : 27371211 |
| UNSPSC | 39121534 |
| E-Number (Sweden) | 3716203 |
Logistics 10
| Package Level 1 Units | bag 1 piece |
|---|---|
| Package Level 1 Width | 110 mm |
| Package Level 1 Depth / Length | 150 mm |
| Package Level 1 Height | 30 mm |
| Package Level 1 Gross Weight | 0.018 kg |
| Package Level 1 EAN | 7320500306178 |
| Shipping weight | 0.018 kg |
| Ships from | Türkiye |
| Dispatch | 17 Nov |
| Stock | In stock |
Source: manufacturer data · Last verified: 30 Oct 2026
Documents
Documents for 1SFA611400R1003
No documents are on file for this part yet.
Ask us for the datasheet
Certifications
Certifications and standards
- CE
- RoHS
- UKCA
Quick answers
Questions about the ML1-100Y
What is the HS code of ML1-100Y for customs?
The tariff (HS) code on file for ML1-100Y is 8536619090.
What is the EAN of ML1-100Y?
The EAN (GTIN) of ML1-100Y is 7320500306178.
Where does ML1-100Y ship from, and how fast?
ML1-100Y ships from Türkiye. Shipping calculated at checkout · import duties and taxes paid on arrival. Stock items are dispatched within 1–2 business days.
