ABB 1SEP619690R0001 CS-ZLBM/ZHBM00-L86 Cable Shroud Switch Disconnector Accessory

% $-4.51

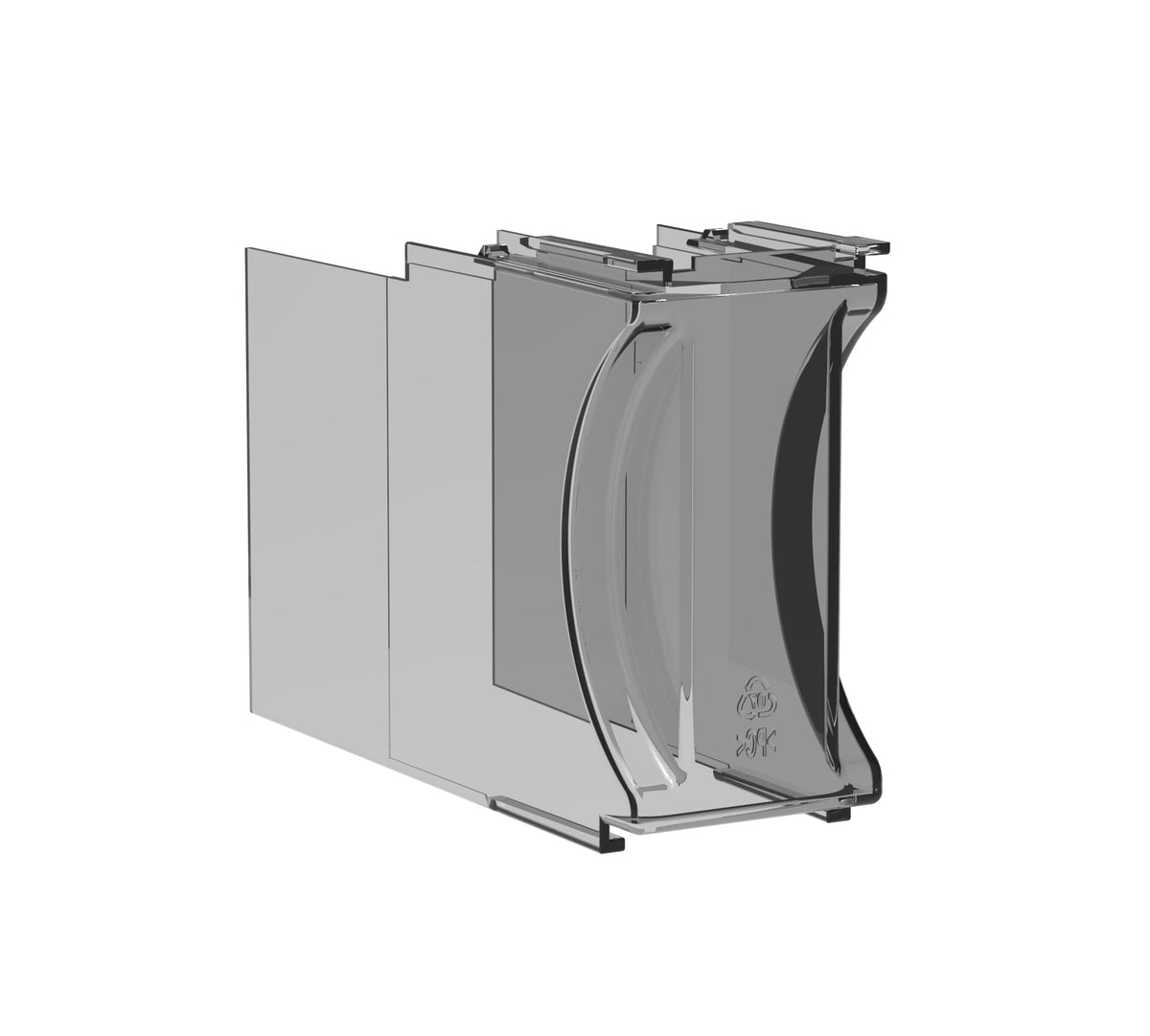

ABB 1SEP619690R0001 CS-ZLBM00 L86 Cable Shroud Inline II Switch Disconnector Accessory
ABB 1SEP619690R0001 CS-ZLBM00 L86 Cable Shroud Inline II Switch Disconnector Accessory

ABB 1SEP619690R0001 CS-ZLBM/ZHBM00-L86 Cable Shroud Switch Disconnector Accessory

Brand: ABB
Reference No: 1SEP619690R0001
Catalog No: CS-ZLBM/ZHBM00-L86
Series: Inline II
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SEP619690R0001 CS-ZLBM/ZHBM00-L86 is a cable shroud sized for an 86 mm cable run on ZLBM00 and ZHBM00 Inline II fuse switch disconnectors. Fitted after the cables are terminated, it covers the live connection point to prevent accidental contact during panel maintenance. It measures 86 x 160 x 50 mm and weighs 1 kg.

Technical Specifications

SKU 1SEP619690R0001
Brand ABB
Series Inline II
Catalog designation CS-ZLBM/ZHBM00-L86
EAN 7025840090465
Accessory Type Cover
Net Width 86 mm
Net Height 160 mm
Net Depth / Length 50 mm
Net Weight 1 kg

Selection Notes

At 86 mm, this is the compact-depth shroud for cable entries that sit closer to the switch body; use the longer L177 variant instead when the installation needs clearance for a wider cable bend radius or additional lugs. Both lengths fit the same ZLBM00/ZHBM00 housing, so the choice is driven entirely by the cable termination depth on site, not by switch rating.

Technical Details

Short Description
ABB 1SEP619690R0001 CS-ZLBM/ZHBM00-L86 cable shroud, 86 mm, for Inline II switch disconnectors, EAN 7025840090465.
Mounting Type
Cover
Catalog No
CS-ZLBM/ZHBM00-L86
Delivery Date (Days)
30 days
Model Number
CS-ZLBM/ZHBM00-L86
Tariff Code
853890
