ABB 1SEP619209R0001 AMH-ZLBM/ZHBM00-48 A-meter Mounting Set Switch Disconnector Accessory

% $-4.26
ABB 1SEP619209R0001 AMH A-meter Mounting Set Inline II Switch Disconnector Accessory
ABB 1SEP619209R0001 AMH A-meter Mounting Set Inline II Switch Disconnector Accessory

ABB 1SEP619209R0001 AMH-ZLBM/ZHBM00-48 A-meter Mounting Set Switch Disconnector Accessory

Brand: ABB
Reference No: 1SEP619209R0001
Catalog No: AMH-ZLBM/ZHBM00-48
Series: Inline II
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$4.26

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

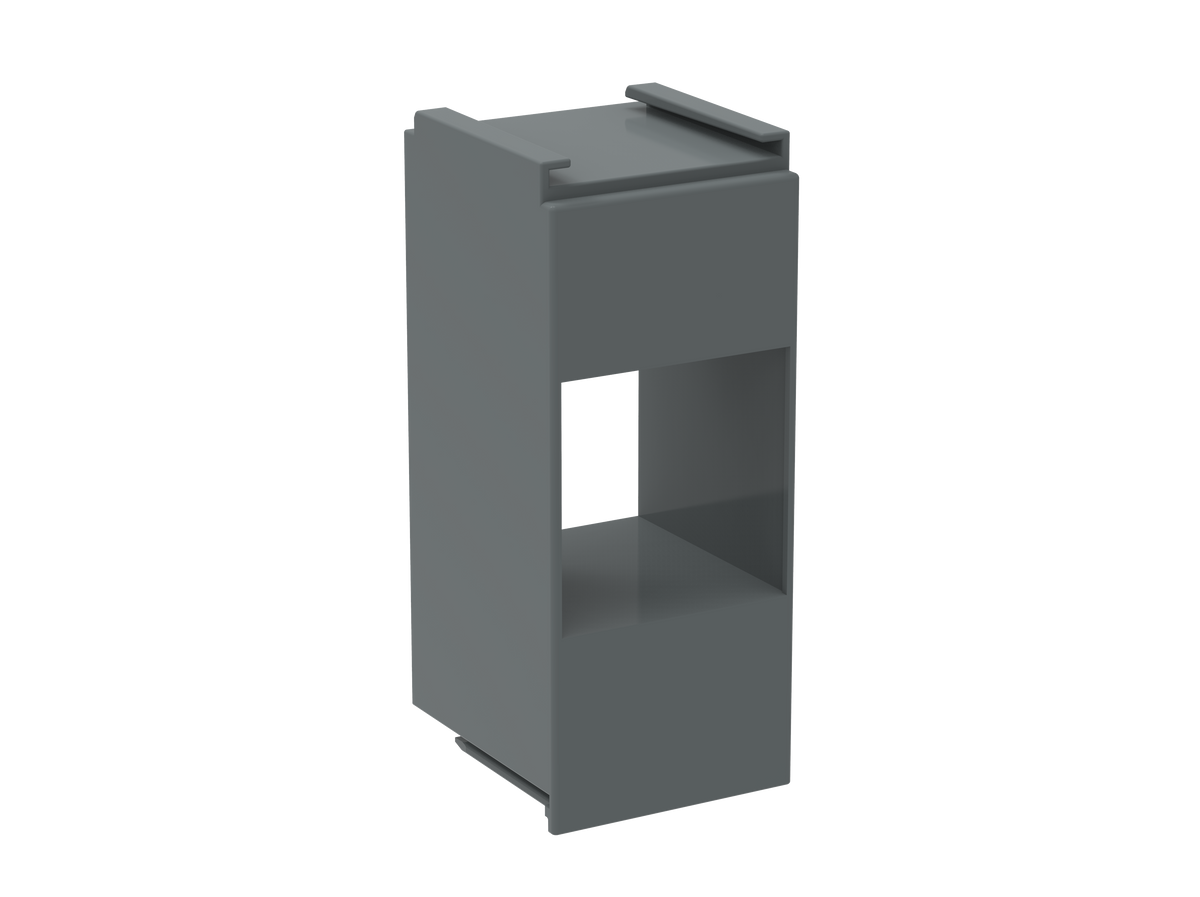

The ABB 1SEP619209R0001 AMH-ZLBM/ZHBM00-48 is a mounting set that fits a 48 x 48 mm panel ammeter onto ZLBM00 and ZHBM00 Inline II fuse switch disconnectors. It is the housing/bracket kit for the A-meter, not the meter itself. The set measures 49 x 118 x 52 mm and weighs 1 kg.

Technical Specifications

SKU 1SEP619209R0001
Brand ABB
Series Inline II
Catalog designation AMH-ZLBM/ZHBM00-48
EAN 7025840088868
Accessory Type Mounting set
Net Width 49 mm
Net Height 118 mm
Net Depth / Length 52 mm
Net Weight 1 kg

Selection Notes

The 48 suffix sets the cut-out size for a standard 48 x 48 mm ammeter; confirm the meter's bezel matches that size before ordering, since the ZLBM/ZHBM00 Inline II frame takes only this housing. It suits panels where local current reading at the switch is wanted, avoiding a separate remote meter enclosure and the extra wiring that a panel-door-mounted instrument would require. Specify the matching current transformer separately, since this set only carries the indicating instrument and does not include the CT.

Technical Details

Short Description
ABB 1SEP619209R0001 AMH-ZLBM/ZHBM00-48 ammeter mounting set for Inline II switch disconnectors, EAN 7025840088868.
Mounting Type
Mounting set
Catalog No
AMH-ZLBM/ZHBM00-48
Delivery Date (Days)
30 days
Model Number
AMH-ZLBM/ZHBM00-48
Tariff Code
853890
