ABB 1SEP619207R0001 CS-ZLBM/ZHBM00-L177 Cable Shroud Switch Disconnector Accessory

% $-3.80
ABB 1SEP619207R0001 CS-ZLBM00 L177 Cable Shroud Inline II Switch Disconnector Accessory
ABB 1SEP619207R0001 CS-ZLBM00 L177 Cable Shroud Inline II Switch Disconnector Accessory

ABB 1SEP619207R0001 CS-ZLBM/ZHBM00-L177 Cable Shroud Switch Disconnector Accessory

Brand: ABB
Reference No: 1SEP619207R0001
Catalog No: CS-ZLBM/ZHBM00-L177
Series: Inline II
Tariff Code (HS): 853890
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$3.80

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

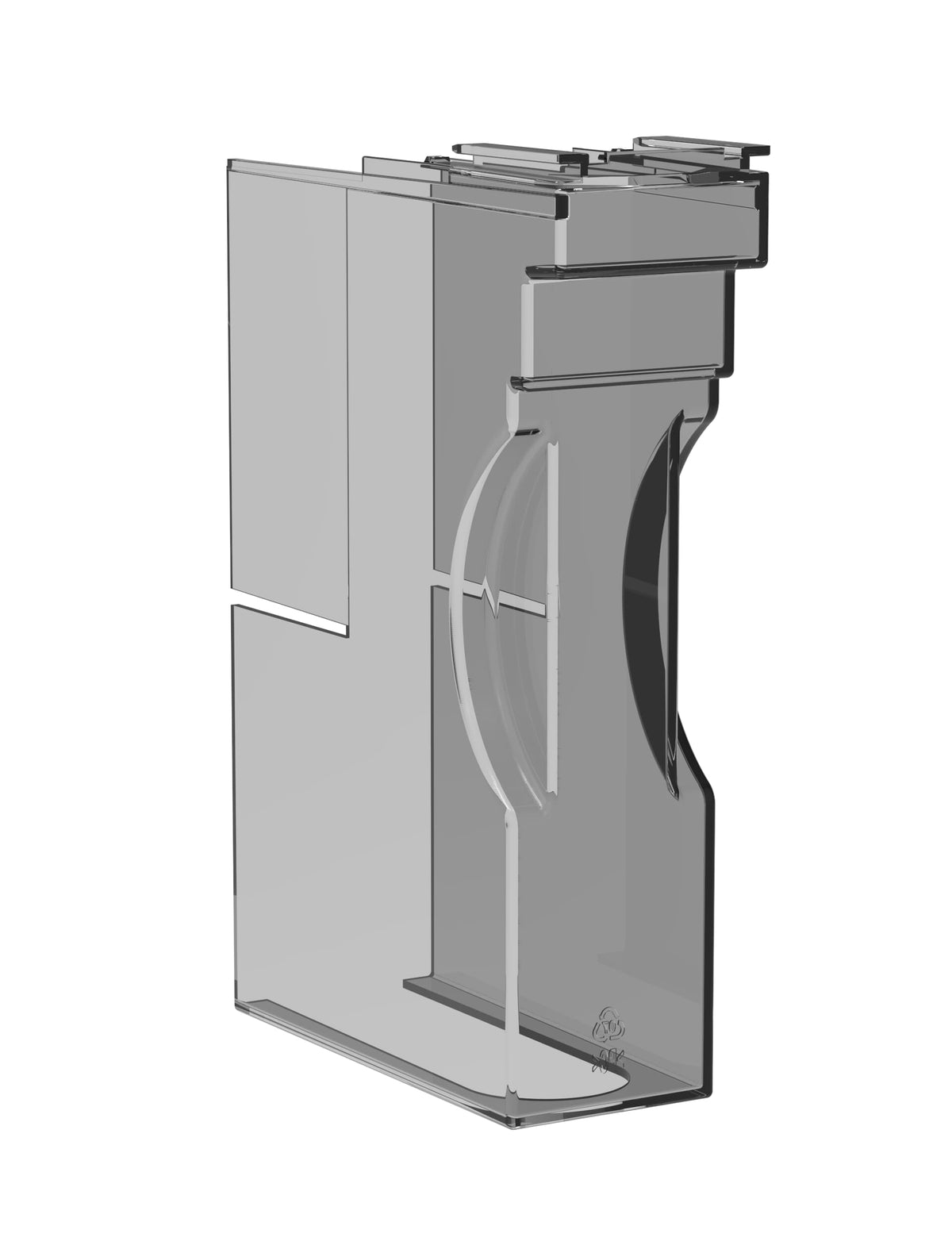

Covering live terminals after cable entry, the ABB 1SEP619207R0001 CS-ZLBM/ZHBM00-L177 is a cable shroud for ZLBM00 and ZHBM00 Inline II fuse switch disconnectors, sized for a 177 mm cable run. It shields the connection point from accidental contact once the incoming or outgoing cables are terminated. Dimensions are 177 x 160 x 50 mm and it weighs 1 kg.

Technical Specifications

SKU 1SEP619207R0001
Brand ABB
Series Inline II
Catalog designation CS-ZLBM/ZHBM00-L177
EAN 7025840088509
Accessory Type Cover
Net Width 177 mm
Net Height 160 mm
Net Depth / Length 50 mm
Net Weight 1 kg

Selection Notes

The L177 suffix is the shroud's length, matched to a specific cable entry depth on the ZLBM00/ZHBM00 Inline II housing; order the shorter L86 variant instead if the installation uses the compact cable entry rather than the extended one this length covers. Fitting the correct length keeps the terminal cover flush, which matters for the enclosure's touch-protection rating.

Technical Details

Short Description
ABB 1SEP619207R0001 CS-ZLBM/ZHBM00-L177 cable shroud, 177 mm, for Inline II switch disconnectors, EAN 7025840088509.
Mounting Type
Cover
Catalog No
CS-ZLBM/ZHBM00-L177
Delivery Date (Days)
30 days
Model Number
CS-ZLBM/ZHBM00-L177
Tariff Code
853890

Downloads
