ABB 1SEP600113R0002 XLP00-1P-2BC 1P 160A EasyLine Fuse Switch Disconnector Baseplate Mount

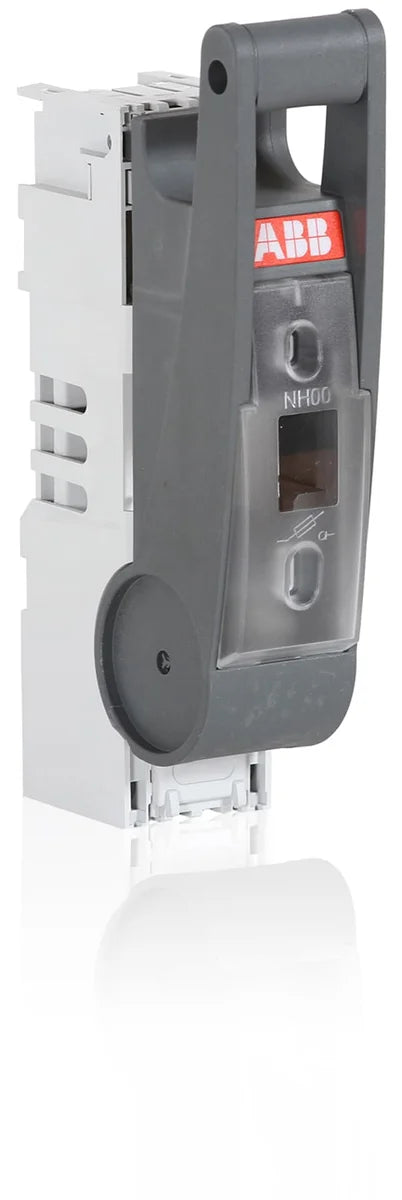

The ABB XLP00-1P-2BC (SKU: 1SEP600113R0002) is a 1-pole 160A fuse switch disconnector from the EasyLine XLP series, designed for safe isolation and overcurrent protection in industrial control panels. The XLP00-1P-2BC features a compact baseplate-mounting design measuring 40 × 88 × 185 mm, making it ideal for space-constrained enclosures. Compliant with IEC 60947-3 and CE certified, this unit delivers reliable fusegear performance for industrial automation and power distribution applications.

Technical Specifications

Certifications & Standards

• CE: Conformité Européenne — meets EU low-voltage and electromagnetic compatibility directives
• RoHS: Restriction of Hazardous Substances — compliant with EU Directive 2011/65/EU
• REACH: Registration, Evaluation, Authorisation and Restriction of Chemicals — EU REACH regulation compliant
• IEC 60947-3 / GB/T 14048.3: International and Chinese national standard for switches, disconnectors, and fuse-combination units
• IEC 60947: Low-voltage switchgear and controlgear international standard
• WEEE: Waste Electrical and Electronic Equipment Directive — correctly classified for end-of-life recycling

Applications & Use Cases

• Industrial control panels requiring safe fused isolation of single-phase circuits up to 160 A
• Motor branch circuit protection in manufacturing and process automation environments
• Power distribution boards where compact baseplate-mounted fusegear is required
• Machine building applications demanding IEC 60947-3 compliant disconnection means
• Maintenance isolation points in industrial automation and control systems
