ABB 1SEP408149R0002 CT-ZLBM123-200/5-1-BB 3.75VA Rear-Side Current Transformer

% $-145.59

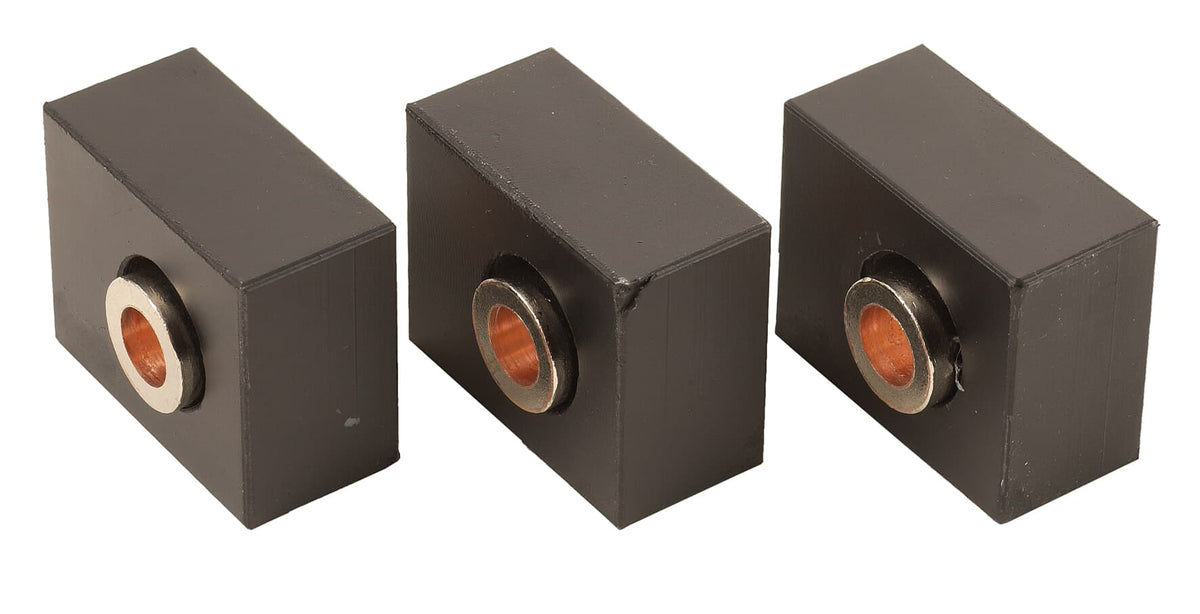

ABB 1SEP408149R0002 CT-ZLBM123 200-5A Current Transformer Switch Accessory
ABB 1SEP408149R0002 CT-ZLBM123 200-5A Current Transformer Switch Accessory

ABB 1SEP408149R0002 CT-ZLBM123-200/5-1-BB 3.75VA Rear-Side Current Transformer

Brand: ABB
Reference No: 1SEP408149R0002
Catalog No: CT-ZLBM123-200/5-1-BB
Series: Fuse Switch Disconnectors Accessories
Tariff Code (HS): 850431
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$145.59

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

A 200/5 A, class 1 rear-side current transformer kit, the ABB 1SEP408149R0002 CT-ZLBM123-200/5-1-BB is built for the ZLBM123 Inline fuse switch disconnector frame and carries a 3.75 VA burden. Installed behind the switch, it scales the primary current down to 5 A so a standard ammeter or meter can read it directly. Net weight is 1.3 kg.

Technical Specifications

SKU 1SEP408149R0002
Brand ABB
Series Fuse Switch Disconnectors Accessories
Catalog designation CT-ZLBM123-200/5-1-BB
EAN 7025840020998
Accessory Type Current transformer
CT Ratio (Primary/Secondary) 200/5 A
Rated Burden 3.75 VA
Accuracy Class 1
Net Weight 1.3 kg

Selection Notes

Choosing the 200/5 ratio means sizing the CT to the switch's actual load current, not its maximum frame rating, so an oversized ratio loses meter resolution at normal operating currents. This kit is built for the larger ZLBM123 frame, which distinguishes it from the ZLBM00 CT kits in the same family and means the two are not physically interchangeable.

Technical Details

Short Description
ABB 1SEP408149R0002 CT-ZLBM123-200/5-1-BB, 200/5A class 1 rear-side current transformer, EAN 7025840020998.
Mounting Type
Rear-side installation kit
Catalog No
CT-ZLBM123-200/5-1-BB
Delivery Date (Days)
30 days
Model Number
CT-ZLBM123-200/5-1-BB
Tariff Code
850431
