ABB 1SEP408149R0001 CT-ZLBM00-160/5-1-BB 2.5VA Rear-Side Current Transformer

% $-141.16

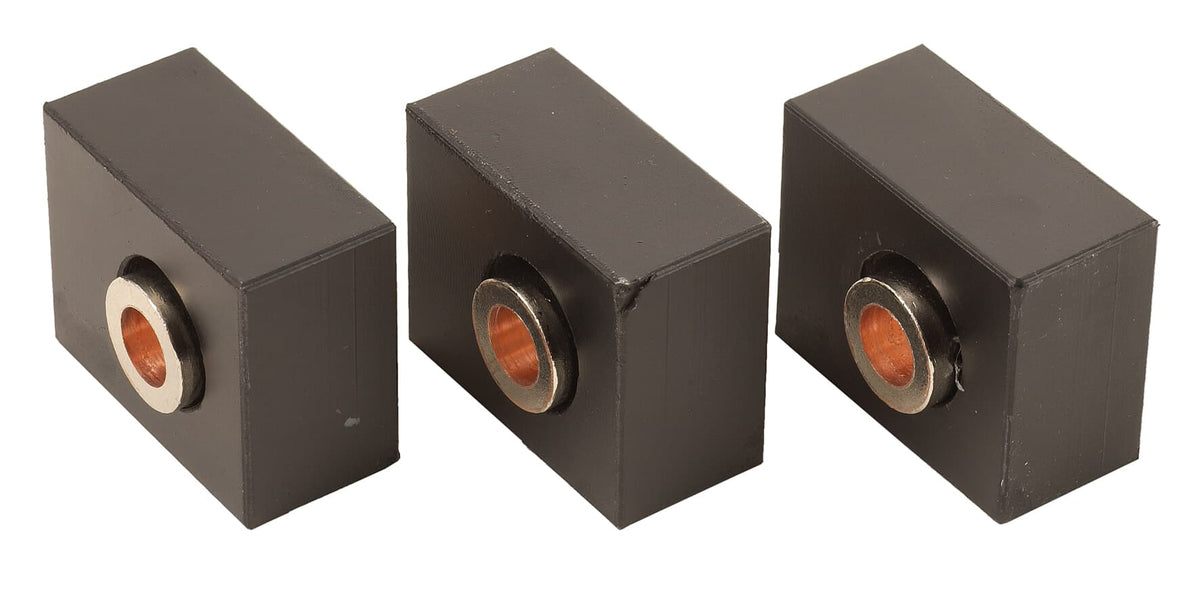

ABB 1SEP408149R0001 CT-ZLBM00 160-5A Current Transformer Switch Accessory
ABB 1SEP408149R0001 CT-ZLBM00 160-5A Current Transformer Switch Accessory

ABB 1SEP408149R0001 CT-ZLBM00-160/5-1-BB 2.5VA Rear-Side Current Transformer

Brand: ABB
Reference No: 1SEP408149R0001
Catalog No: CT-ZLBM00-160/5-1-BB
Series: Fuse Switch Disconnectors Accessories
Tariff Code (HS): 850431
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$141.16

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SEP408149R0001 CT-ZLBM00-160/5-1-BB is a rear-side current transformer installation kit with a 160/5 A ratio, class 1 accuracy and a 2.5 VA burden, built for the ZLBM00 Inline fuse switch disconnector frame. It mounts behind the switch to feed an ammeter or protection relay a scaled-down secondary current. Net weight is 1.3 kg.

Technical Specifications

SKU 1SEP408149R0001
Brand ABB
Series Fuse Switch Disconnectors Accessories
Catalog designation CT-ZLBM00-160/5-1-BB
EAN 7025840020981
Accessory Type Current transformer
CT Ratio (Primary/Secondary) 160/5 A
Rated Burden 2.5 VA
Accuracy Class 1
Net Weight 1.3 kg

Selection Notes

The 160/5 ratio and class 1 accuracy suit standard ammeter metering rather than protection-grade measurement, which would call for a tighter class. It fits the ZLBM00 frame specifically, so it is not interchangeable with the ZLBM123-frame CT kits in the same accessory range; match the CT to the installed switch frame size before ordering, and keep the secondary wiring short to limit burden losses on instruments that expect the full 2.5 VA rating.

Technical Details

Short Description
ABB 1SEP408149R0001 CT-ZLBM00-160/5-1-BB, 160/5A class 1 rear-side current transformer, EAN 7025840020981.
Mounting Type
Rear-side installation kit
Catalog No
CT-ZLBM00-160/5-1-BB
Delivery Date (Days)
30 days
Model Number
CT-ZLBM00-160/5-1-BB
Tariff Code
850431
