ABB 1SDA105011R1 PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI Circuit Breaker Accessory

% $-24.14

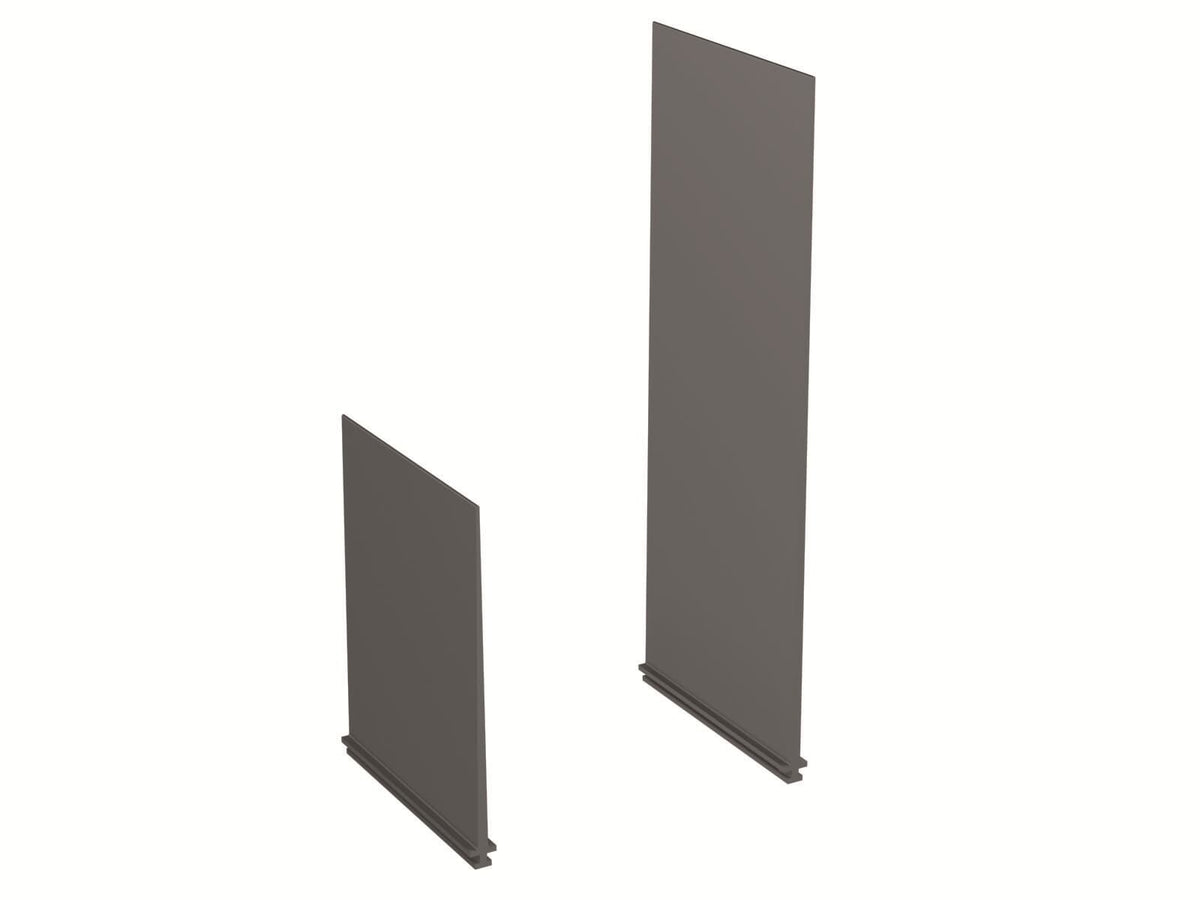

ABB 1SDA105011R1 XT6 4P phase divider partition kit – 6 pieces H=100 mm
ABB 1SDA105011R1 XT6 4P phase divider partition kit – 6 pieces H=100 mm

ABB 1SDA105011R1 PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA105011R1
Catalog No: PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$24.14

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB 1SDA105011R1 is a PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI, a set of six phase-divider partitions sized H=100 mm for four-pole Tmax XT6 moulded case circuit breakers. The kit separates adjacent phase terminals inside the panel to maintain clearance and reduce the risk of phase-to-phase flashover during installation and maintenance. Loose/configurable, EAN 8015644071035.

Technical Specifications

SKU 1SDA105011R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI
EAN 8015644071035
Compatible Frame Tmax XT6
Number of Poles 4P
Partition Height 100 mm
Pieces per Kit 6
Configuration Type Loose or configurable
Net Weight 0.167 kg

Certifications & Standards

  • IEC 60947-2

Selection Notes

Order this kit when fitting out a four-pole XT6 panel with six breaker positions in a single row; the six-piece count matches a full row without under- or over-ordering partitions. The H=100 mm height is specific to the XT6 frame, so confirm the breaker frame size before mixing it with partition kits used on other Tmax XT frames.

Technical Details

Short Description
6-piece H=100 mm phase divider partition kit for ABB Tmax XT6 four-pole moulded case circuit breakers.
Catalog No
PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI
Number of Poles
4P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
PB 100mm 6pcs XT6 4p KIT PA.DI.PH.HI
Tariff Code
853890
