ABB 1SDA105010R1 PB 100mm 4pcs XT6 3p KIT PA.DI.PH.HI Phase Divider Circuit Breaker Accessory

% $-15.94

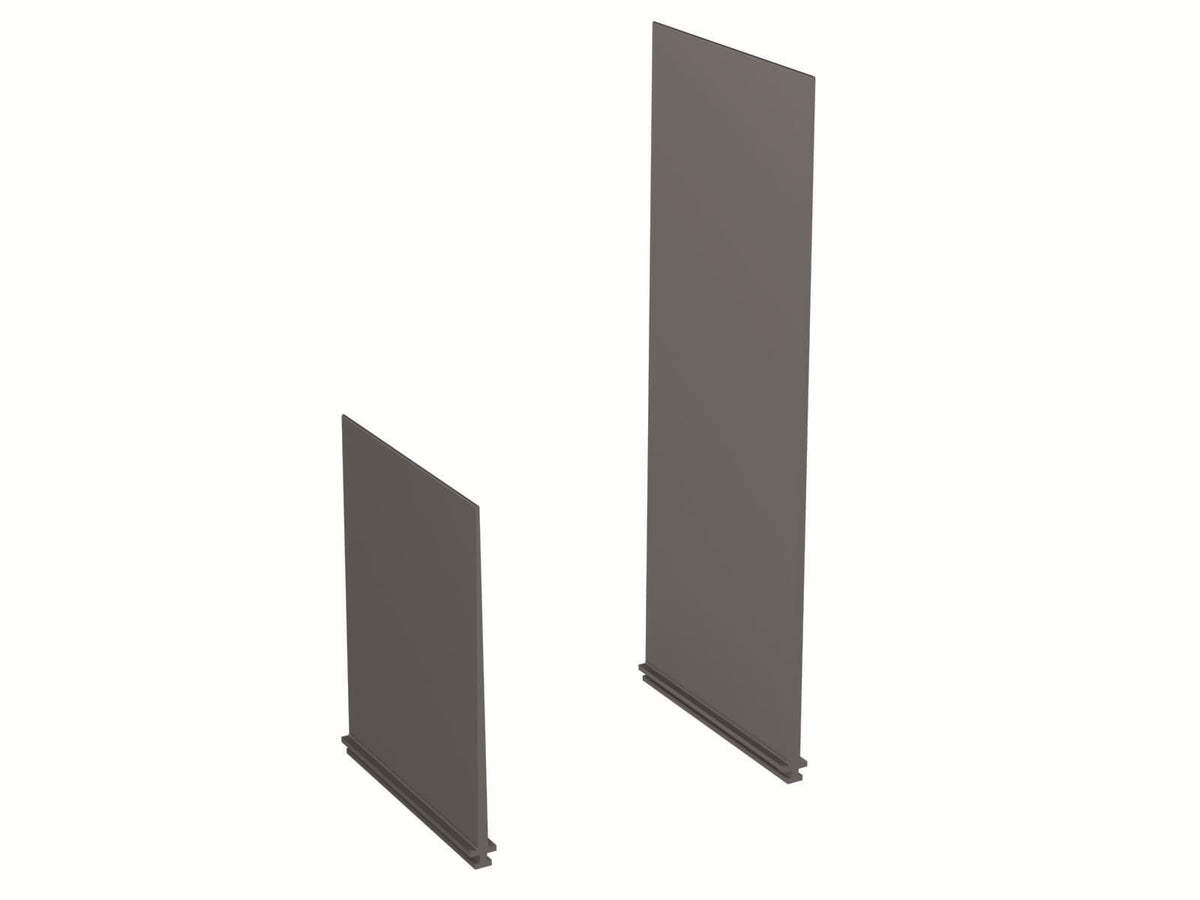

ABB 1SDA105010R1 PB 100mm phase divider partition kit for Tmax XT6, 4pcs 3p
ABB 1SDA105010R1 PB 100mm phase divider partition kit for Tmax XT6, 4pcs 3p

ABB 1SDA105010R1 PB 100mm 4pcs XT6 3p KIT PA.DI.PH.HI Phase Divider Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA105010R1
Catalog No: PB 100mm 4pcs XT6 3p KIT PA.DI.PH.HI
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$15.94

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA105010R1 is a PB 100mm 4pcs XT6 3p phase-divider partition kit for three-pole Tmax XT6 breakers, with a 100 mm partition height. The four-piece kit separates adjacent phases inside the switchboard to limit phase-to-phase arc propagation during a fault. It is supplied loose or configurable, one piece per order for field installation.

Technical Specifications

SKU 1SDA105010R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation PB 100mm 4pcs XT6 3p KIT PA.DI.PH.HI
Compatible Breaker Tmax XT6
Number of Poles 3P
Partition Height 100 mm
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.105 kg
EAN 8015644071028

Certifications & Standards

  • IEC 60947-2

Selection Notes

This kit fits the larger XT6 frame at the same 100 mm partition height as the XT5 version, keeping phase separation height consistent across mixed XT5/XT6 switchboards. Four partitions match a three-pole breaker's pole count exactly. Choose the four-pole six-piece kit instead when the installed breaker has four poles.

Technical Details

Short Description
ABB PB 100mm 4pcs XT6 3p phase divider partition kit for 3-pole Tmax XT6 breakers.
Catalog No
PB 100mm 4pcs XT6 3p KIT PA.DI.PH.HI
Number of Poles
3P
Standards
IEC60947-2
Delivery Date (Days)
30 days
Model Number
PB 100mm 4pcs XT6 3p KIT PA.DI.PH.HI
Tariff Code
853890
