ABB 1SDA104935R1 YO-C XT5-XT6 F/P 380…440 Vac Shunt Trip Release Circuit Breaker Accessory

% $-52.61

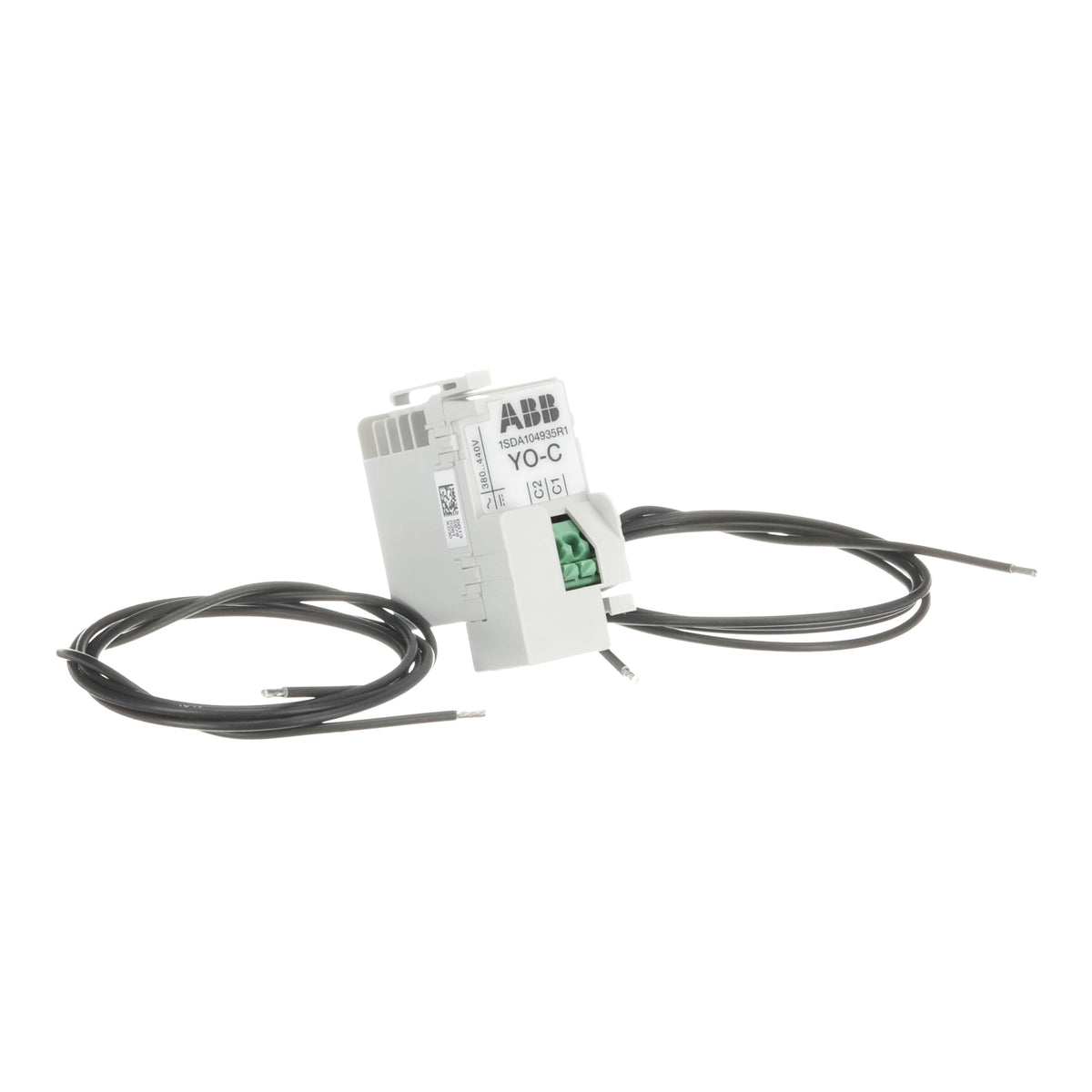

ABB 1SDA104935R1 YO-C XT5-XT6 shunt opening release accessory - fixed/plug-in
ABB 1SDA104935R1 YO-C XT5-XT6 shunt opening release accessory - fixed/plug-in

ABB 1SDA104935R1 YO-C XT5-XT6 F/P 380…440 Vac Shunt Trip Release Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104935R1
Catalog No: YO-C XT5-XT6 F/P 380…440 Vac
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Breaking Type: Shunt Opening Release (YO)
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$52.61

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104935R1 (YO-C XT5-XT6 F/P) is a shunt opening release wired for permanent service, fitted to fixed or plug-in Tmax XT5-XT6 molded case circuit breakers to remotely open the breaker on command from a protection relay or control system. It uses an AC coil rated 380...525 V and weighs 0.17 kg as a loose, configurable accessory.

Technical Specifications

SKU 1SDA104935R1
Brand ABB
Series Accessories for Tmax XT
Extended Product Type YO-C XT5-XT6 F/P 380…440 Vac
EAN 8015644070274
Function Shunt Opening Release (Shunt Trip), wired for permanent service
Compatible Breaker Mounting Fixed / Plug-in (F/P), Tmax XT5-XT6
Rated Voltage (Ur) 380...525 V AC
Current Type AC
Configuration Type Loose or configurable
Net Weight 0.17 kg

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

Like the withdrawable version, YO identifies a shunt opening release for remote tripping rather than a protection function. The F/P designation fits fixed and plug-in Tmax XT5-XT6 breakers, not the withdrawable (W) frame, so confirm the host breaker's mounting type before ordering. The 380...525 V AC coil covers both 400 V and 440 V control circuits without a separate part number.

Technical Details

Short Description
ABB 1SDA104935R1 - YO-C shunt opening release, wired, for fixed/plug-in Tmax XT5-XT6 MCCB, 380-525V AC coil, 0.17 kg.
Catalog No
YO-C XT5-XT6 F/P 380…440 Vac
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
YO-C XT5-XT6 F/P 380…440 Vac
Tariff Code
853890
