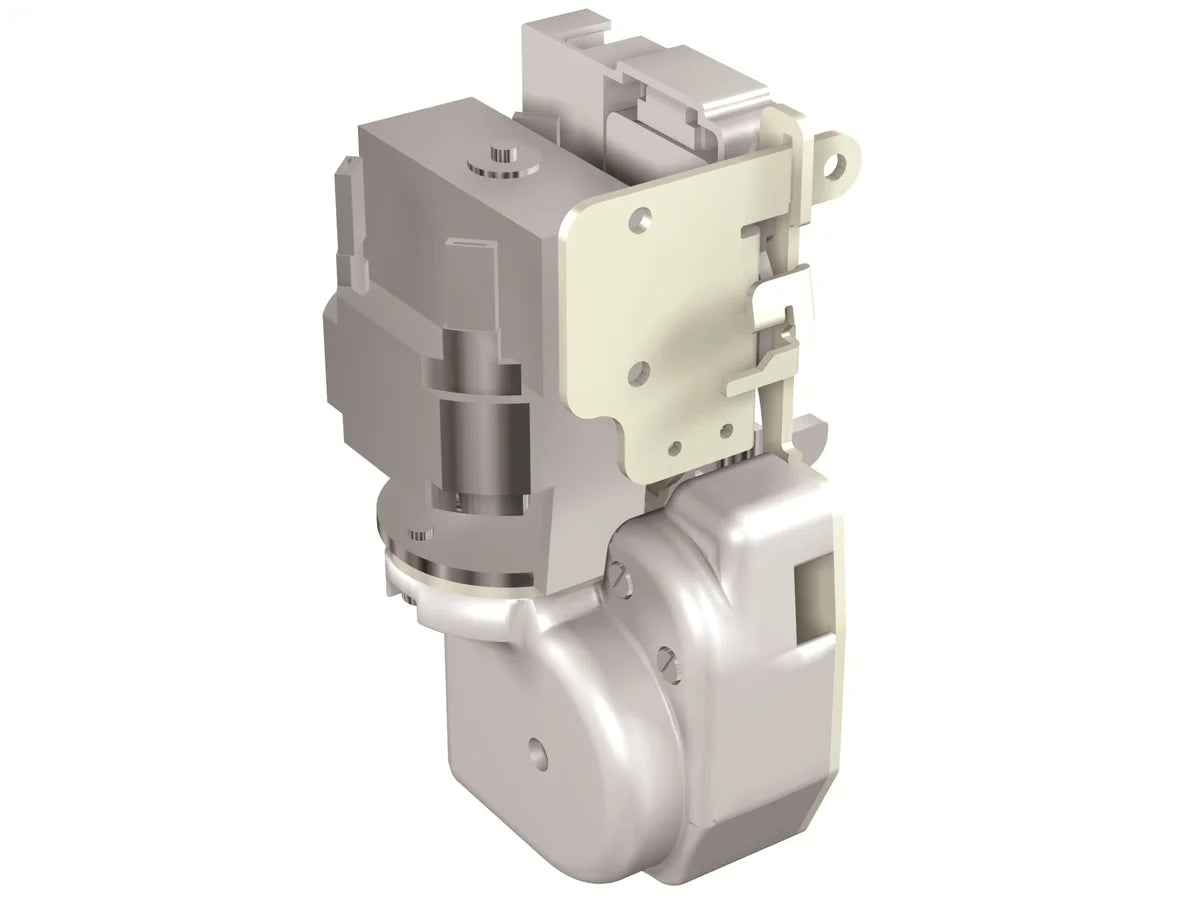

ABB 1SDA104922R1 M XT7M 220-250 V AC/DC Motor Operator for Moulded Case Circuit Breaker Tmax XT7M Series

The ABB 1SDA104922R1 M XT7M 220-250 V AC/DC is a dedicated motor operator designed for remote electrical operation of ABB Tmax XT7M series power circuit-breakers. The M XT7M 220-250 V AC/DC enables automated opening and closing of the circuit-breaker via a control voltage of 220–250 V AC or DC, making it ideal for remote switching, automation, and SCADA-integrated power distribution systems. Compact and robust, it measures 200 × 130 × 80 mm and weighs 2.2 kg, fitting seamlessly into industrial control panel assemblies.

Technical Specifications

Certifications & Standards

• RoHS: Compliant with the Restriction of Hazardous Substances Directive
• REACH: Compliant with EU REACH chemical regulation requirements
• EU Directive 2011/65/EU & Amendment 2015/863 (July 22, 2019): Meets the updated RoHS2 substance restrictions including SVHC amendments
• IEC 60947-2 / UL 489: Designed and tested in accordance with international and North American circuit-breaker accessory standards
• IEC 60947: Compliant with the IEC low-voltage switchgear and controlgear standard series
• CE: Carries CE marking confirming conformity with applicable EU directives
• WEEE: Registered under the Waste Electrical and Electronic Equipment Directive for responsible end-of-life disposal

Applications & Use Cases

• Remote electrical opening and closing of ABB Tmax XT7M power circuit-breakers in MV/LV switchgear panels
• Integration with SCADA, BMS, and industrial automation systems for unmanned substation control
• Motor control centres (MCCs) requiring automated power distribution management
• Generator and transformer protection switchboards where local manual operation is impractical
• Process industries including oil & gas, water treatment, and manufacturing requiring reliable remote switching
