ABB 1SDA104796R1 AUX-C 2Q+1SY 250V AC/CC XT5-XT6 W 3 CO Contacts Circuit Breaker Accessory

% $-67.51

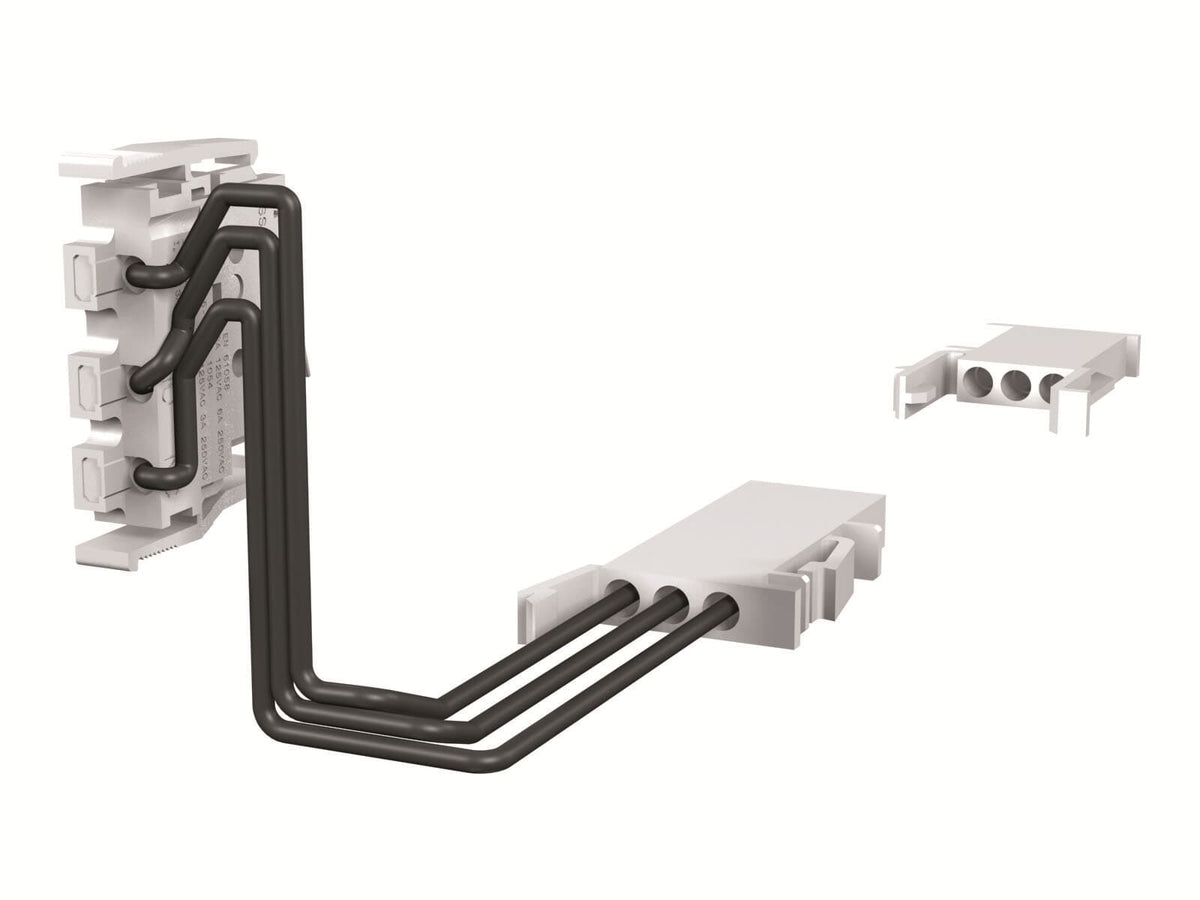

ABB 1SDA104796R1 AUX-C 2Q+1SY auxiliary contact for Tmax XT5-XT6 breaker
ABB 1SDA104796R1 AUX-C 2Q+1SY auxiliary contact for Tmax XT5-XT6 breaker

ABB 1SDA104796R1 AUX-C 2Q+1SY 250V AC/CC XT5-XT6 W 3 CO Contacts Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104796R1
Catalog No: AUX-C 2Q+1SY 250V AC/CC XT5-XT6 W
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Rated Voltage: 250 V AC
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$67.51

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104796R1 is an AUX-C 2Q+1SY auxiliary contact accessory cabled for withdrawable Tmax XT5 and XT6 circuit breakers. It supplies three AC changeover (SPDT) contacts rated at 250 V, combining two breaker-position signals with one tripped-indication contact for panel monitoring. The block ships loose or configurable, in single-piece order quantities for field wiring.

Technical Specifications

SKU 1SDA104796R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation AUX-C 2Q+1SY 250V AC/CC XT5-XT6 W
Compatible Breakers Tmax XT5, XT6 (Withdrawable)
Number of Auxiliary Contacts CO (SPDT) 3
Current Type AC
Rated Voltage 250 V
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.085 kg
EAN 8015644068882

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

Three CO contacts on the 1SDA104796R1 cover two breaker-position signals and one trip indication from a single accessory slot, cutting the wiring count on panels that monitor both open/closed state and fault trips. The 250 V AC rating matches standard control-circuit voltages used on XT5/XT6 switchboards. Pick a single-contact block instead when only a trip-indication signal is needed.

Technical Details

Short Description
ABB AUX-C 2Q+1SY auxiliary contact block for XT5-XT6 withdrawable breakers, 3 CO contacts, 250 V AC.
Rated Voltage (VAC)
250 V AC
Catalog No
AUX-C 2Q+1SY 250V AC/CC XT5-XT6 W
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
AUX-C 2Q+1SY 250V AC/CC XT5-XT6 W
Tariff Code
853890
