ABB 1SDA104737R1 KIT EF XT6 4pcs 800A 4-Pole Circuit Breaker Accessory

% $-219.37

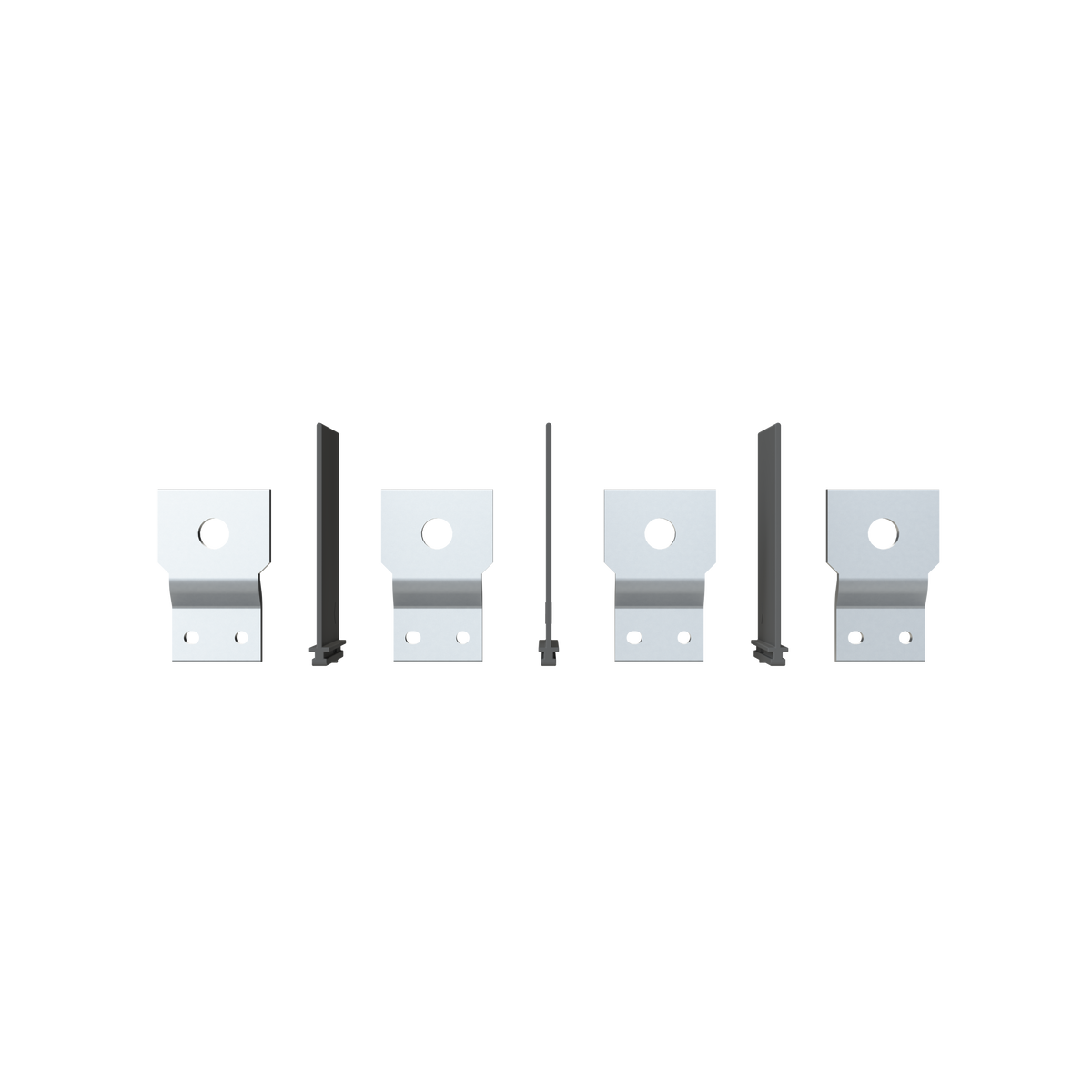

ABB 1SDA104737R1 KIT EF XT6 extended front terminal kit, 4pcs 800A
ABB 1SDA104737R1 KIT EF XT6 extended front terminal kit, 4pcs 800A

ABB 1SDA104737R1 KIT EF XT6 4pcs 800A 4-Pole Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104737R1
Catalog No: KIT EF XT6 4pcs 800A
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$219.37

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104737R1 is a KIT EF XT6 4pcs 800A extended front terminal accessory for four-pole Tmax XT6 moulded case circuit breakers rated at 800 A. Four terminal extensions give every pole added front clearance for busbar or cable-lug connections. The kit is supplied loose or configurable in single-piece order quantities.

Technical Specifications

SKU 1SDA104737R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation KIT EF XT6 4pcs 800A
Compatible Breaker Tmax XT6, 800 A, Fixed
Number of Poles 4P
Terminal Connection Type Front Extended
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.617 kg
EAN 8015644068295

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

The 800 A rating sizes the terminal extensions for a lighter busbar cross-section than the 1000 A four-pole kit, matching the lower-current XT6 frame. All four poles gain the same front clearance, keeping phase spacing uniform on fixed-mount breakers. Choose the 1000 A kit when the installed breaker carries the higher current rating.

Technical Details

Short Description
ABB KIT EF XT6 4pcs 800A extended front terminal kit for 4-pole Tmax XT6 breakers.
Mounting Type
Fixed
Catalog No
KIT EF XT6 4pcs 800A
Number of Poles
4P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
KIT EF XT6 4pcs 800A
Tariff Code
853890
