ABB 1SDA104716R1 Kit W MP XT6 800A 4p Withdrawable Conversion Circuit Breaker Accessory

% $-190.60

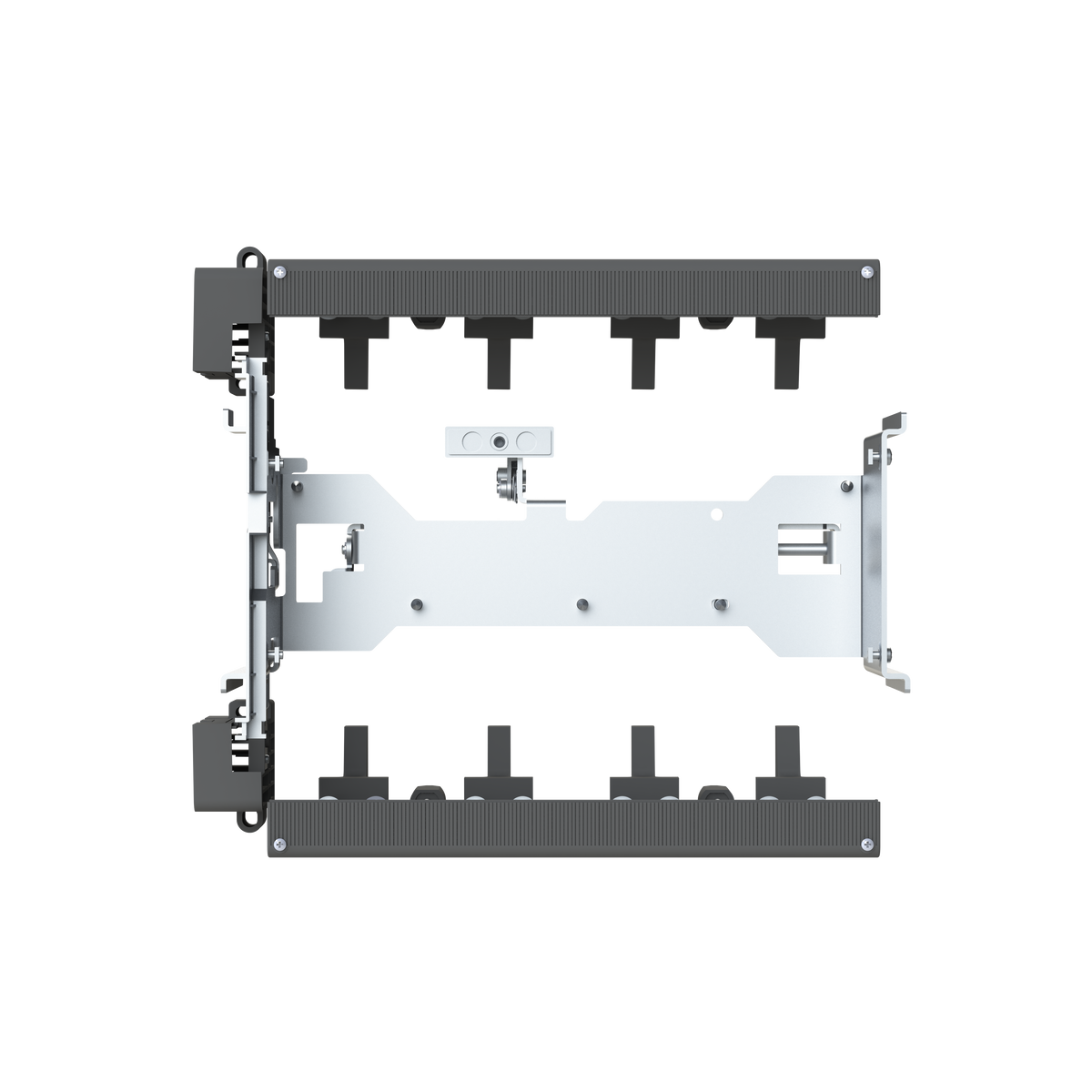

ABB 1SDA104716R1 Kit W MP XT6 withdrawable conversion kit, 800A 4p
ABB 1SDA104716R1 Kit W MP XT6 withdrawable conversion kit, 800A 4p

ABB 1SDA104716R1 Kit W MP XT6 800A 4p Withdrawable Conversion Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104716R1
Catalog No: Kit W MP XT6 800A 4p
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$190.60

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104716R1 is a Kit W MP XT6 800A 4p moving-part conversion kit that converts a four-pole Tmax XT6 breaker rated 800 A to withdrawable mounting. Rated current In and uninterrupted current Iu both hold at 800 A after conversion. The kit is supplied loose or configurable, one piece per order.

Technical Specifications

SKU 1SDA104716R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation Kit W MP XT6 800A 4p
Number of Poles 4P
Rated Current In 800 A
Rated Uninterrupted Current Iu 800 A
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.302 kg
EAN 8015644068080

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

This is the only withdrawable moving-part kit in the family sized for the larger XT6 frame, carrying 800 A across all four poles versus the 400-630 A XT5 kits. Racking the breaker to an isolated position keeps busbar connections undisturbed during maintenance. Choose a plug-in XT6 kit instead when full front removal is preferred over in-place isolation.

Technical Details

Short Description
ABB Kit W MP XT6 800A 4p withdrawable moving-part conversion kit for a 4-pole Tmax XT6 breaker.
Mounting Type
Withdrawable
Catalog No
Kit W MP XT6 800A 4p
Number of Poles
4P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
Kit W MP XT6 800A 4p
Tariff Code
853890
