ABB 1SDA104708R1 Kit P MP XT5 400A 4p Plug-In Conversion Circuit Breaker Accessory

% $-101.99

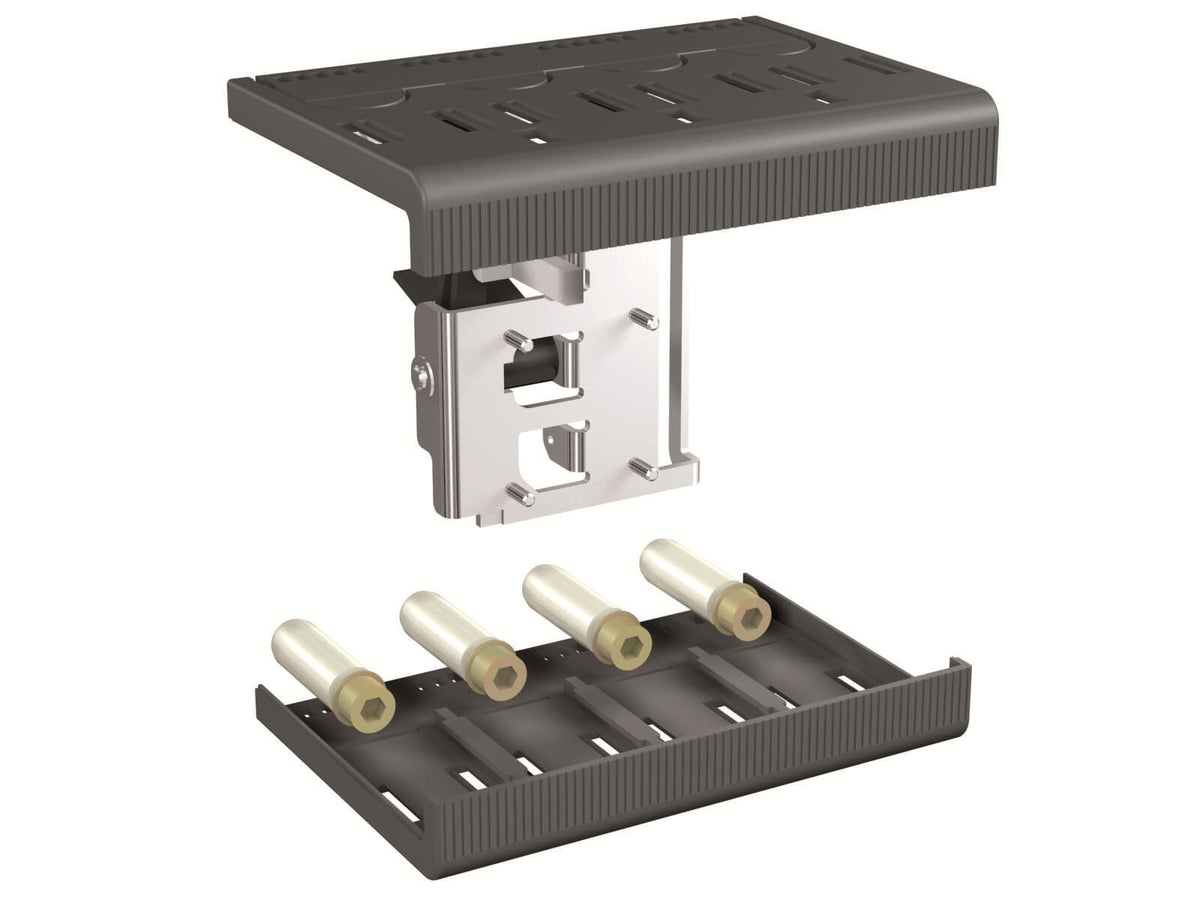

ABB 1SDA104708R1 Kit P MP XT5 plug-in conversion kit, 400A 4p
ABB 1SDA104708R1 Kit P MP XT5 plug-in conversion kit, 400A 4p

ABB 1SDA104708R1 Kit P MP XT5 400A 4p Plug-In Conversion Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104708R1
Catalog No: Kit P MP XT5 400A 4p
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$101.99

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104708R1 is a Kit P MP XT5 400A 4p moving-part conversion kit that converts a four-pole Tmax XT5 breaker rated 400 A to plug-in mounting. Rated current In and uninterrupted current Iu both hold at 400 A after conversion, so the four-pole breaker keeps its full rating. The kit is supplied loose or configurable, one piece per order.

Technical Specifications

SKU 1SDA104708R1
Brand ABB
Series Accessories for Tmax XT
Catalog Designation Kit P MP XT5 400A 4p
Number of Poles 4P
Rated Current In 400 A
Rated Uninterrupted Current Iu 400 A
Configuration Type Loose or configurable
Order Multiple 1 piece
Net Weight 0.302 kg
EAN 8056221026765

Certifications & Standards

  • IEC 60947-2
  • UL 489

Selection Notes

Plug-in mounting on this four-pole 400 A kit lets the breaker be removed from the front of the panel for maintenance without disconnecting rear busbars, which a fixed XT5 installation cannot do. Current rating is unchanged at 400 A In/Iu, so there is no trade-off for the added mounting flexibility. Pick the three-pole version instead for a three-pole XT5 breaker.

Technical Details

Short Description
ABB Kit P MP XT5 400A 4p plug-in moving-part conversion kit for a 4-pole Tmax XT5 breaker.
Mounting Type
Plug-In
Catalog No
Kit P MP XT5 400A 4p
Number of Poles
4P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
Kit P MP XT5 400A 4p
Tariff Code
853890
