ABB 1SDA104699R1 XT6 W FP 800A 4p EF EF IEC/UL Withdrawable Circuit Breaker Accessory

% $-455.20

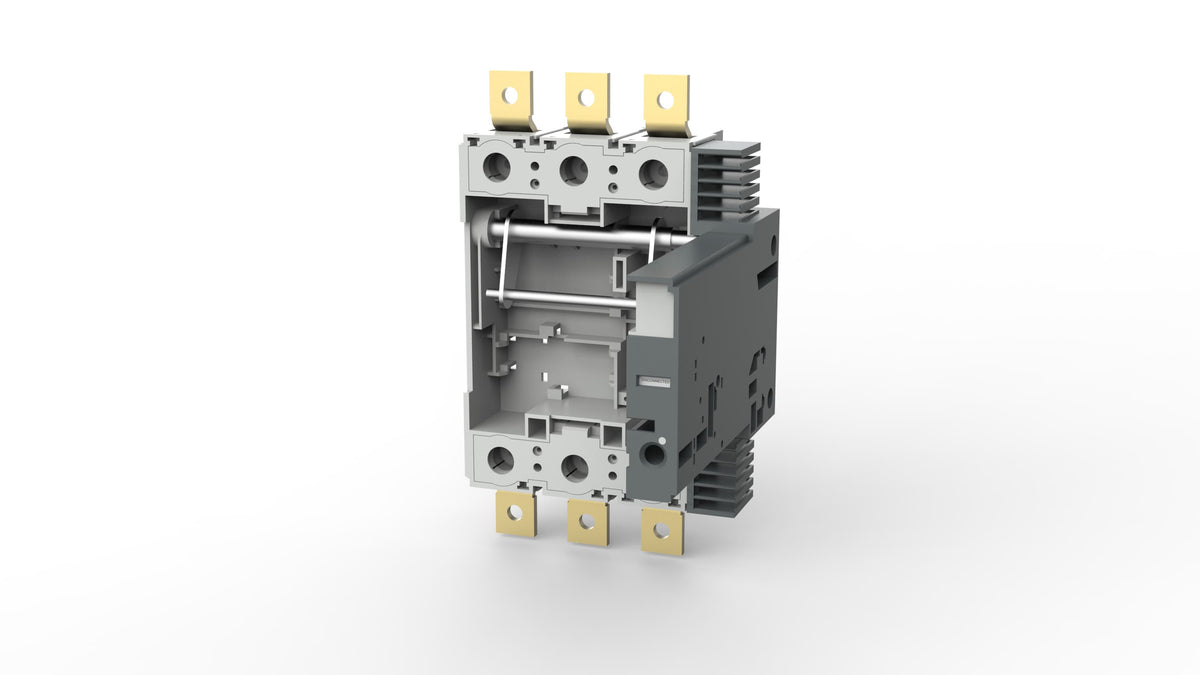

ABB 1SDA104699R1 XT6 Withdrawable Fixed Part - 800A 4P IEC/UL
ABB 1SDA104699R1 XT6 Withdrawable Fixed Part - 800A 4P IEC/UL

ABB 1SDA104699R1 XT6 W FP 800A 4p EF EF IEC/UL Withdrawable Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104699R1
Catalog No: XT6 W FP 800A 4p EF EF IEC/UL
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Rated Voltage: 600 V AC
Poles: 4P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$455.20

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

ABB's 1SDA104699R1 is the four-pole version of the withdrawable fixed part for the Tmax XT6 moulded case circuit breaker, rated 800 A with extended front (EF) terminals and IEC/UL listing. It bolts to the switchboard busbars and carries the disconnecting contacts the four-pole XT6 breaker body racks into for isolation and maintenance.

Technical Specifications

SKU 1SDA104699R1
Brand ABB
Series Tmax XT
Catalog Designation XT6 W FP 800A 4p EF EF IEC/UL
EAN 8015644067915
Sub-type XT6
Configuration Type Loose or configurable
Number of Poles 4P
Rated Current (In) 800 A
Rated Uninterrupted Current (Iu) 800 A
Rated Operational Voltage (Ue) 600 V AC
Rated Frequency 50/60 Hz
Terminal Connection Type Withdrawable Circuit-Breakers, Front Extended
Net Weight 21.7 kg

Certifications & Standards

  • IEC/EN 60947-2
  • UL 489

Selection Notes

Choose the four-pole fixed part over the three-pole 1SDA104696R1 when the neutral conductor must be switched through the XT6 breaker rather than carried on a fixed bar. Both poles counts share the same 800 A rating and 21.7 kg weight, so the choice comes down purely to whether the installation needs a switched or solid neutral.

Technical Details

Short Description
ABB Tmax XT6 withdrawable fixed part, 800 A, 4-pole, extended front terminals, IEC/UL, for XT6 MCCB.
Rated Voltage (VAC)
600 V AC
Mounting Type
Withdrawable
Catalog No
XT6 W FP 800A 4p EF EF IEC/UL
Number of Poles
4P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
XT6 W FP 800A 4p EF EF IEC/UL
Tariff Code
853890
