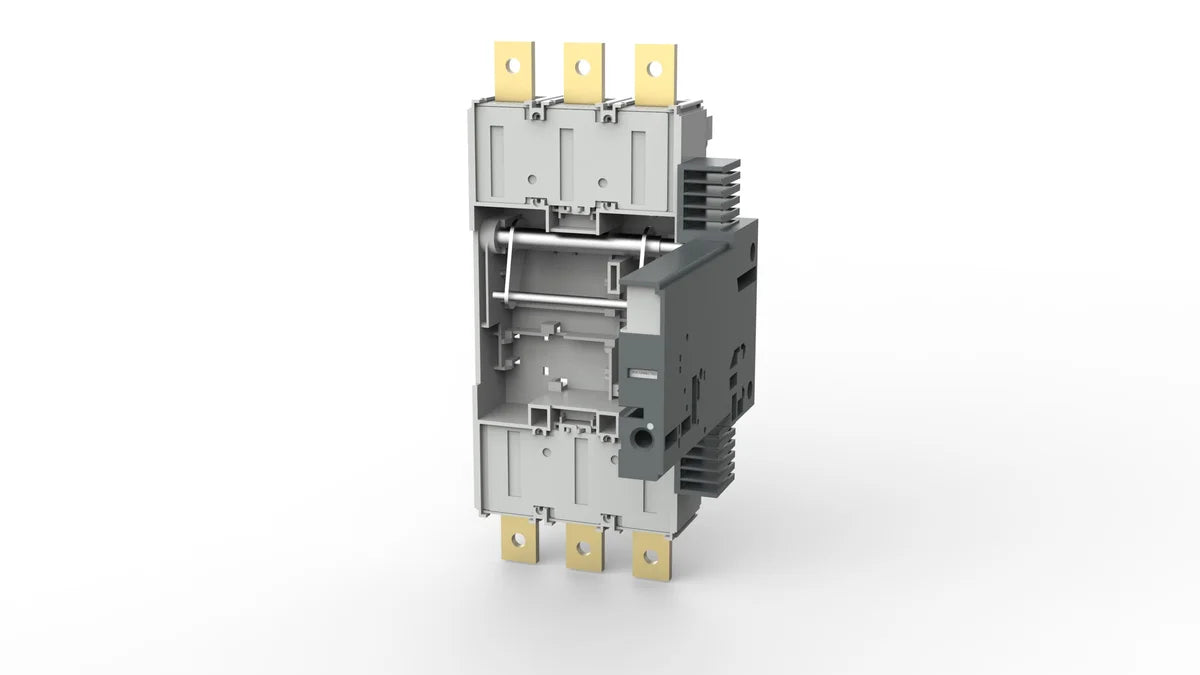

ABB 1SDA104690R1 XT5 W FP 630A 3p EF EF IEC/UL Withdrawable Fixed Part 630A 3-Pole Chassis Part Power Circuit Breaker

The ABB 1SDA104690R1 XT5 W FP 630A 3p EF EF IEC/UL is a withdrawable fixed part (chassis part) for the Tmax XT5 power circuit breaker, rated at 630A across 3 poles. Designed for industrial switchgear assemblies requiring withdrawable mounting configurations, this chassis component is dual-certified to both IEC and UL standards, making it suitable for global power distribution and motor protection applications. It weighs 21.7 kg and is fully compatible with the ABB Tmax XT5 series withdrawable breaker range.

Technical Specifications

Certifications & Standards

• IEC: Compliant with IEC international electrotechnical standards for low-voltage switchgear and controlgear
• UL: UL-listed, confirming compliance with North American safety requirements
• IEC 60947-2 / UL 489: Certified to IEC 60947-2 and UL 489, the primary standards for low-voltage circuit breakers
• IEC 60947: Broader IEC 60947 series compliance covering low-voltage switchgear and controlgear assemblies
• CE: CE marked, confirming compliance with applicable European Union directives
• RoHS: Compliant with EU Restriction of Hazardous Substances Directive (2011/65/EU)
• REACH: Compliant with EU REACH regulation (EC No 1907/2006) on chemical substances
