ABB 1SDA104676R1 XT5 P FP 630A 3p EF EF IEC/UL Plug-In Circuit Breaker Accessory

% $-238.42

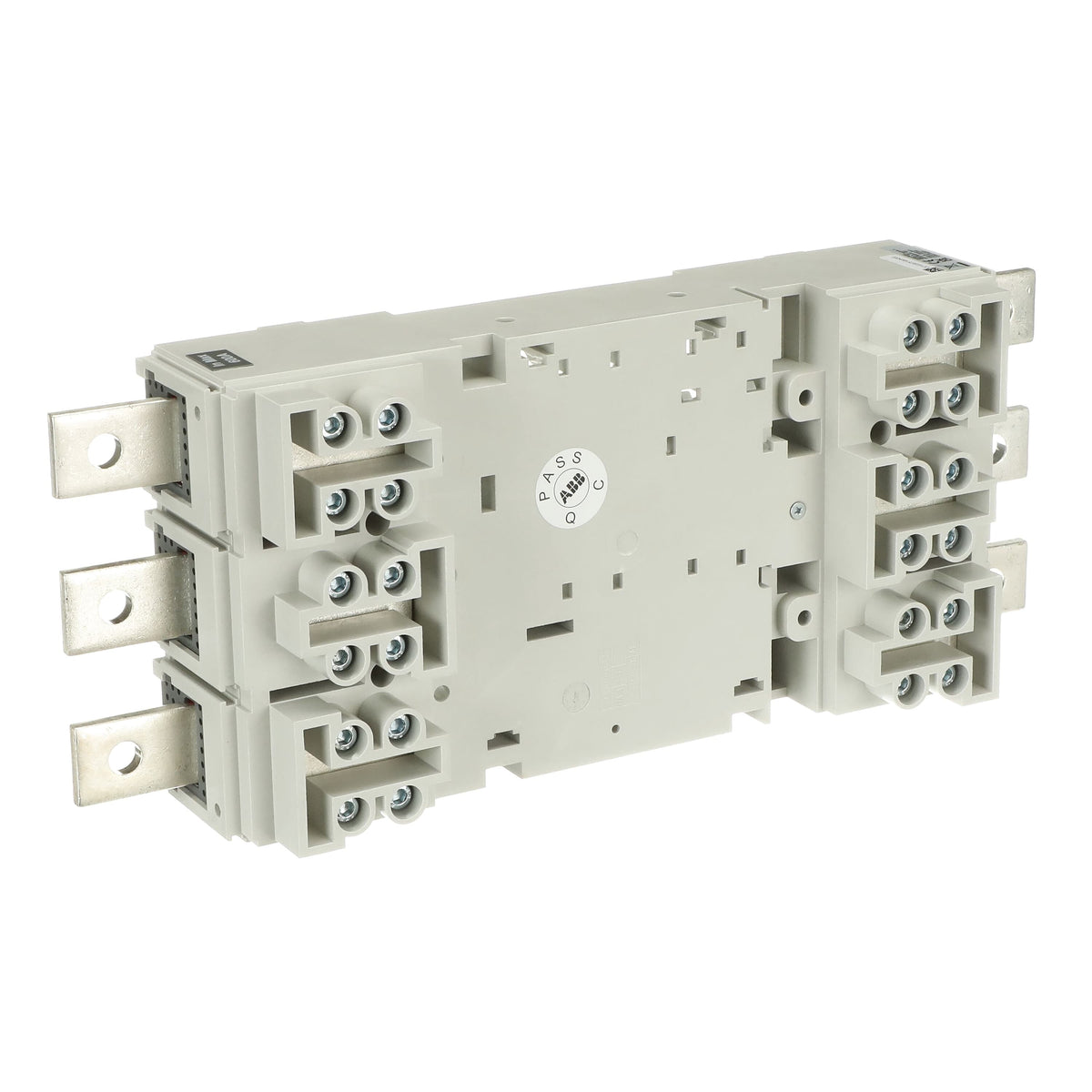

ABB 1SDA104676R1 XT5 Plug-In Fixed Part - 630A 3P IEC/UL
ABB 1SDA104676R1 XT5 Plug-In Fixed Part - 630A 3P IEC/UL

ABB 1SDA104676R1 XT5 P FP 630A 3p EF EF IEC/UL Plug-In Circuit Breaker Accessory

Brand: ABB
Reference No: 1SDA104676R1
Catalog No: XT5 P FP 630A 3p EF EF IEC/UL
Series: Accessories for Tmax XT
Tariff Code (HS): 853890
Rated Voltage: 600 V AC / 600 V DC
Poles: 3P
Stock: 0
Delivery time: 30 business day(s)
Shipping Origin: Türkiye EXW
$238.42

Your purchase is backed by Warranty – learn more.

Hassle-free Returns – learn more.

  • Description

The ABB 1SDA104676R1 is a plug-in fixed part for the Tmax XT5 moulded case circuit breaker, dual-rated 630 A (IEC) / 600 A (UL) across three poles with extended front (EF) terminals. It is the IEC/UL dual-listed counterpart of the plain-IEC fixed part, letting the same busbar mounting serve projects certified to either standard.

Technical Specifications

SKU 1SDA104676R1
Brand ABB
Series Tmax XT
Catalog Designation XT5 P FP 630A 3p EF EF IEC/UL
EAN 8015644067687
Sub-type XT5
Configuration Type Loose or configurable
Number of Poles 3P
Rated Current (In) 600 A
Rated Uninterrupted Current (Iu) 630 A (IEC) / 600 A (UL)
Rated Operational Voltage (Ue) 600 V AC / 600 V DC
Rated Frequency 50/60 Hz
Terminal Connection Type Plug-In Circuit-Breakers, Front Extended
Net Weight 21.7 kg

Certifications & Standards

  • IEC/EN 60947-2
  • UL 489

Selection Notes

Pick this IEC/UL dual-rated fixed part over the IEC-only 400 A version when the project needs UL 489 listing alongside IEC 60947-2, since the dual listing caps the uninterrupted current at 600 A under UL rules even though the IEC rating reaches 630 A. Plug-in (P) mounting keeps the matching XT5 breaker removable for maintenance without disturbing the three-pole busbar wiring behind it.

Technical Details

Short Description
ABB Tmax XT5 plug-in fixed part, 630 A, 3-pole, extended front terminals, IEC/UL, for XT5 MCCB.
Rated Voltage (VAC)
600 V AC / 600 V DC
Mounting Type
Plug-In
Catalog No
XT5 P FP 630A 3p EF EF IEC/UL
Number of Poles
3P
Standards
IEC60947-2, UL489
Delivery Date (Days)
30 days
Model Number
XT5 P FP 630A 3p EF EF IEC/UL
Tariff Code
853890
