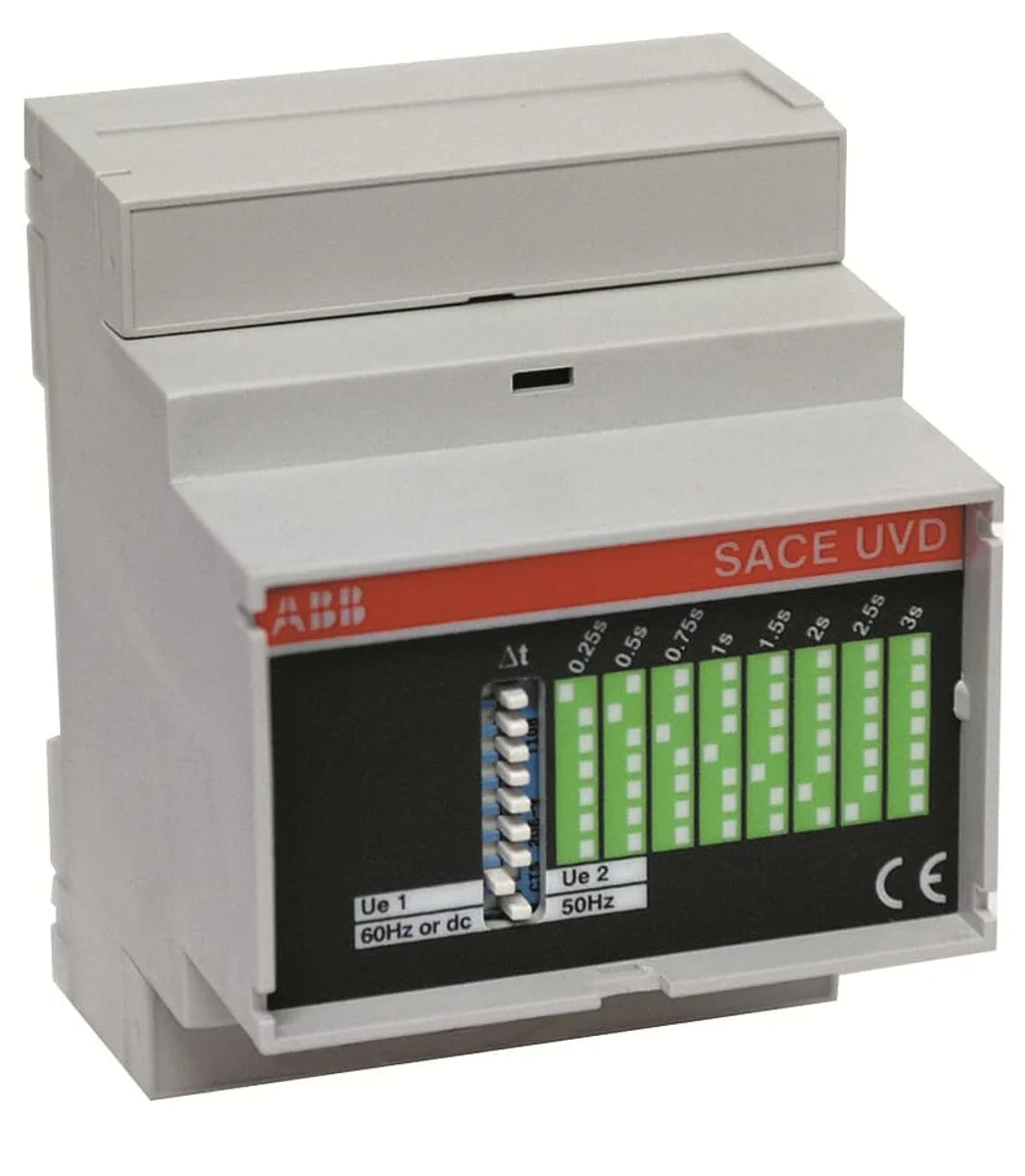

ABB 1SDA101981R1 UVD XT5-XT6 110..125Va.c./d.c. Time Delay Under Voltage Coil Tmax XT

The ABB 1SDA101981R1 UVD XT5-XT6 110..125Va.c./d.c. is a time delay under voltage coil designed for use with ABB Tmax XT5 and XT6 moulded case circuit breakers. This accessory monitors supply voltage and introduces a controlled time delay before tripping the breaker on under-voltage conditions, protecting sensitive industrial equipment from damage caused by voltage dips or loss of supply. Compact and CE-certified, it integrates seamlessly into control panels and industrial automation systems.

Technical Specifications

Certifications & Standards

• CE: Compliant with EU product safety, health, and environmental requirements
• RoHS: Compliant with EU Directive 2011/65/EU on restriction of hazardous substances, including Amendment 2015/863 (July 22, 2019)
• REACH: Compliant with EU REACH regulation on chemical substances
• IEC 60947-2: Meets international standard for low-voltage switchgear — circuit breakers
• WEEE: Compliant with EU Waste Electrical and Electronic Equipment Directive

Applications & Use Cases

• Under-voltage protection with time delay for Tmax XT5 and XT6 circuit breakers in industrial panels
• Motor control centres and distribution boards requiring voltage-dip ride-through functionality
• Industrial automation systems where nuisance tripping on momentary voltage dips must be avoided
• Control panels in manufacturing, process, and building automation environments
